Engine Room

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect heater hose at engine-side, and fit a plug onto hose end to prevent engine coolant leak.
  2. Disconnect ground cable (between vehicle to left cylinder head).
  3. Disconnect battery positive cable harness at vehicle side and temporarily fasten it on engine.
  4. Disconnect A/C piping from A/C compressor, and temporarily fasten it on vehicle with a rope.
  5. Remove engine room harness connectors as shown in the figure.

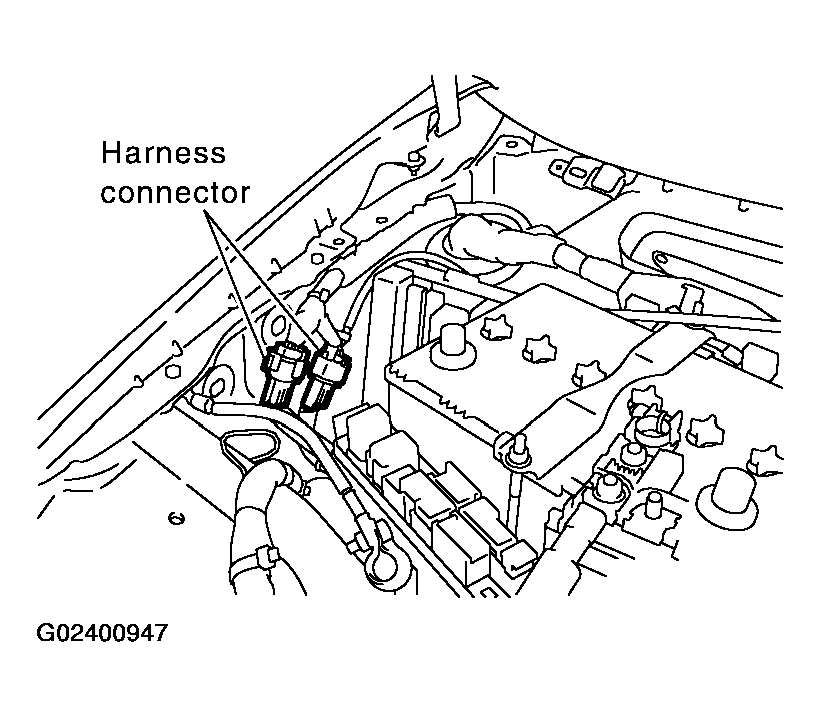

    Fig 1: Removing Engine Room Harness Connectors
    G02400947Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Disconnect two body ground cables.
  7. Disconnect brake booster vacuum hose.
  8. Disconnect fuel feed hose (with damper) and EVAP hose. Refer to "FUEL INJECTOR AND FUEL TUBE ".
    CAUTION: Fit plugs onto disconnected hoses to prevent fuel leak.
  9. Remove reservoir tank of power steering oil pump, and piping from vehicle, and temporarily secure them on engine.
    CAUTION: When temporarily securing, keep the reservoir tank upright to avoid a fluid leak.
