Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

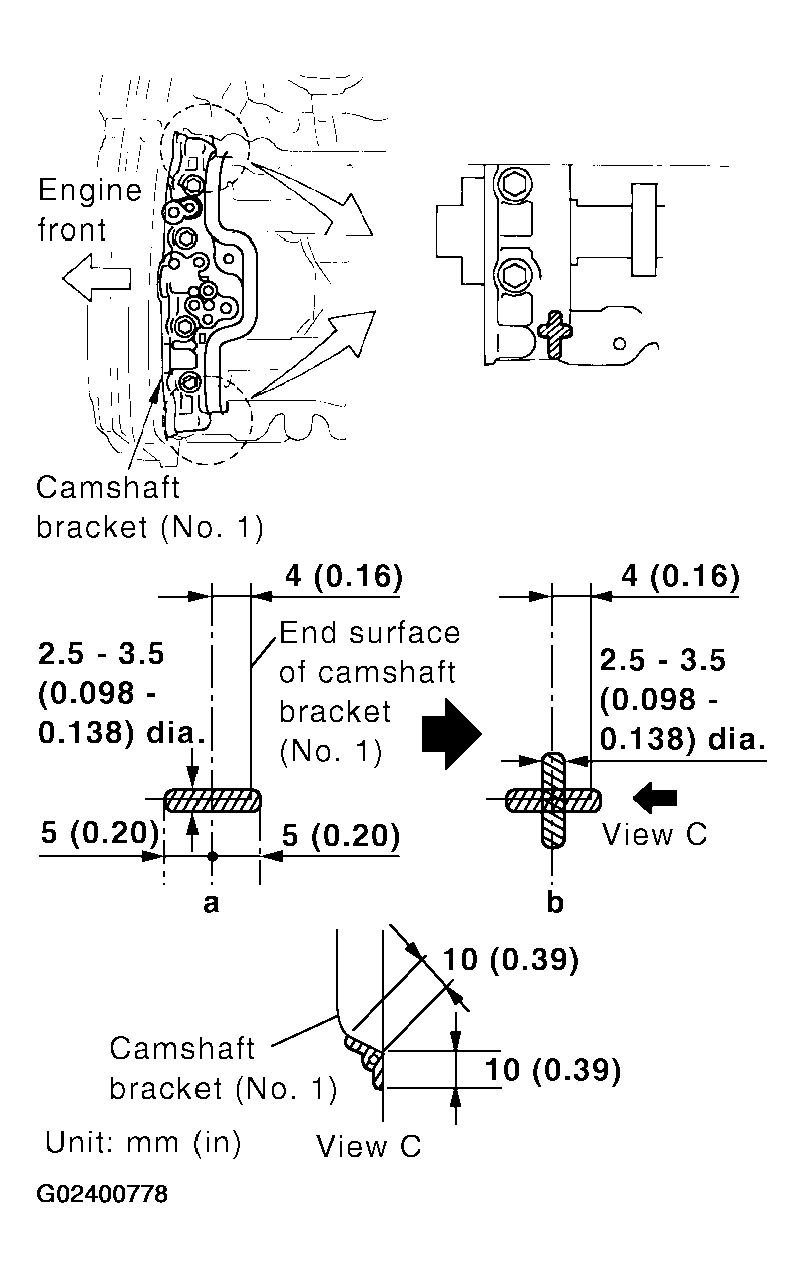

Apply liquid gasket with tube presser [SST: WS39930000 ( - )] to joint part among rocker cover, cylinder head and camshaft bracket (No. 1) as follows:
Use Genuine RTV Silicone Sealant or equivalent. Refer to " RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

NOTE: The figure shows an example of left bank side [zoomed in shows camshaft bracket (No. 1)].
1. Refer to the figure "a" to apply liquid gasket to joint part of camshaft bracket (No. 1) and cylinder head.
2. Refer to the figure "b" to apply liquid gasket to the figure "a" squarely.
Fig 1: Shows An Example Of Left Bank Side [Zoomed In Shows Camshaft Bracket (No. 1)]
Courtesy of NISSAN MOTOR CO., U.S.A.
Install new rocker cover gasket to rocker cover.
Install rocker cover.
- Check if rocker cover gasket is not dropped from installation groove of rocker cover.

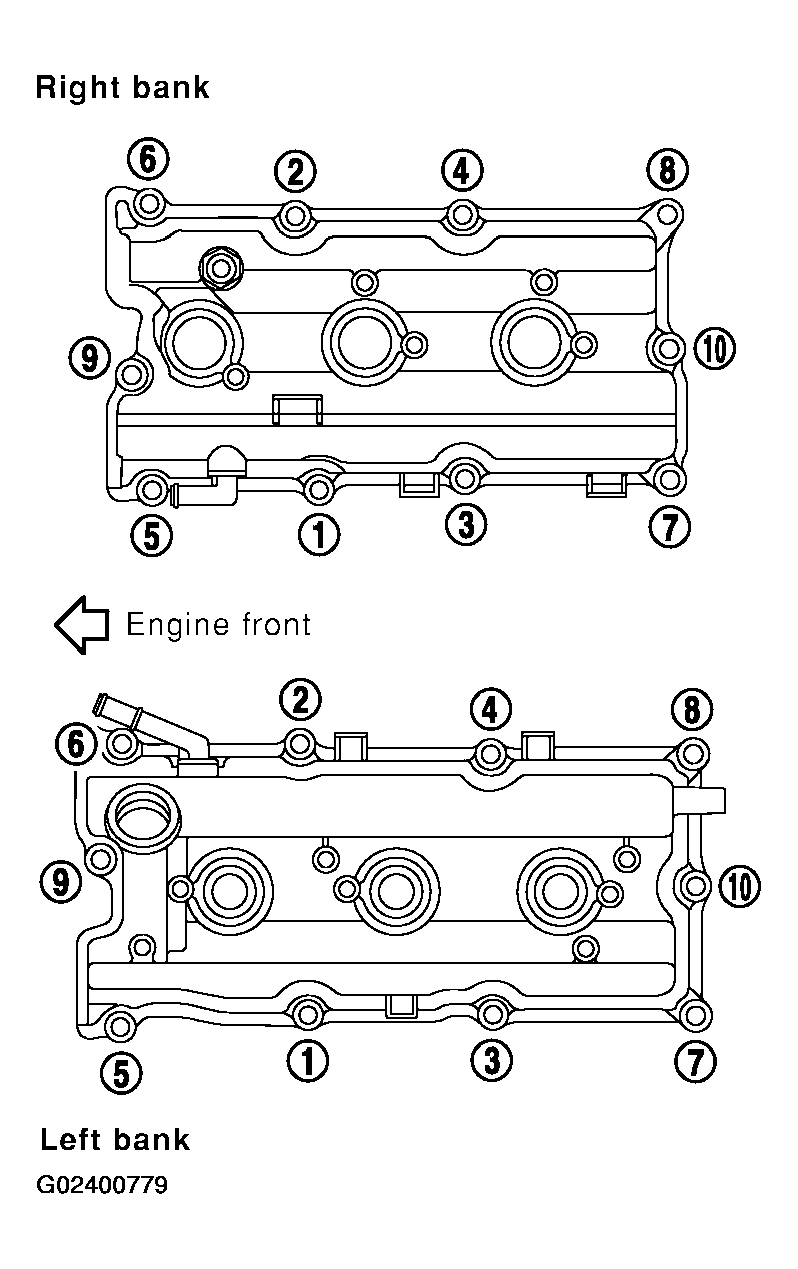

Tighten bolts in two steps separately in numerical order as shown in the figure.
- 1st step :
  - 0.96 - 2.96 N.m (0.10 - 0.30 kg-m, 9 - 26 in-lb)
- 2nd step :
  - 7.33 - 9.33 N.m (0.75 - 0.95 kg-m, 65 - 82 in-lb)
Fig 2: Tighten Bolts In Two Steps Separately In Numerical
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil filer cap to rocker cover (left bank), if removed.
Install new O-ring and PCV valve to rocker cover (right bank), if removed.
Install PCV hose.
- Insert PCV hose by 25 to 30 mm (0.98 to 1.18 in) from connector end.
- When installing, be careful not to twist or come in contact with other parts.
- Install PCV hose between right and left rocker covers with its identification paint facing upward (right rocker cover side). Refer to component figure in "REMOVAL AND INSTALLATION ".
Install in the reverse order of removal after this step.
