Tightening Torque

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

*1: Parts to be tightened in particular orders.

1)-: Order of tightening when tightening two or more times separately.

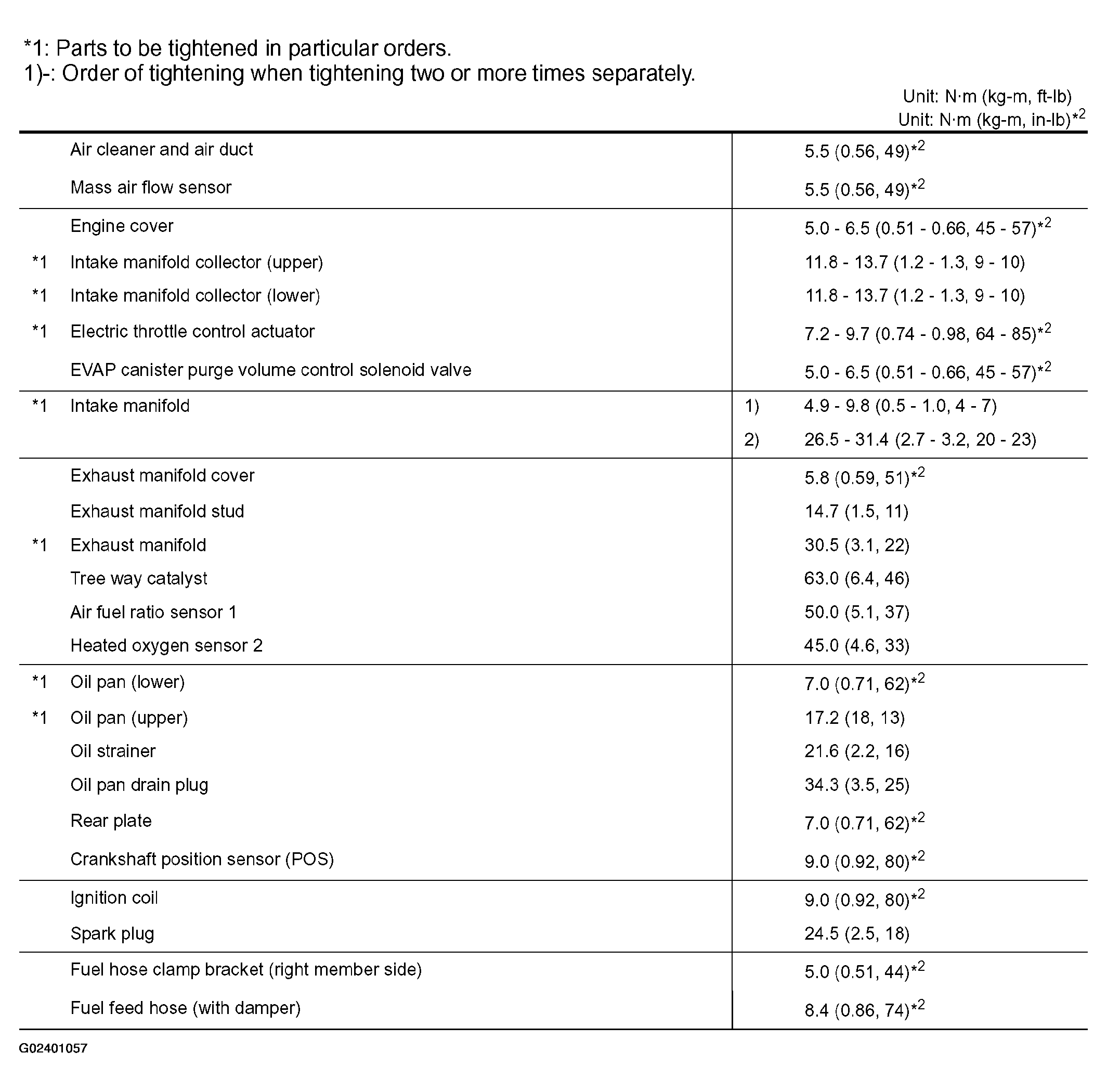

Fig 1: Tightening Torque Specification (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

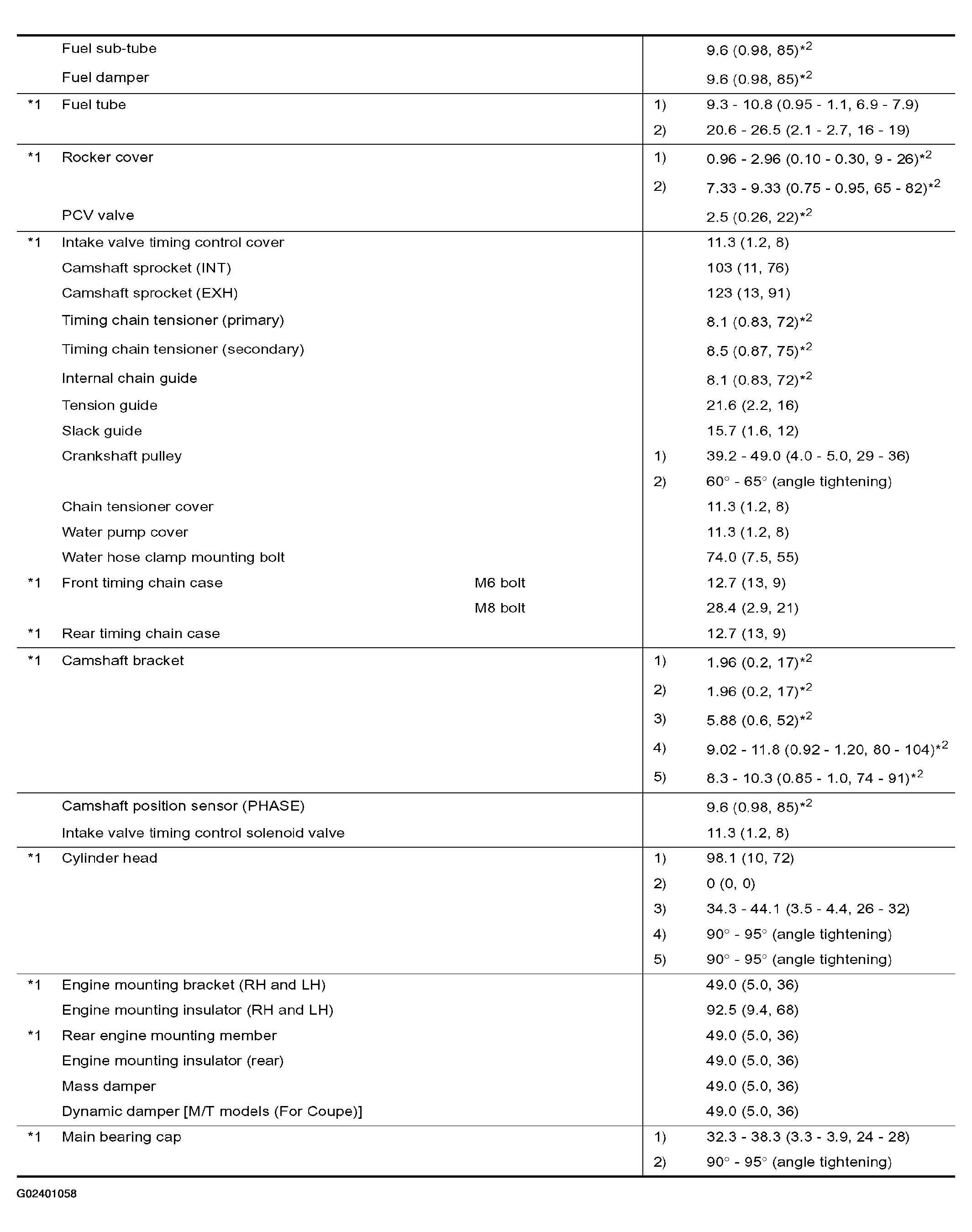

Fig 2: Tightening Torque Specification (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

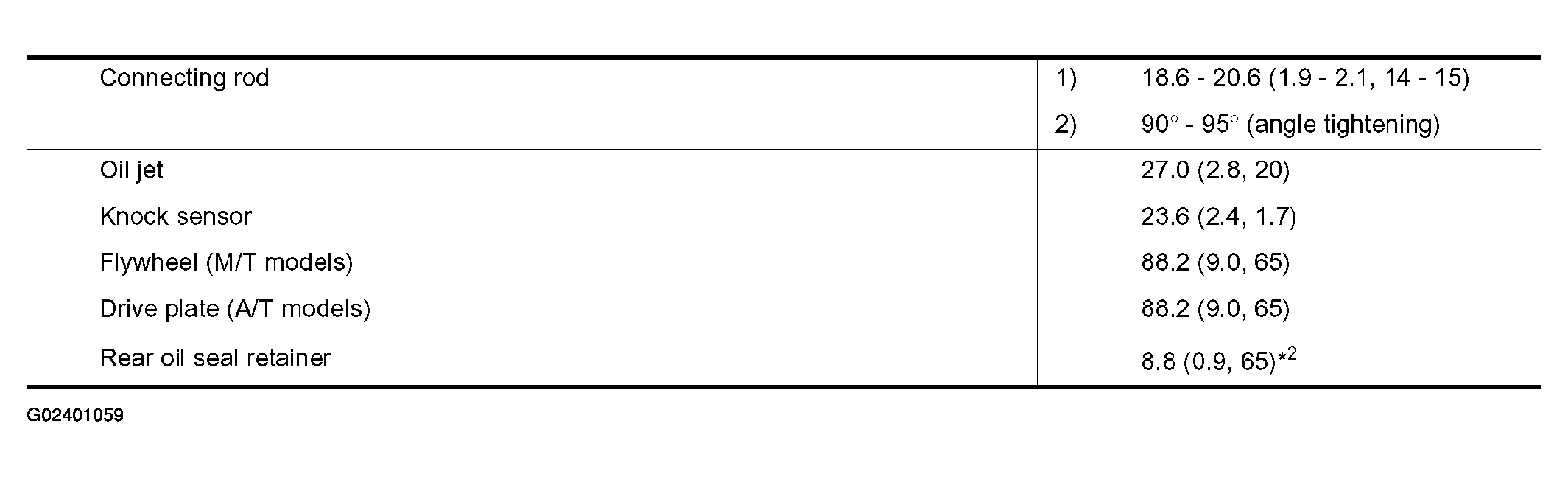

Fig 3: Tightening Torque Specification (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
