Clutch And Band Chart

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

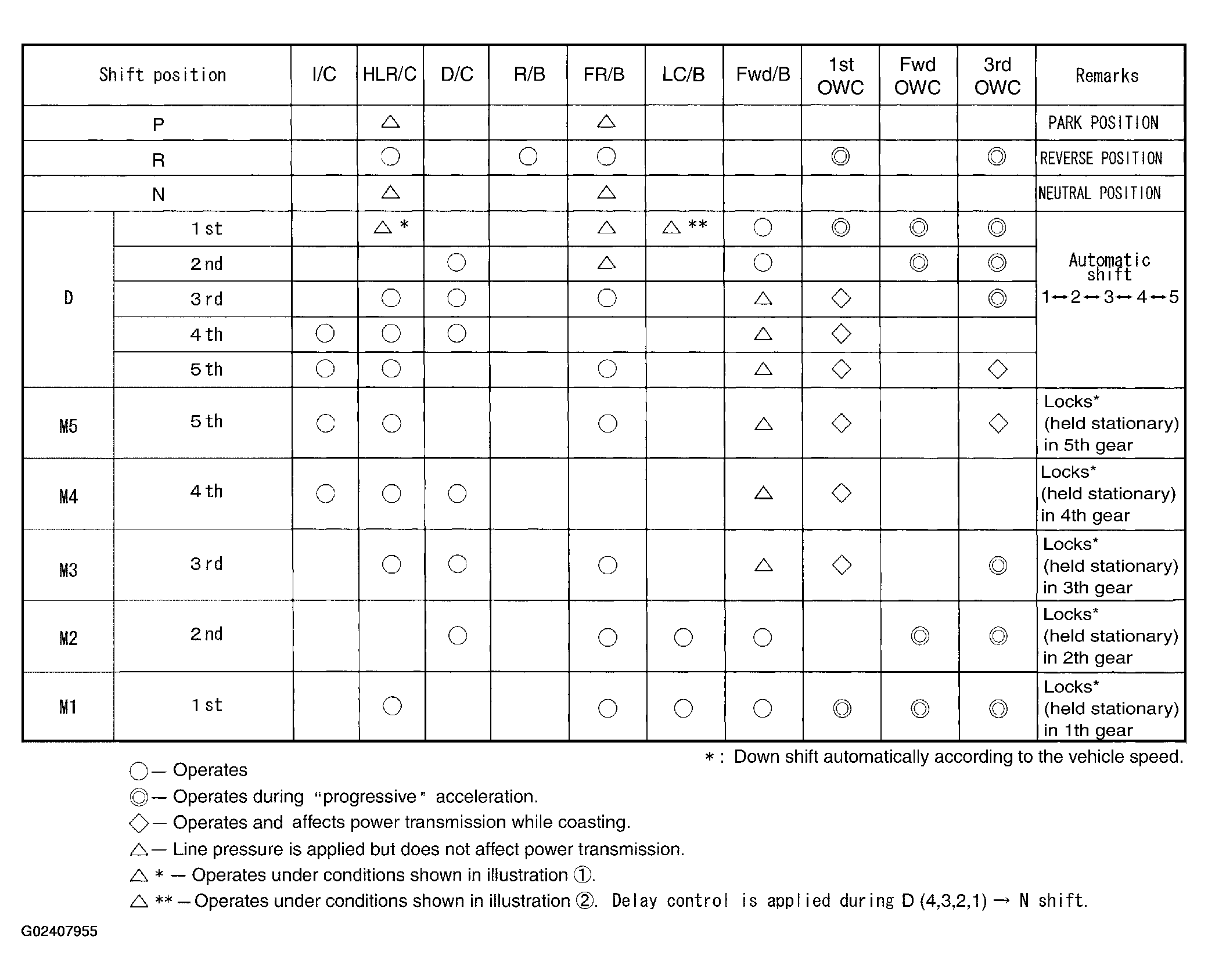

Fig 1: Clutch & Band Reference

Courtesy of NISSAN MOTOR CO., U.S.A.

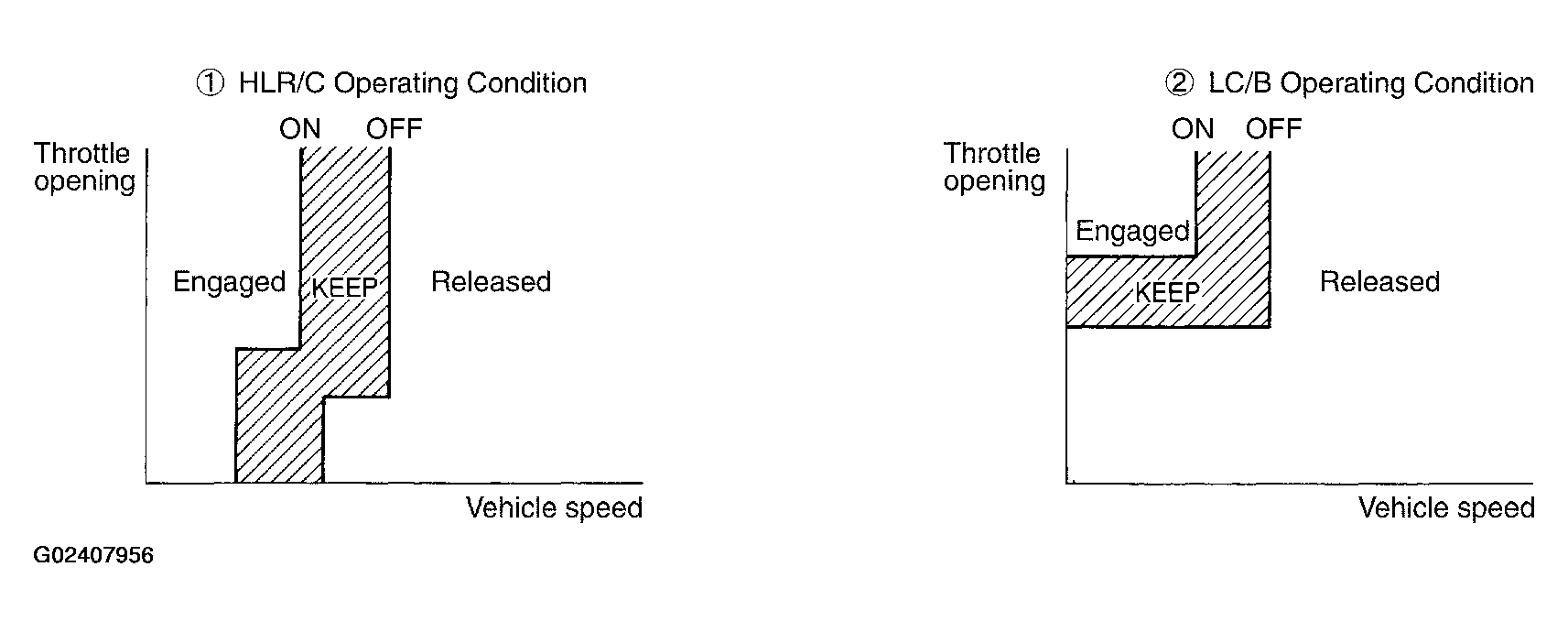

Fig 2: Vehicle Speed Throttle Opening Operation Condition

Courtesy of NISSAN MOTOR CO., U.S.A.
