Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Set holder of key interlock cable to key cylinder and install lock plate.
CAUTION: Do not reuse the lock plate
Clamp key interlock cable and fix to key interlock cable with band.
Turn ignition key to lock position.
Set selector lever to "P" position.

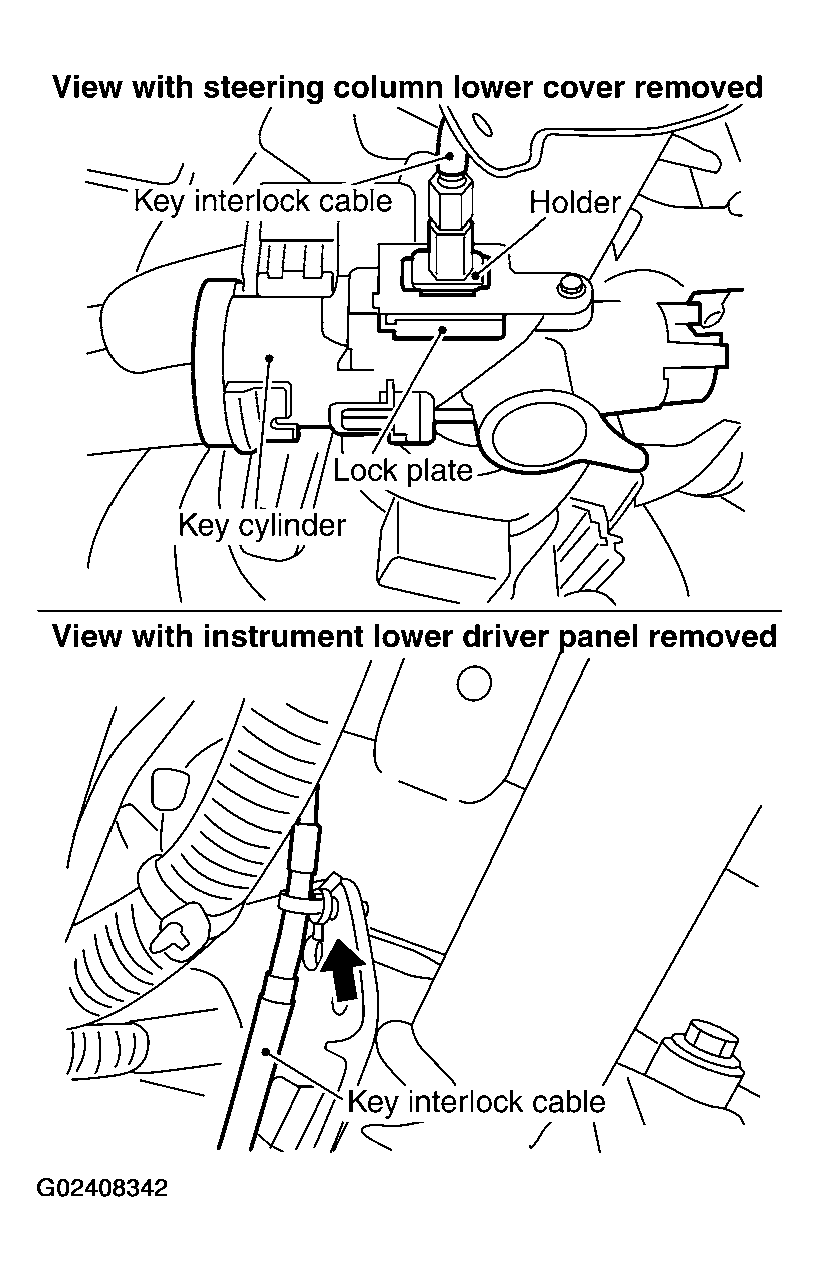

Fig 1: Installing Lock Plate & Key Interlock Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.
Install casing cap to bracket.
Move slider in order to fix adjuster holder to interlock rod.
CAUTION: Do not touch any parts except slider. Do not add any force to slider except force toward slider.

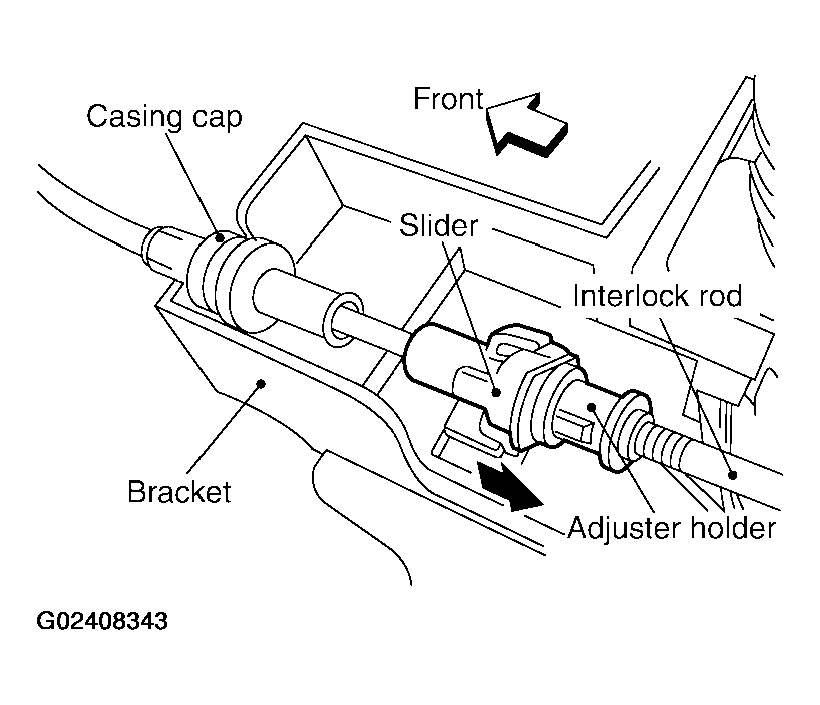

Fig 2: Installing Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
