Parking Components: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Drain ATF through drain plug.
Remove exhaust front tube and center muffler with power tool. Refer to "REMOVAL AND INSTALLATION ".
Remove rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
CAUTION: Do not impact or damage propeller shaft tube.
Remove control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
Support transmission assembly with a transmission jack.
CAUTION: When setting transmission jack, be careful not to allow it to collide against the drain plug.
Remove engine rear member with power tool. Refer to "REMOVAL AND INSTALLATION ".

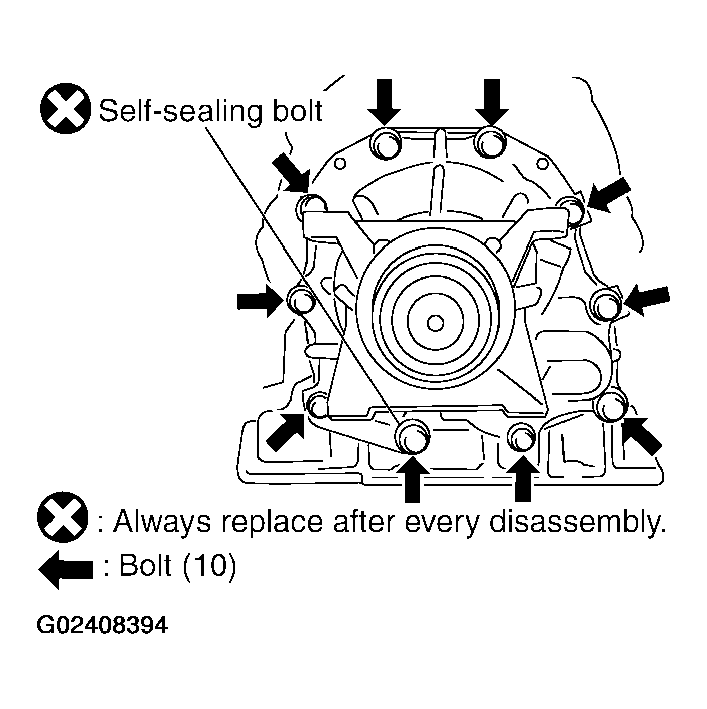

Remove tightening bolts for rear extension assembly and transmission case.

Fig 1: Removing Rear Extension Assembly And Transmission Case Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Tap rear extension assembly with soft hammer.

Fig 2: Taping Rear Extension Assembly With Soft Hammer
Courtesy of NISSAN MOTOR CO., U.S.A.

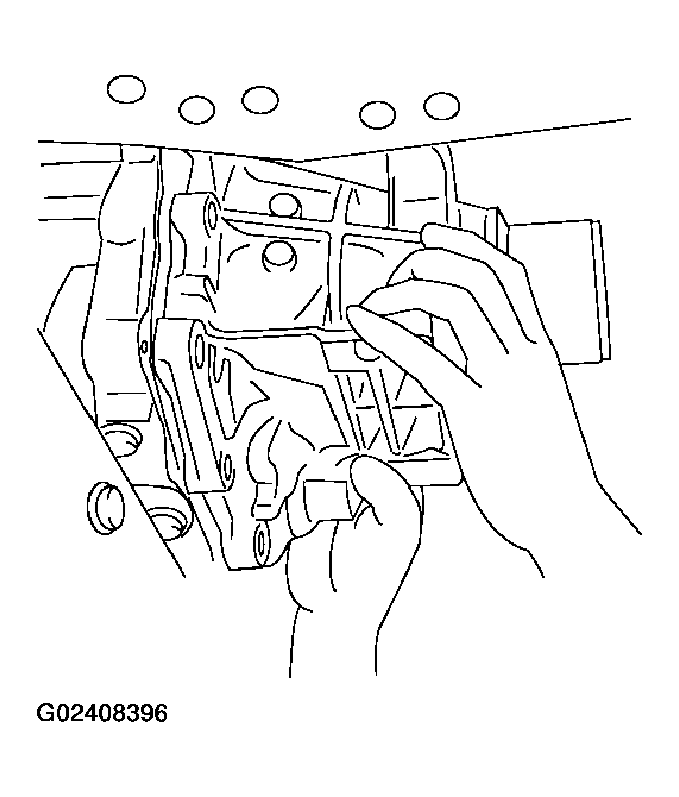

Remove rear extension assembly from transmission case. (With needle bearing.)

Fig 3: Removing Rear Extension Assembly From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

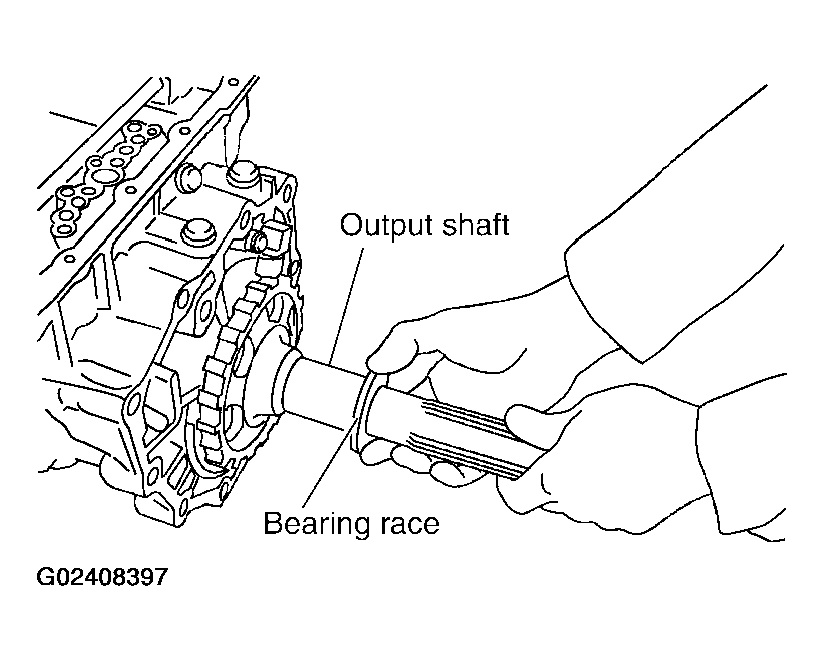

Remove bearing race from output shaft.

Fig 4: Removing Bearing Race From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

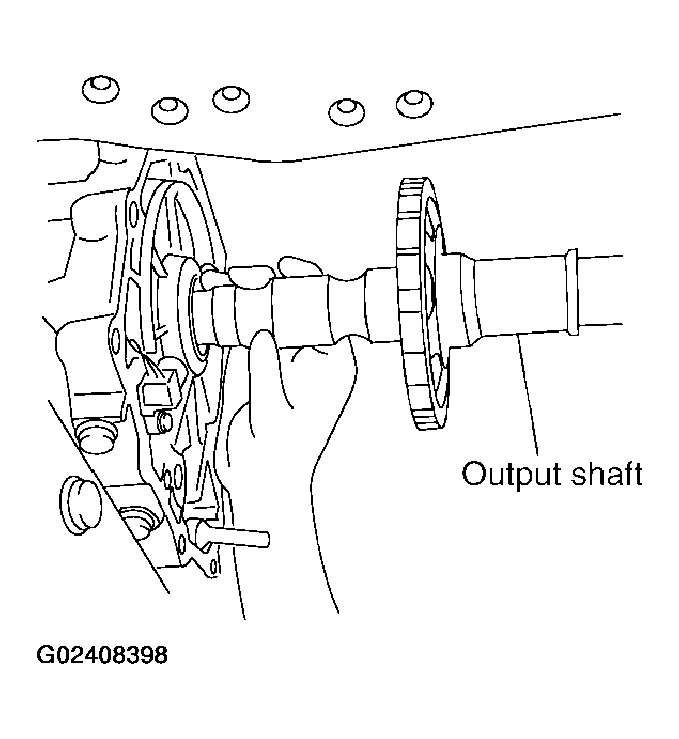

Remove output shaft from transmission case by rotating left/right.

Fig 5: Removing Output Shaft From Transmission Case By Rotating Left/Right
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking gear from output shaft.

Fig 6: Removing Parking Gear From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove seal rings from output shaft.

Fig 7: Removing Seal Rings From Output Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from rear extension.
Remove parking actuator support from rear extension.

Fig 8: Removing Parking Actuator Support From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking pawl (with return spring) and pawl shaft from rear extension.

Fig 9: Removing Parking Pawl & Pawl Shaft From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring from parking pawl.

Fig 10: Removing Return Spring From Parking Pawl
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear oil seal from rear extension.
CAUTION: Be careful not to scratch rear extension.

Fig 11: Removing Rear Oil Seal From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
