Direct Clutch: Assembly

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Install drive plates, driven plates and retaining plate in direct clutch drum.
CAUTION: Take care with order of plates.
Using a flat-bladed screwdriver, install snap ring in direct clutch drum.

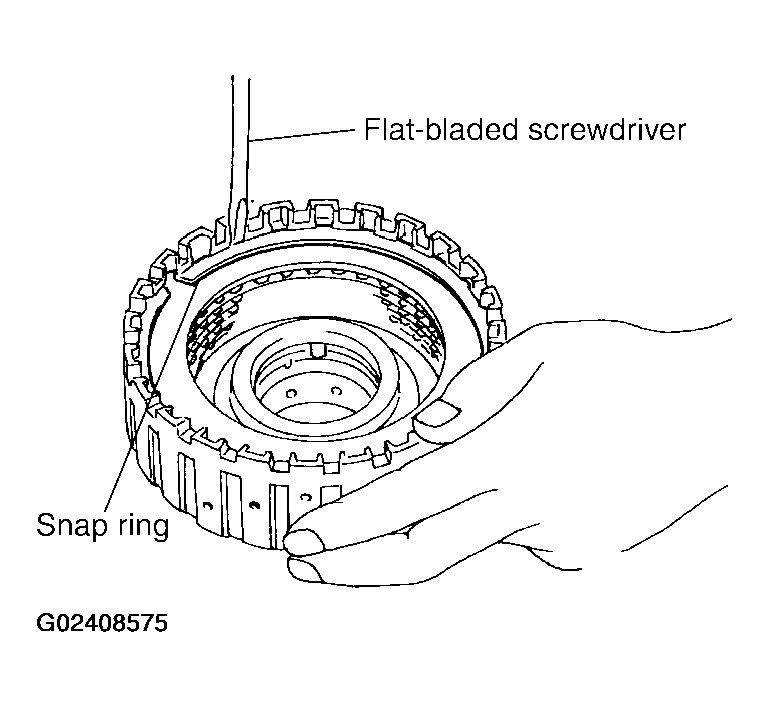

Fig 1: Installing Snap Ring In Direct Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
