Oil Pump: Assembly

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Install O-ring to oil pump cover.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

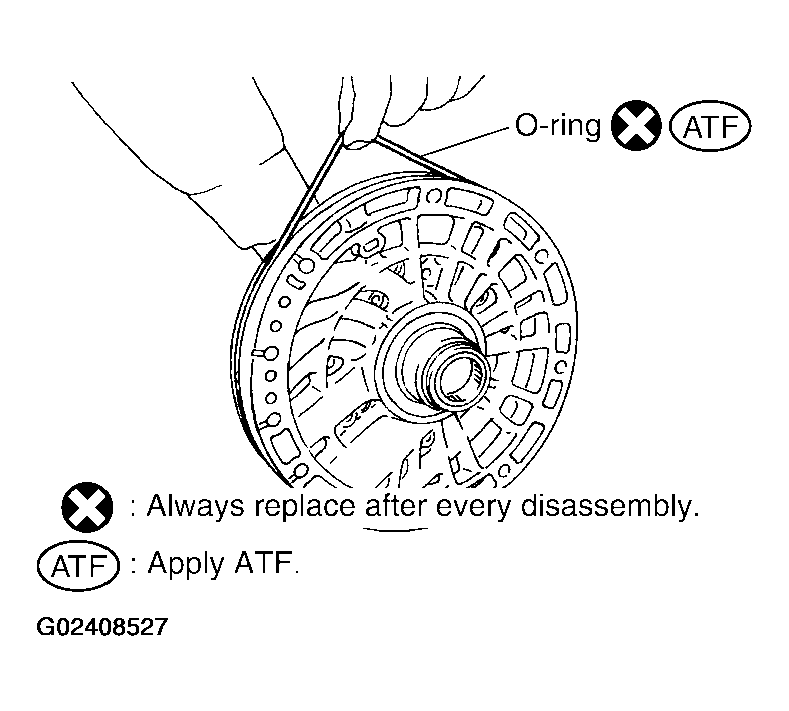

Fig 1: Installing O-Ring To Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to oil pump housing.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Fig 2: Installing O-Ring To Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a drift, install oil pump housing oil seal to the oil pump housing until it is flush.
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.
Fig 3: Installing Oil Pump Housing Oil Seal To Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump housing to oil pump cover.
Tighten bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
- Torque Specifications : 9.0 N.m (0.92 kg-m, 80 in-lb.)

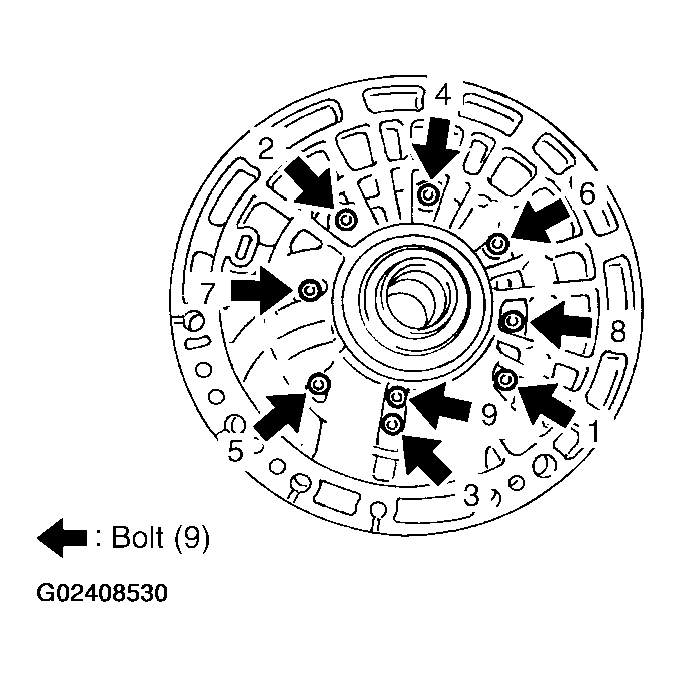

Fig 4: Tightening Sequence Of Oil Pump Housing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
