Oil Pump: Disassembly

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Remove oil pump housing from oil pump cover.

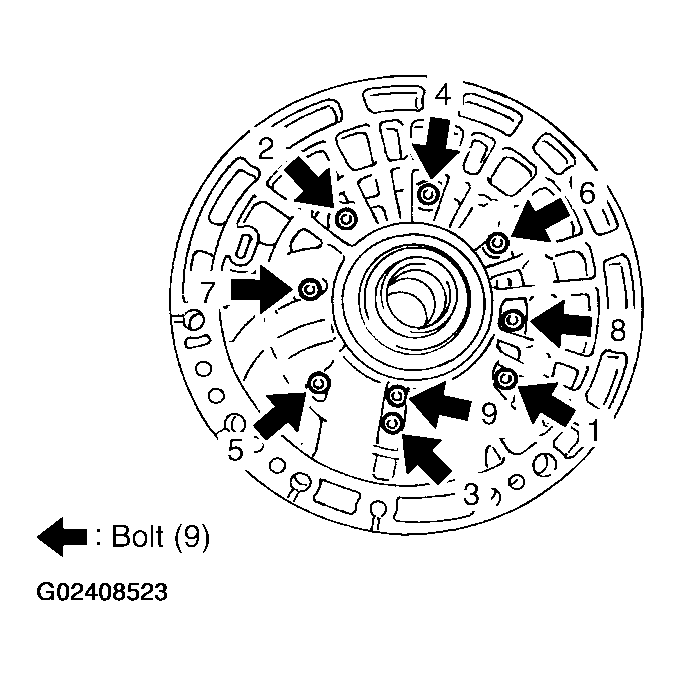

Fig 1: Removing Oil Pump Housing From Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pump housing oil seal using a flat-bladed screwdriver.
CAUTION: Be careful not to scratch oil pump housing.

Fig 2: Removing Oil Pump Housing Oil Seal Using A Flat-Bladed Screwdriver
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from oil pump housing.

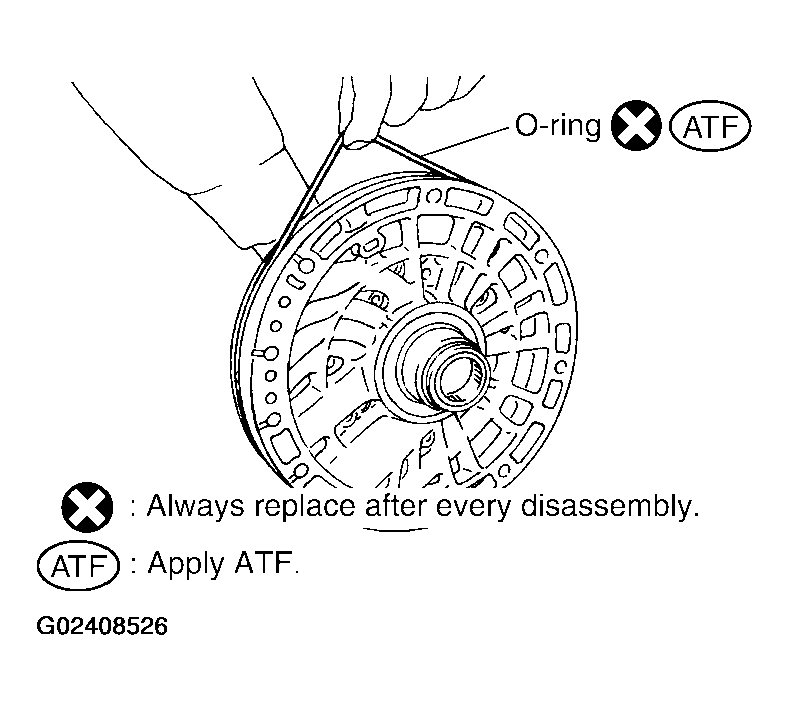

Fig 3: Removing O-Ring From Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from oil pump cover.

Fig 4: Removing O-Ring From Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
