Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Install center console. Refer to CENTER CONSOLE .
Remove harness connector.
Remove installation bolts. Remove yaw rate/side G-sensor.

CAUTION:

Do not drop or strike the yaw rate/side G-sensor, because it has little endurance to impact.
Do not use power tool etc., because Yaw rate / Side G sensor is weak for the impact.

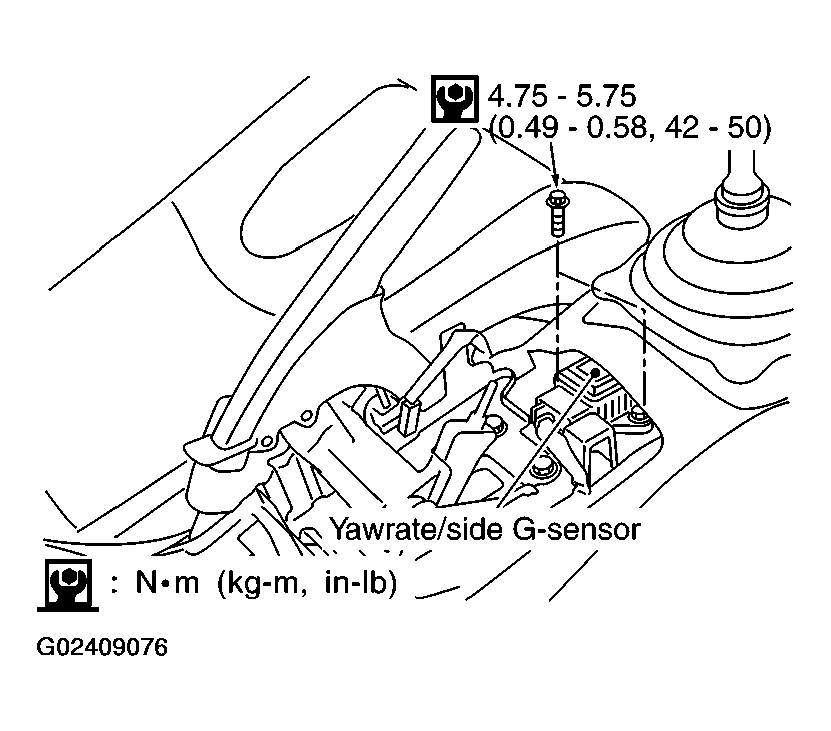

Fig 1: Removing/Installing Yaw Rate/Side G-Sensor - VDC/TCS/ABS With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
