Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Install collar to lower shaft.

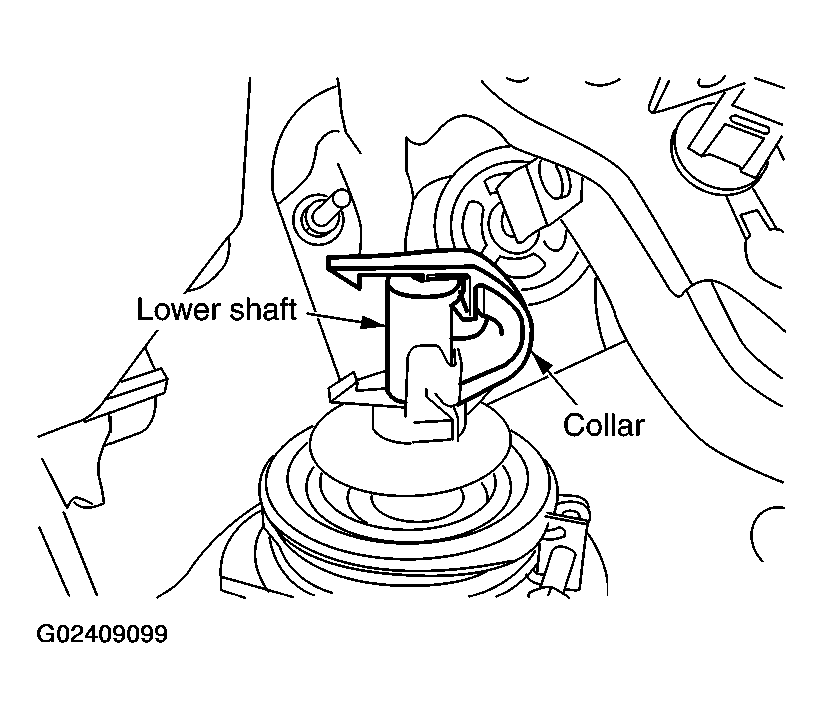

Fig 1: Installing Collar To Lower Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install yoke of column shaft to collar, tack bolt and nut.

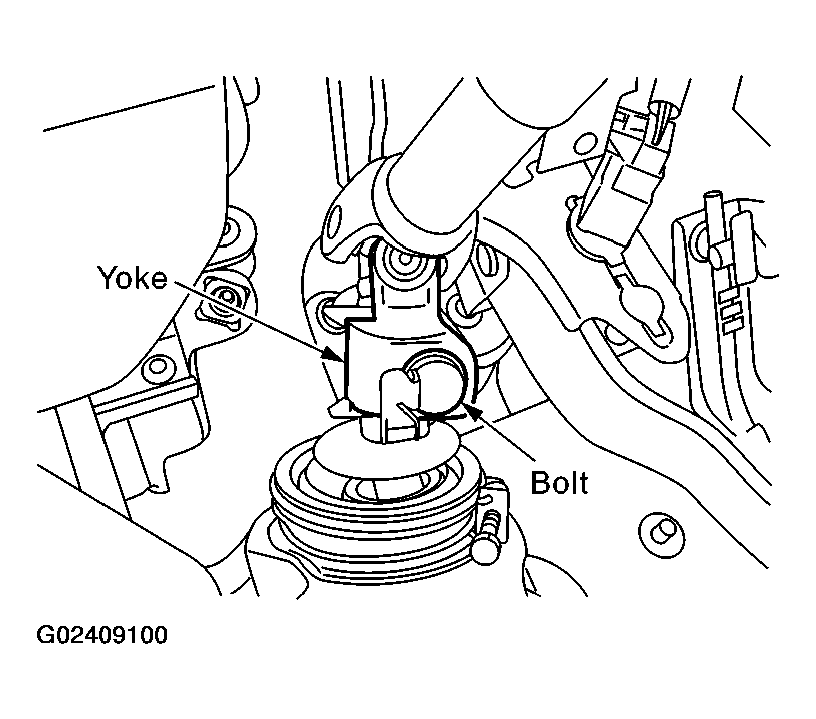

Fig 2: Installing Yoke Of Column Shaft To Collar
Courtesy of NISSAN MOTOR CO., U.S.A.
Put steering column assembly (installation hole "P") on bolt for steering member side and install nut "A" then tighten it together with the other bolts at the specified torque.
Connect yoke and collar with bolt, tighten nut at the specified torque.

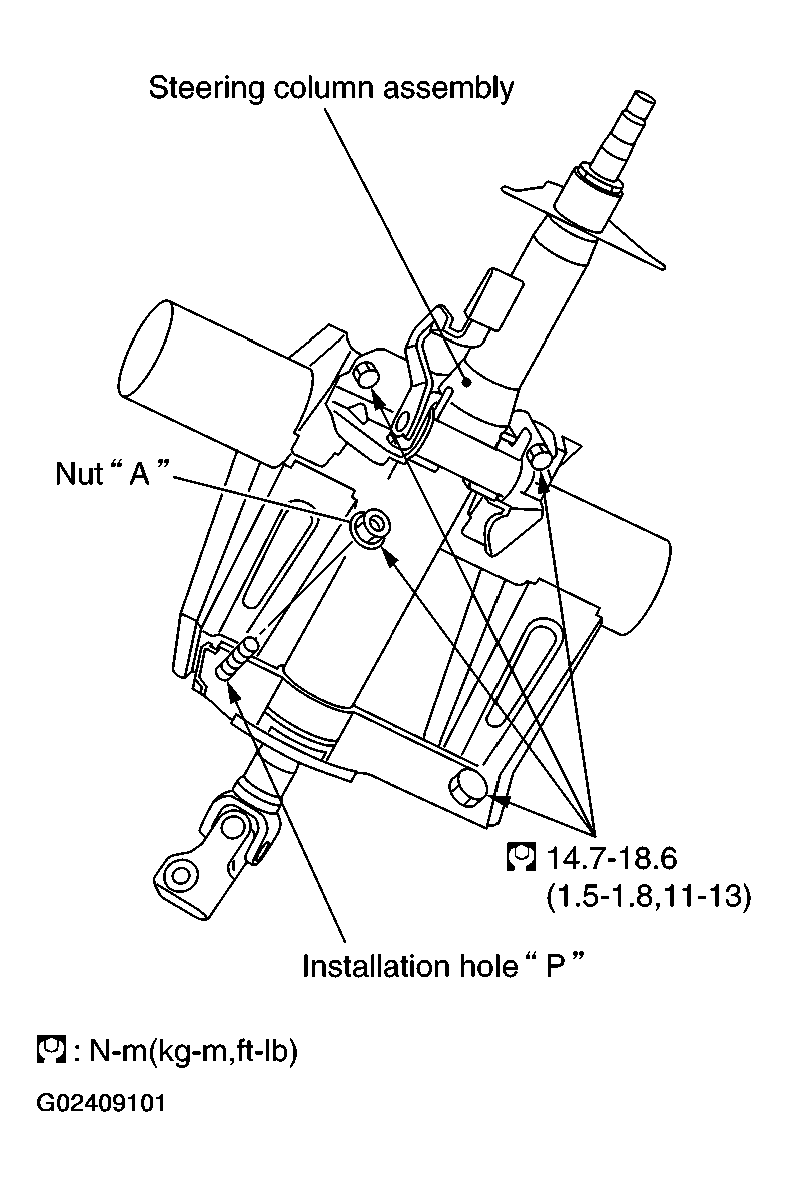

Fig 3: Placing Steering Column Assembly (Installation Hole "P") On Bolt For Steering Member Side With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
