Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

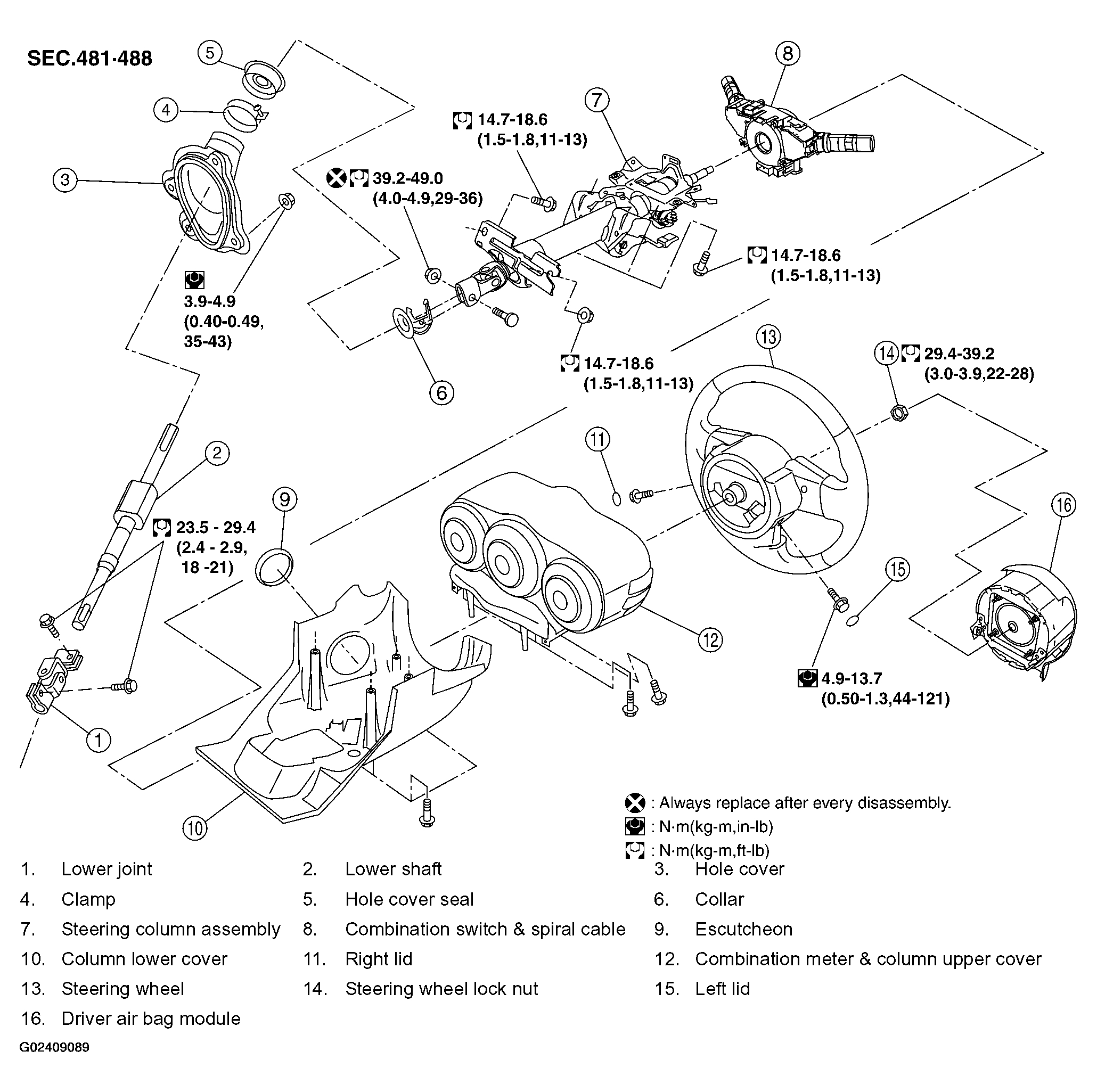

Fig 1: Exploded View Of Steering Column Components With Torque Specifications
G02409089Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Care must be taken not to give axial impact to steering column assembly during removal and installation.
  • Care must be taken not to move steering gear during removal of steering column assembly.
