Back Door Assembly: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headlining. Refer to "REMOVAL AND INSTALLATION (FOR COUPE MODELS) ".
Disconnect each harness connector, which is out to body from back door.
Support the back door striker with a proper material to prevent it from falling.
WARNING: Body injury may occur if no supporting rod is holding the back door open when removing the damper stay.

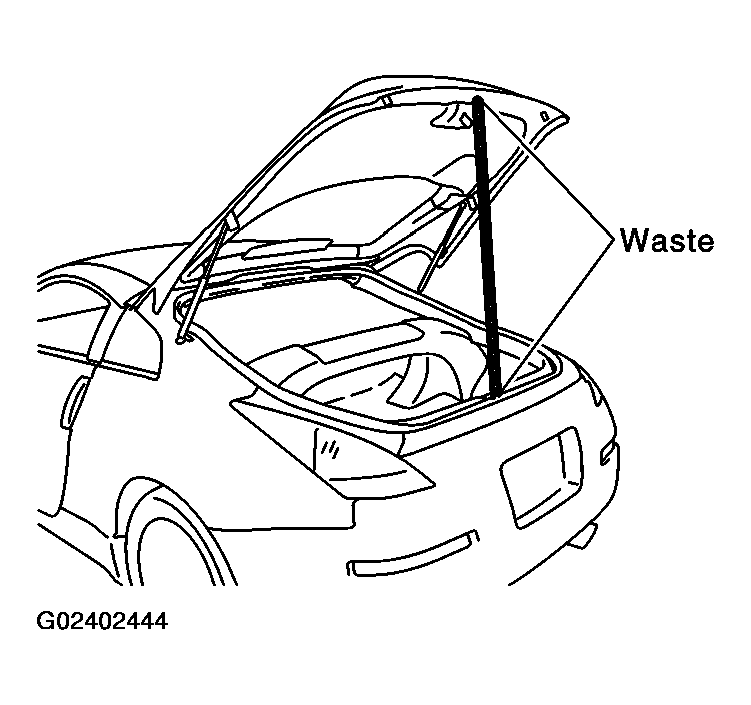

Fig 1: Supporting Back Door Striker
Courtesy of NISSAN MOTOR CO., U.S.A.

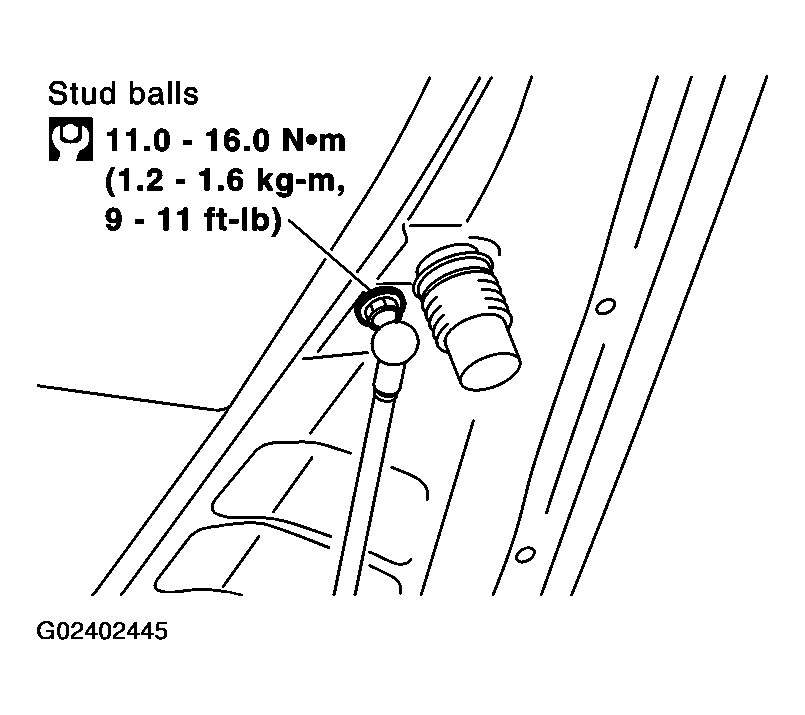

Remove stud balls on back door.

Fig 2: Removing Stud Balls On Back Door With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove hinge mount nuts of the body and remove back door assembly.

Fig 3: Removing Hinge Mount Nuts Of Body & Back Door Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
