Description of Air Conditioner LAN Control System
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
The LAN (Local Area Network) system consists of unified meter and A/C amp., mode door motor, air mix door motor and intake door motor.

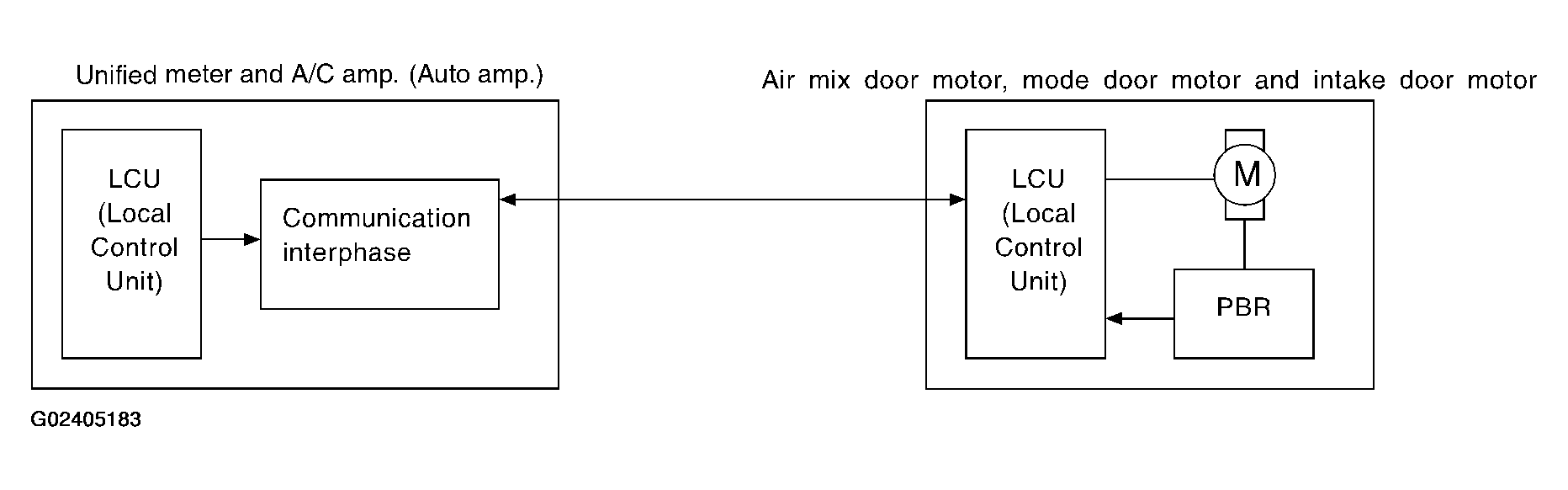

A configuration of these components is shown in the diagram below.
Courtesy of NISSAN MOTOR CO., U.S.A.
