Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Remove low-pressure pipe and high-pressure pipe 2. Refer to "REMOVAL AND INSTALLATION OF LOW-PRESSURE PIPE AND HIGH-PRESSURE PIPE 2 "
CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
Slide evaporator to passenger side, and then remove intake sensor.

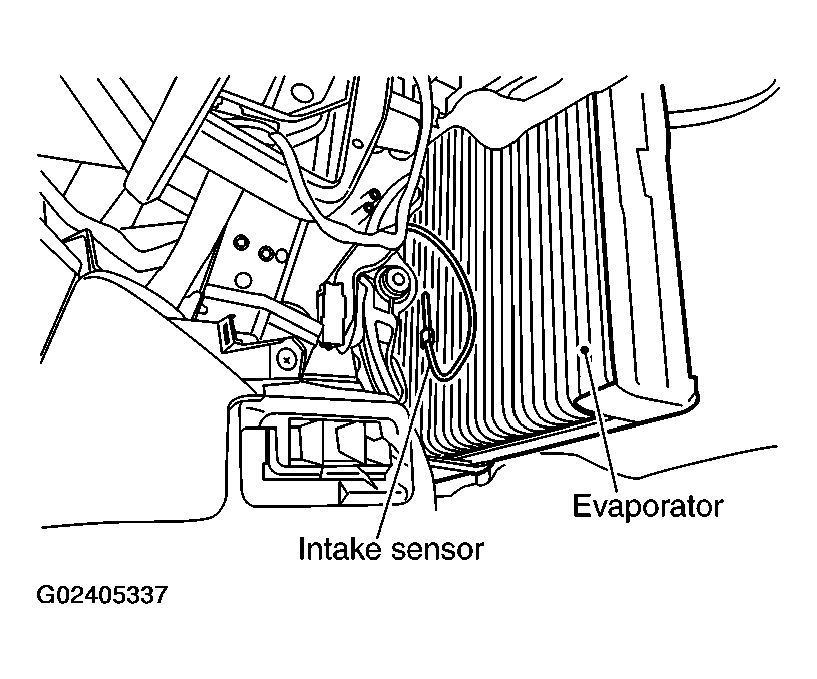

Fig 1: Removing Intake Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
