Intake Sensor
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

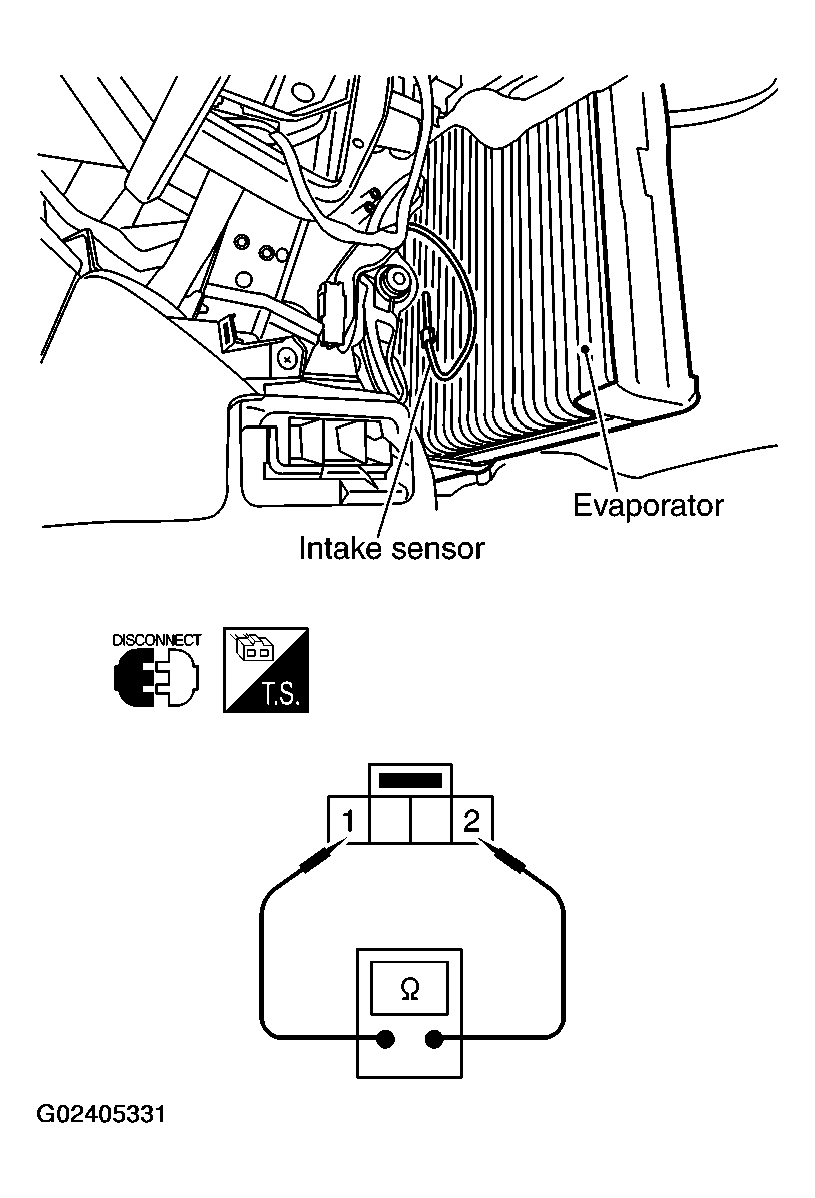

After disconnecting intake sensor connector M255, measure resistance between terminals 1 (W) and 2 (R) at sensor side, using the table below.
TEMPERATURE AND RESISTANCE
| Temperature °C (°F) | Resistance kΩ |
|---|---|
| -15 (5) | 12.34 |
| -10 (14) | 9.62 |
| -5 (23) | 7.56 |
| 0 (32) | 6.00 |
| 5 (41) | 4.80 |
| 10 (50) | 3.87 |
| 15 (59) | 3.15 |
| 20 (68) | 2.57 |
| 25 (77) | 2.12 |
| 30 (86) | 1.76 |
| 35 (95) | 1.47 |
| 40 (104) | 1.23 |
| 45 (113) | 1.04 |
If NG, replace intake sensor.
