Consult-II Basic Operation

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector, then turn ignition switch ON.

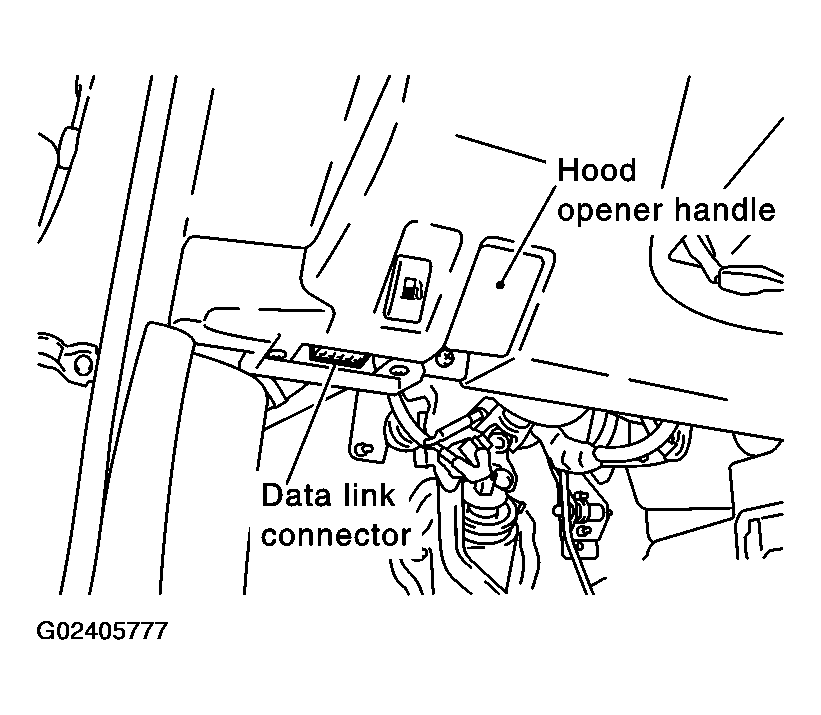

    Fig 1: Locating Data Link Connector
    G02405777Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Scan Tool Display "Consult-II"
    G02405778Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not displayed, print "SELECT SYSTEM" screen, then refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

    Fig 3: Scan Tool Display "Select System"
    G02405779Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "COMB SW".

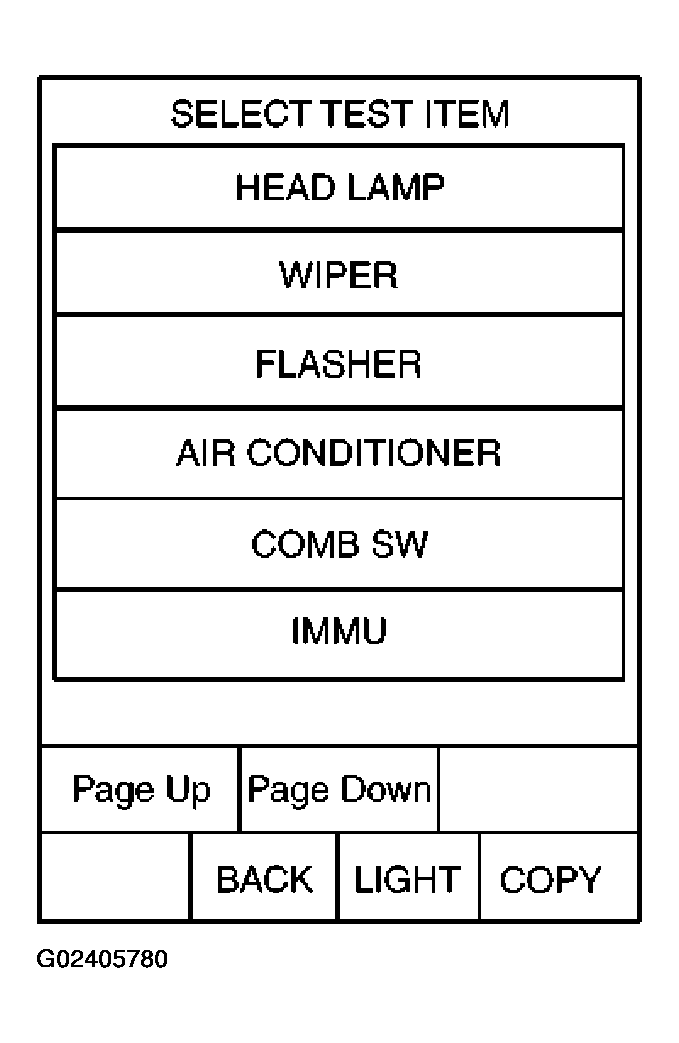

    Fig 4: Scan Tool Display "Select Test Items"
    G02405780Courtesy of NISSAN MOTOR CO., U.S.A.
