Removal and Installation for Combination Meter: Removal
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
- Remove instrument driver panel lower. Refer to "INSTRUMENT PANEL ASSEMBLY ".
- Remove steering column lower cover. Refer to "INSTRUMENT PANEL ASSEMBLY "

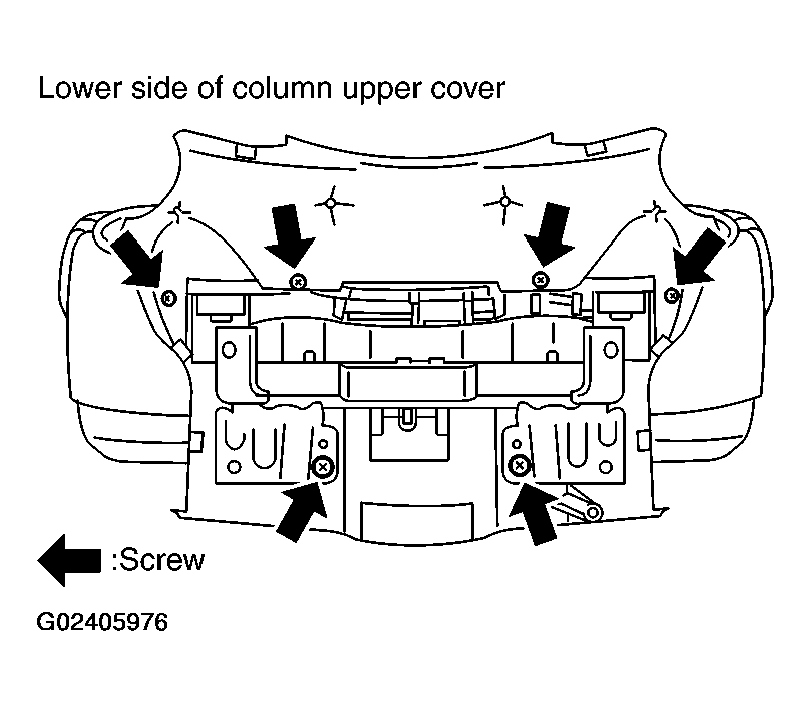

- Remove bolts (4) and remove column upper cover and combination meter assembly. Refer to "INSTRUMENT PANEL ASSEMBLY ".
- Remove screws (6) and remove combination meter.
