Systems Controlled By BCM And IPDM E/R

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

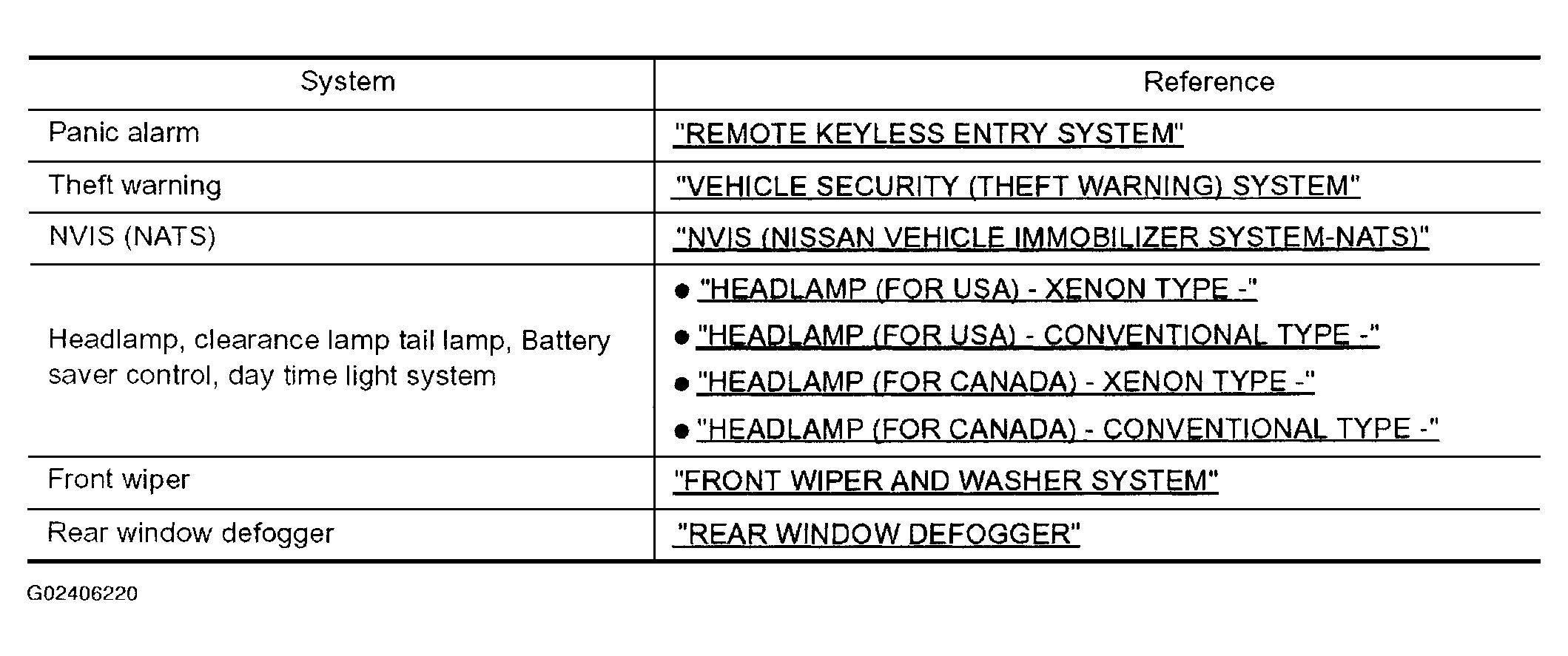

Fig 1: BCM And IPDM E/R Controlled System Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
