Wiring Diagram - COMM -

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

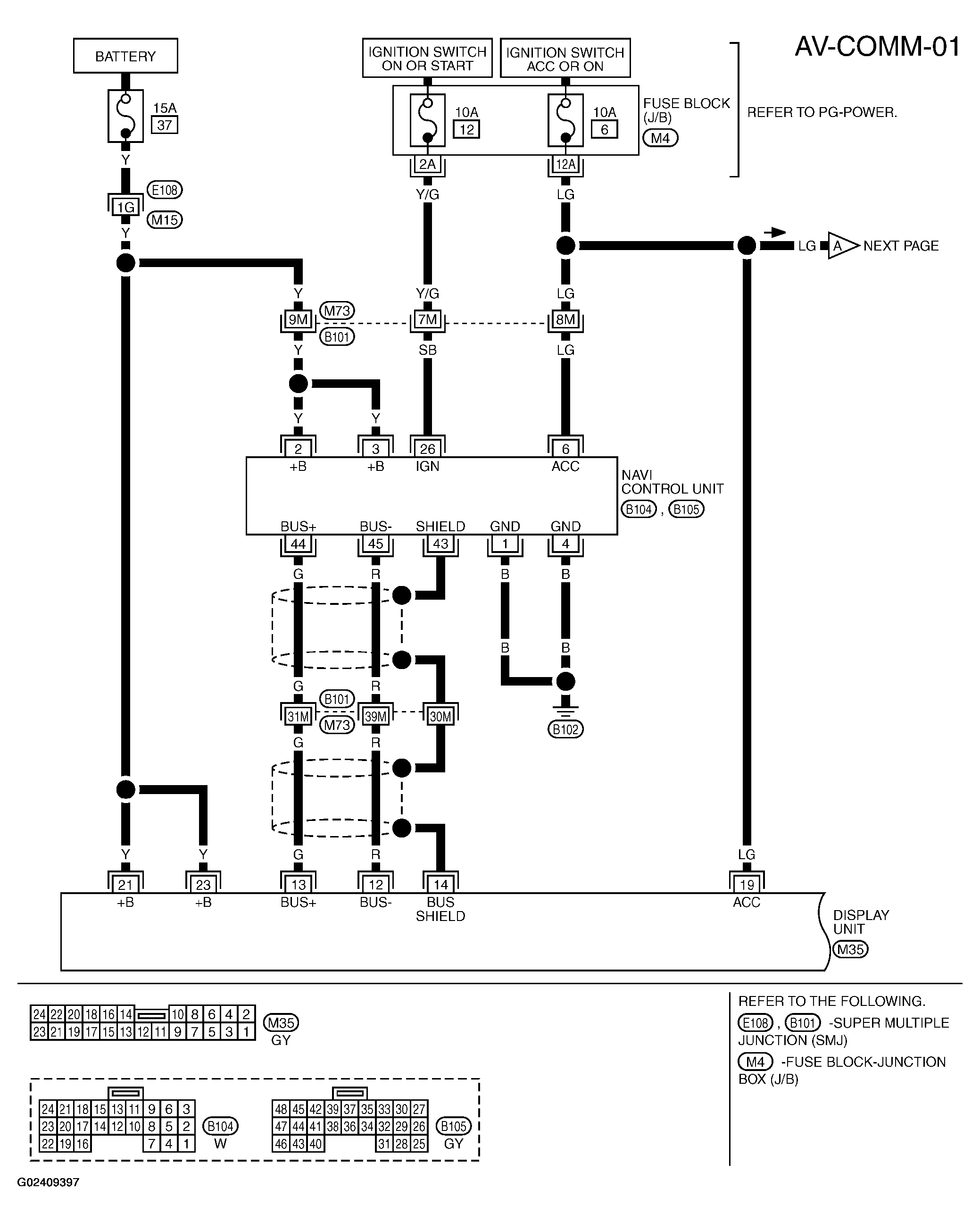

Fig 1: Wiring Diagram - COMM - AV-COMM-01

Courtesy of NISSAN MOTOR CO., U.S.A.

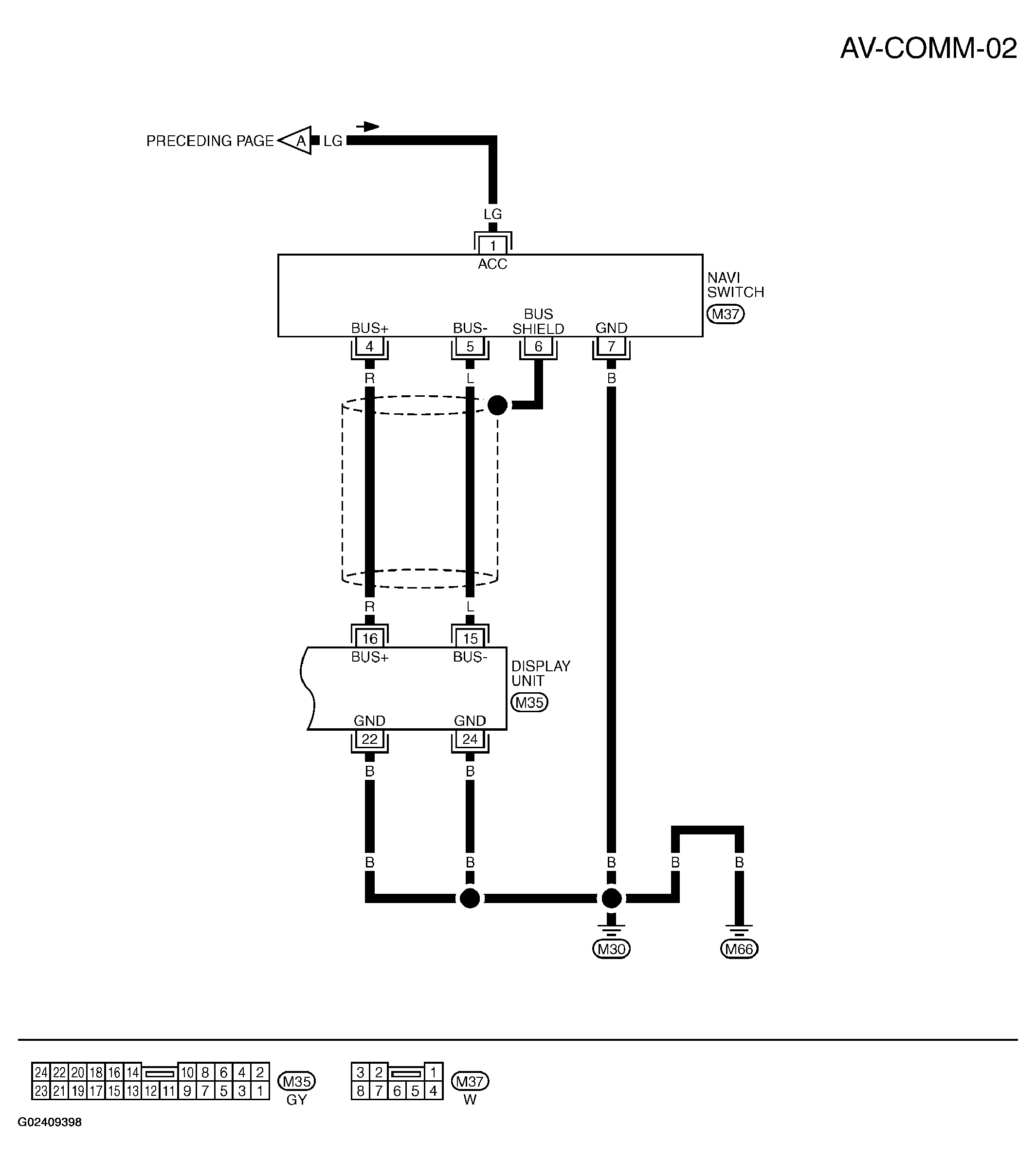

Fig 2: Wiring Diagram - COMM - AV-COMM-02

Courtesy of NISSAN MOTOR CO., U.S.A.
