Front Air Control: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove the five control knobs from the control unit.
Remove cluster lid C, disconnect the front air control electrical connector. Refer to "CLUSTER LID C ".
Remove the screws securing the front air control to cluster lid C.
Remove the front air control.

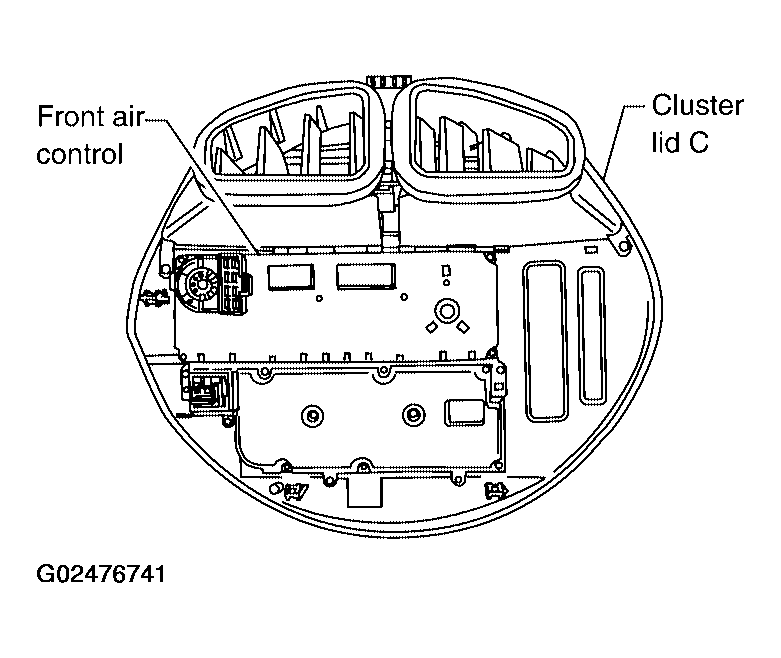

Fig 1: Identifying Front Air Control
Courtesy of NISSAN MOTOR CO., U.S.A.
