Intake Door Motor: Components

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

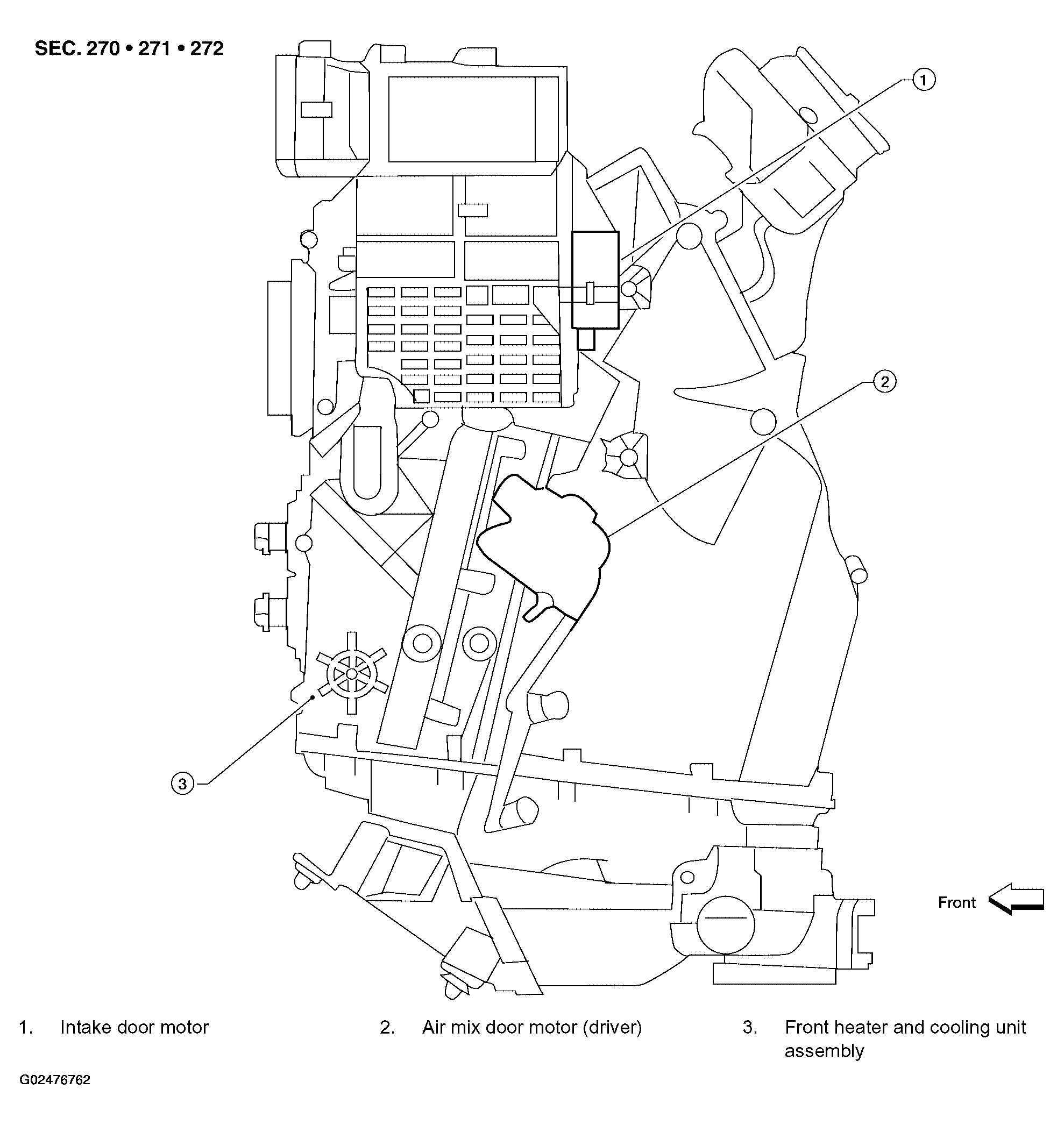

Fig 1: Identifying Intake Door Motor & Component
G02476762Courtesy of NISSAN MOTOR CO., U.S.A.

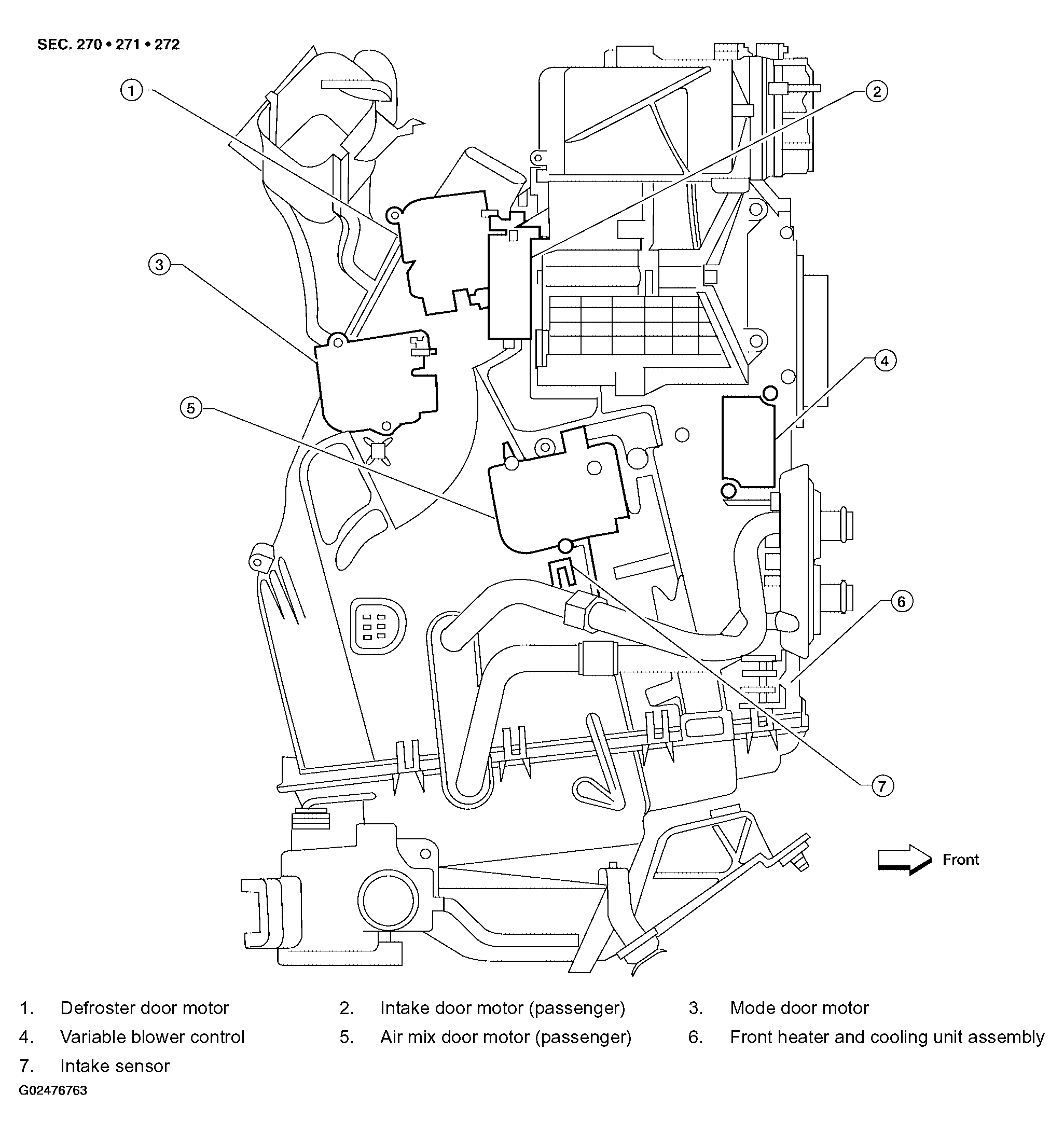

Fig 2: Identifying Intake Door Motor (Passenger) Component
G02476763Courtesy of NISSAN MOTOR CO., U.S.A.
