Refrigerant Lines: Components

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

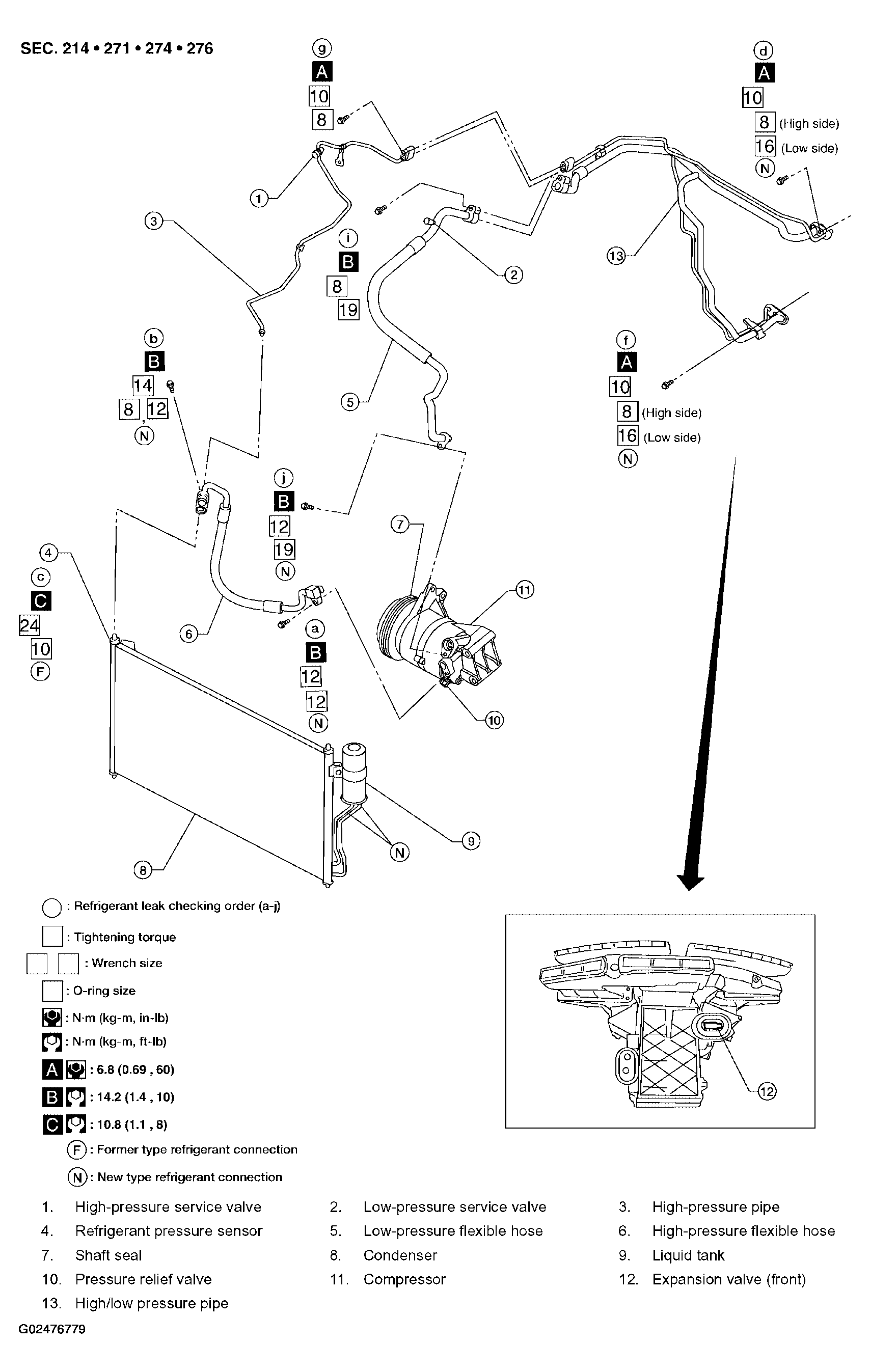

Fig 1: Front A/C Compressor & Condenser - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

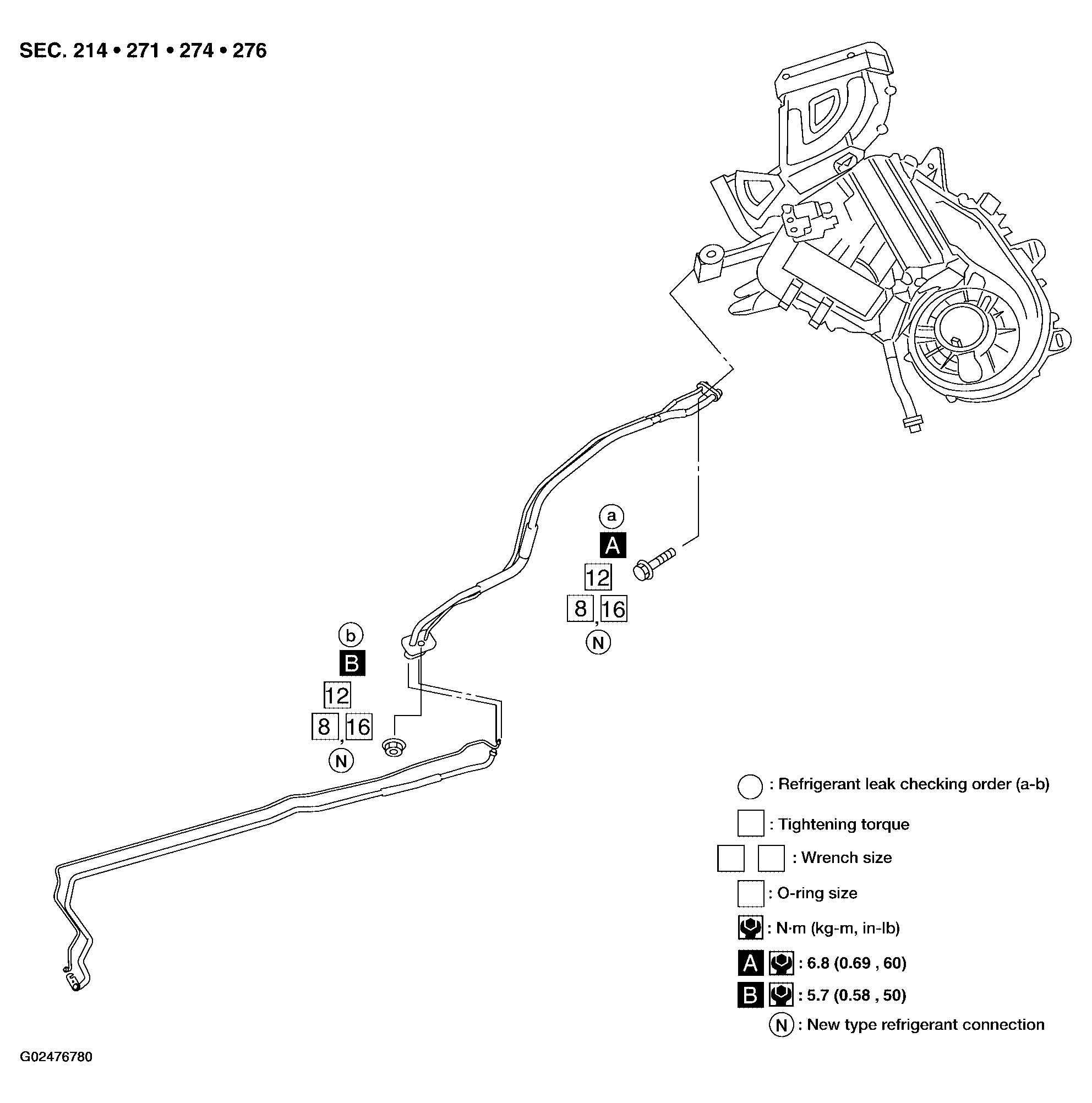

Fig 2: Rear A/C Lines - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "PRECAUTIONS FOR REFRIGERANT CONNECTION ".
