Monitored Item

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

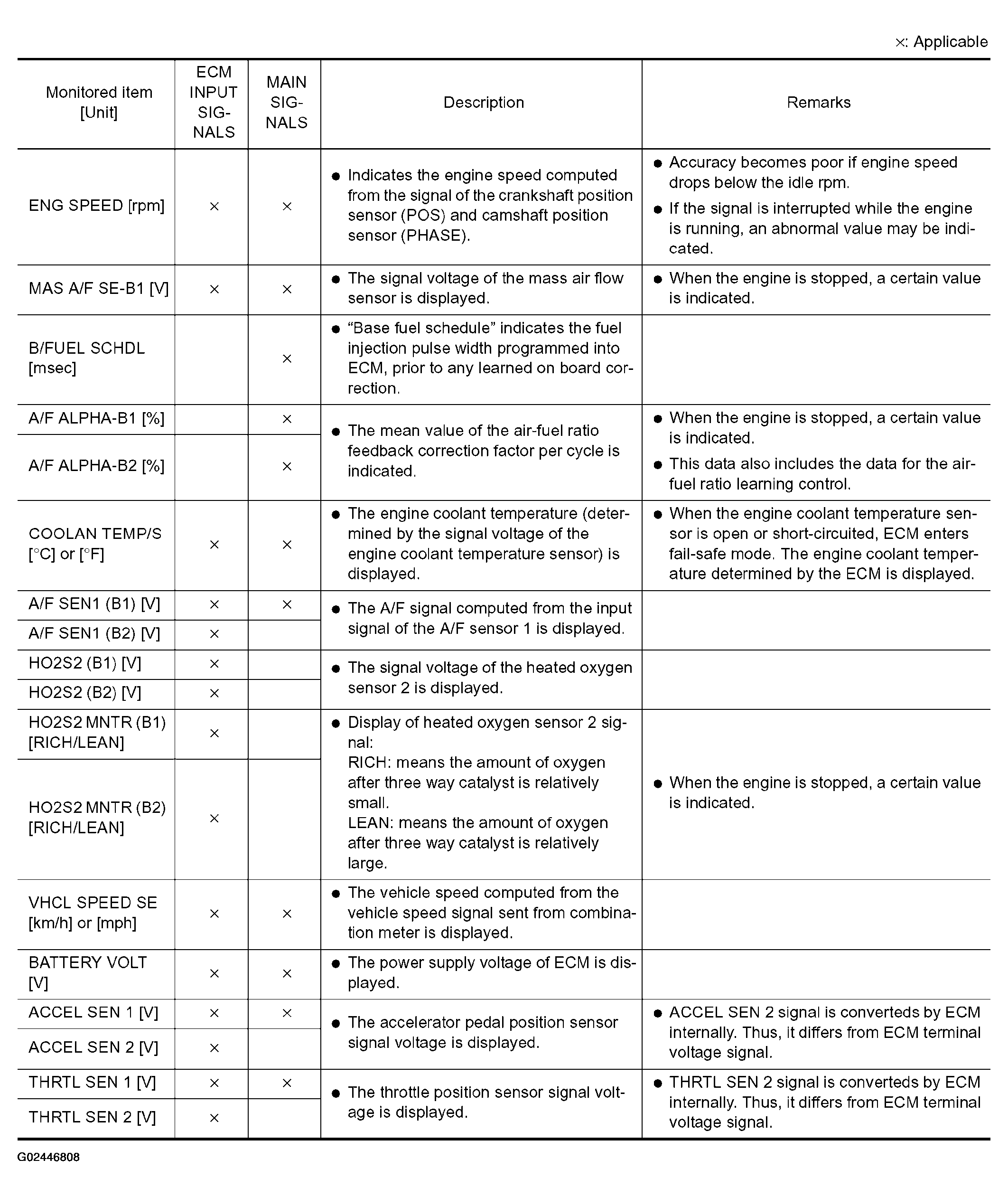

Fig 1: DATA MONITOR MODE - Monitored Item Chart (1 Of 5)

G02446808

Courtesy of NISSAN MOTOR CO., U.S.A.

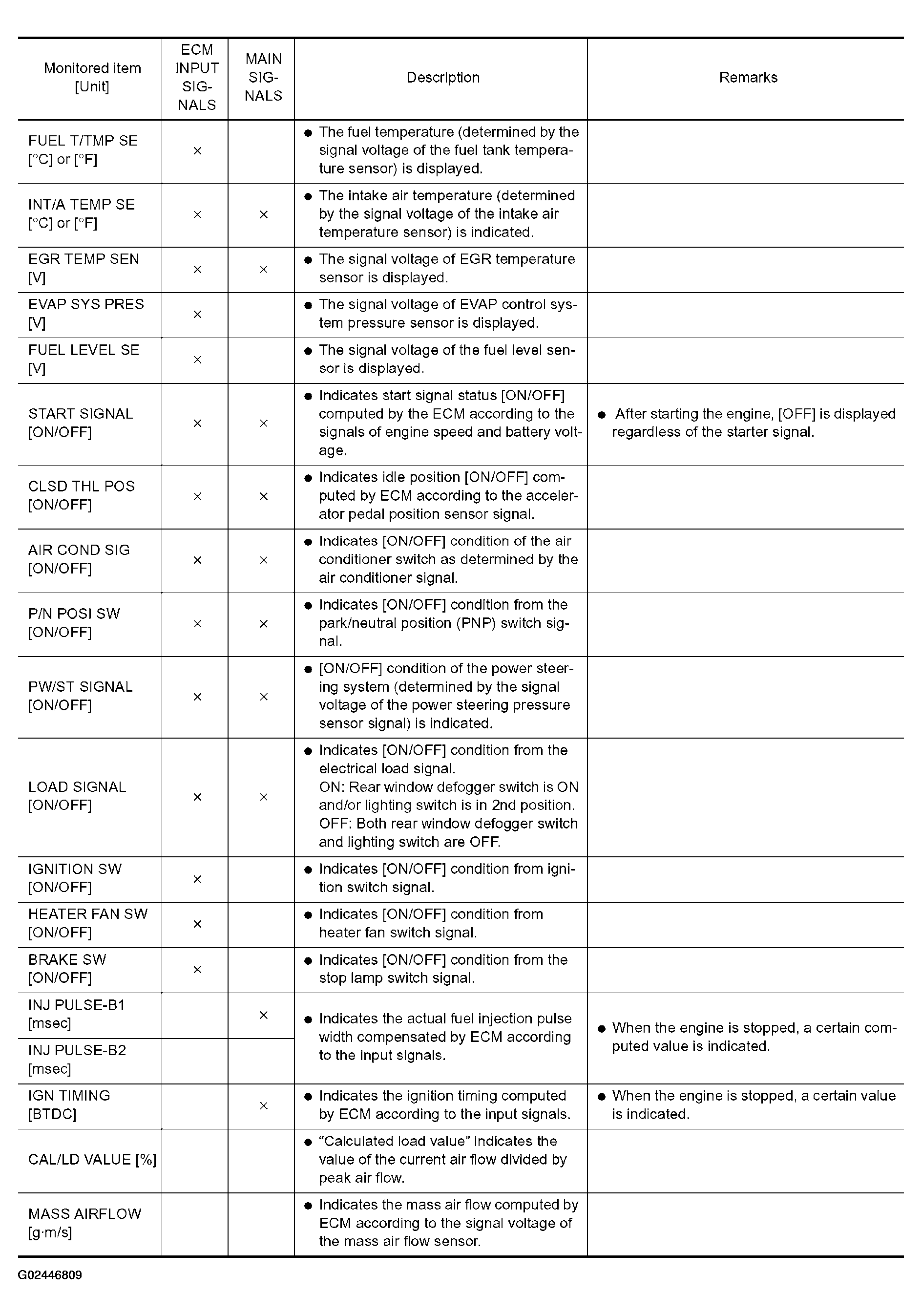

Fig 2: DATA MONITOR MODE - Monitored Item Chart (2 Of 5)

G02446809

Courtesy of NISSAN MOTOR CO., U.S.A.

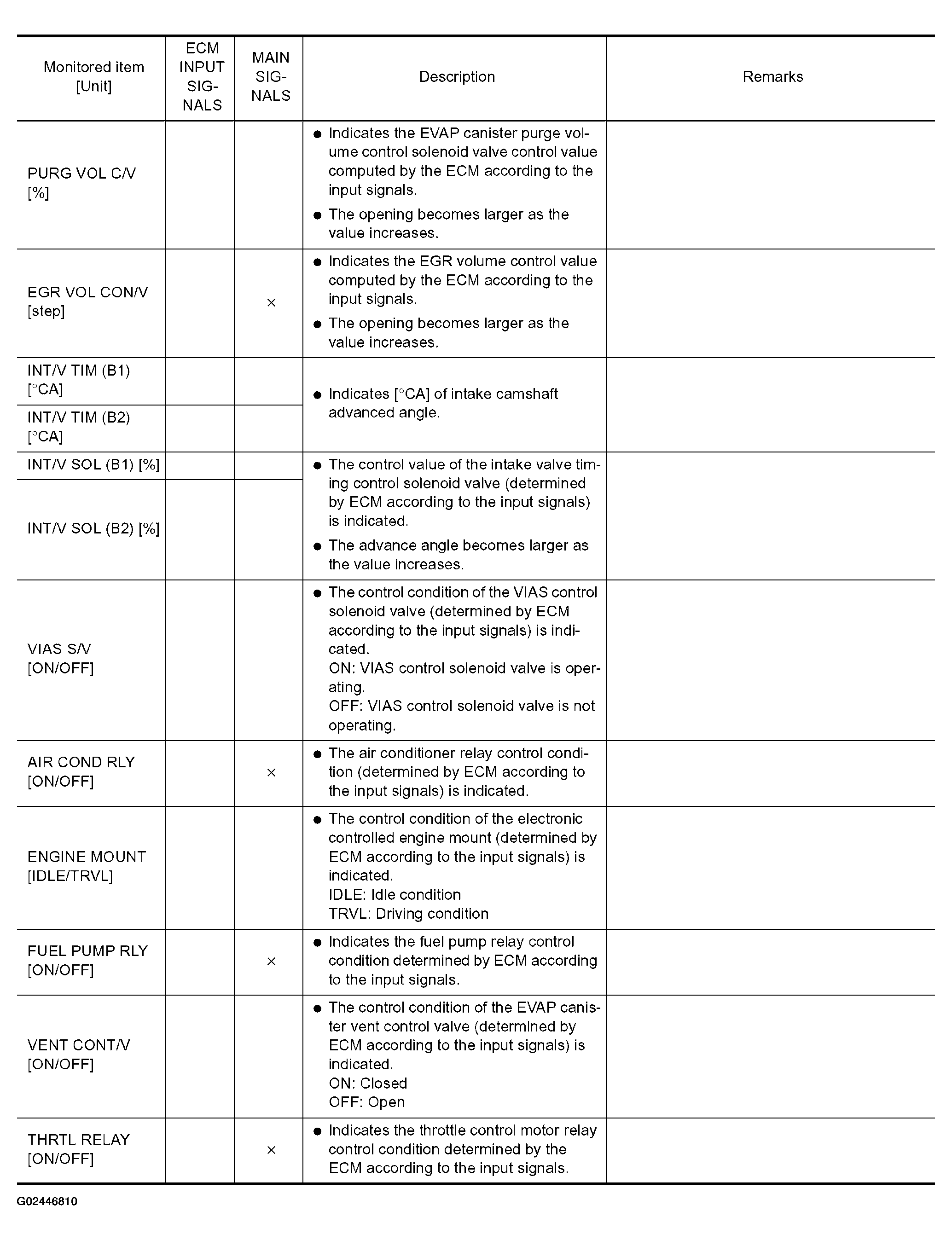

Fig 3: DATA MONITOR MODE - Monitored Item Chart (3 Of 5)

G02446810

Courtesy of NISSAN MOTOR CO., U.S.A.

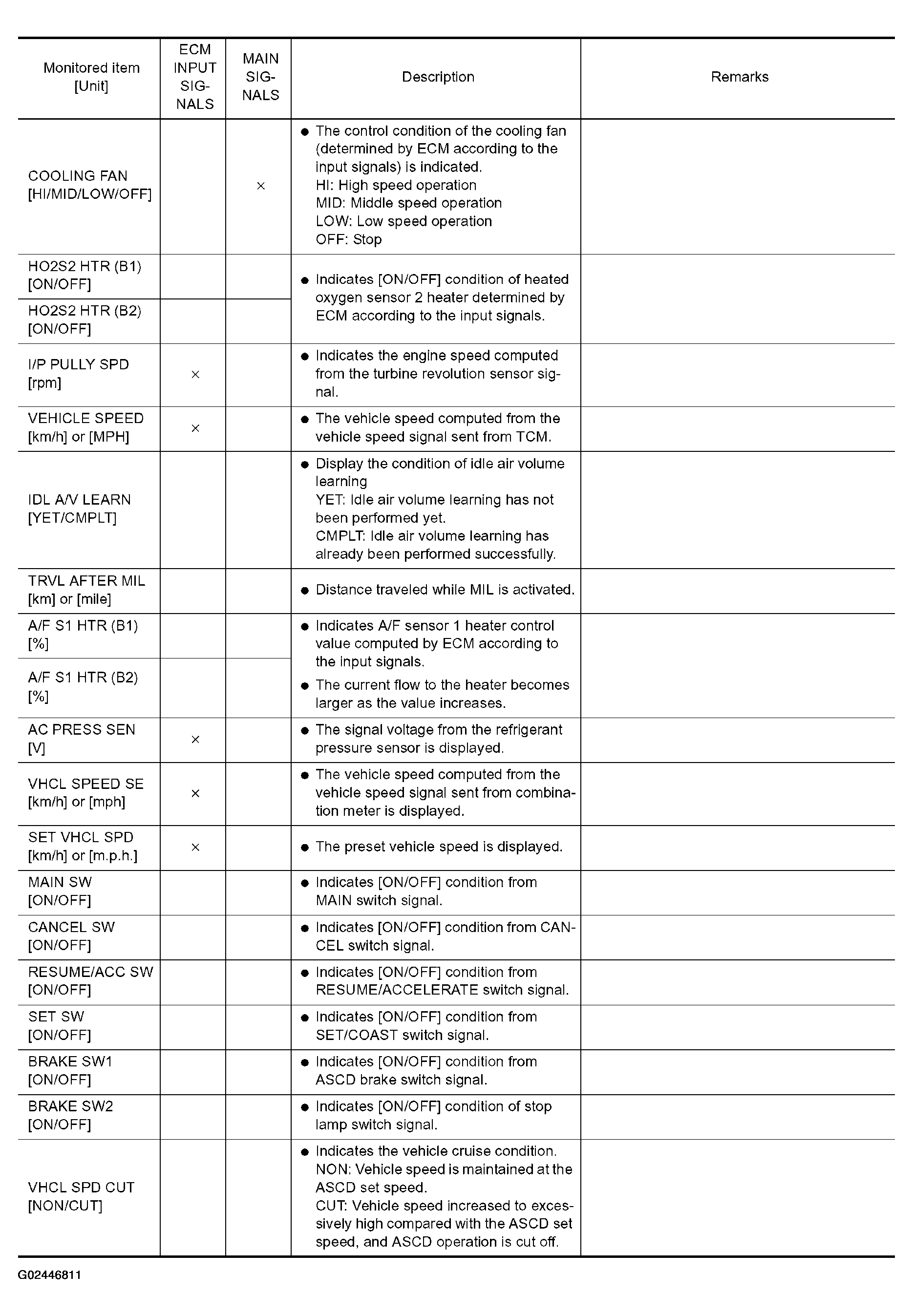

Fig 4: DATA MONITOR MODE - Monitored Item Chart (4 Of 5)

G02446811

Courtesy of NISSAN MOTOR CO., U.S.A.

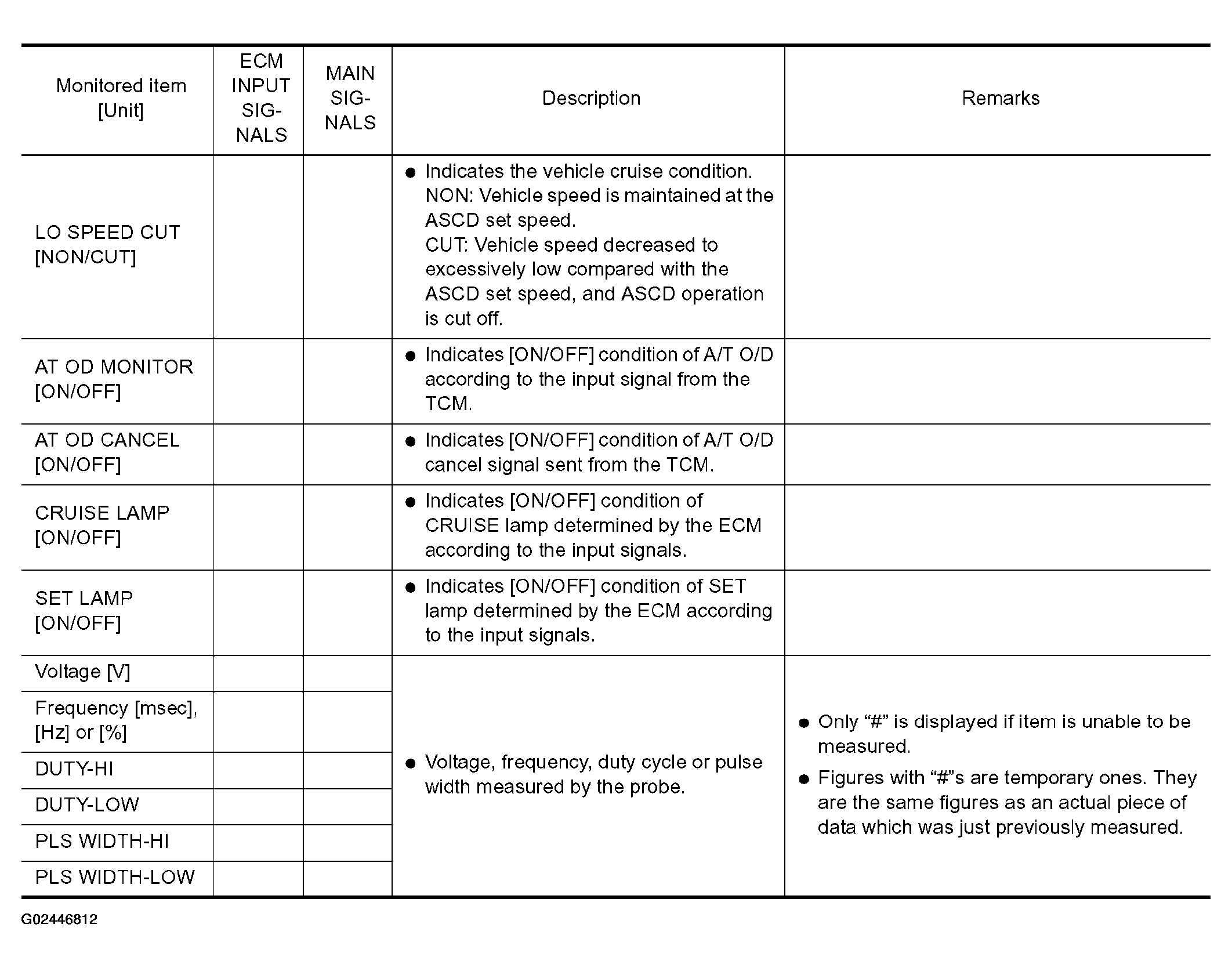

Fig 5: DATA MONITOR MODE - Monitored Item Chart (5 Of 5)

G02446812

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
