Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

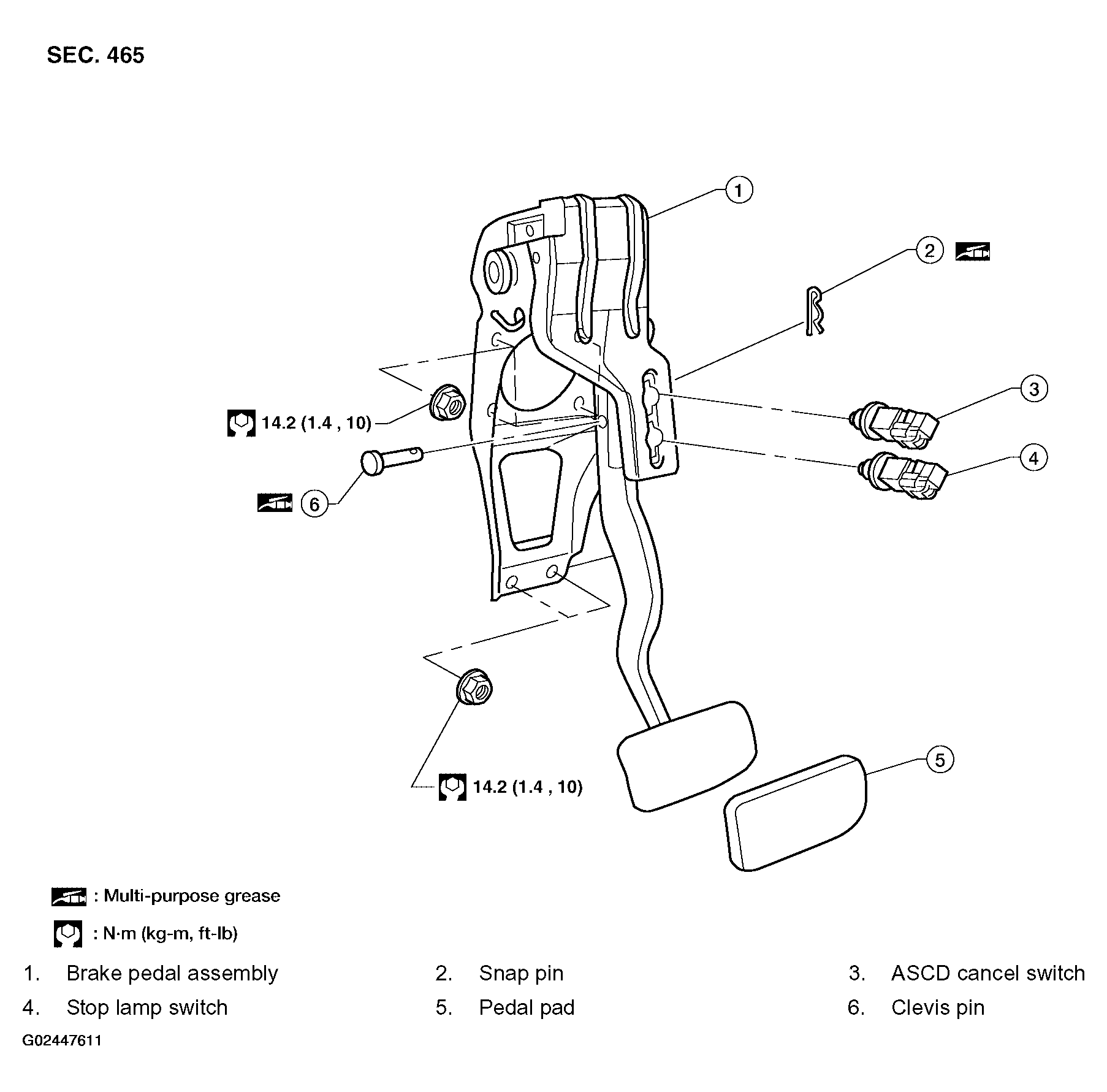

Fig 1: Removing Non-Adjustable Pedal - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

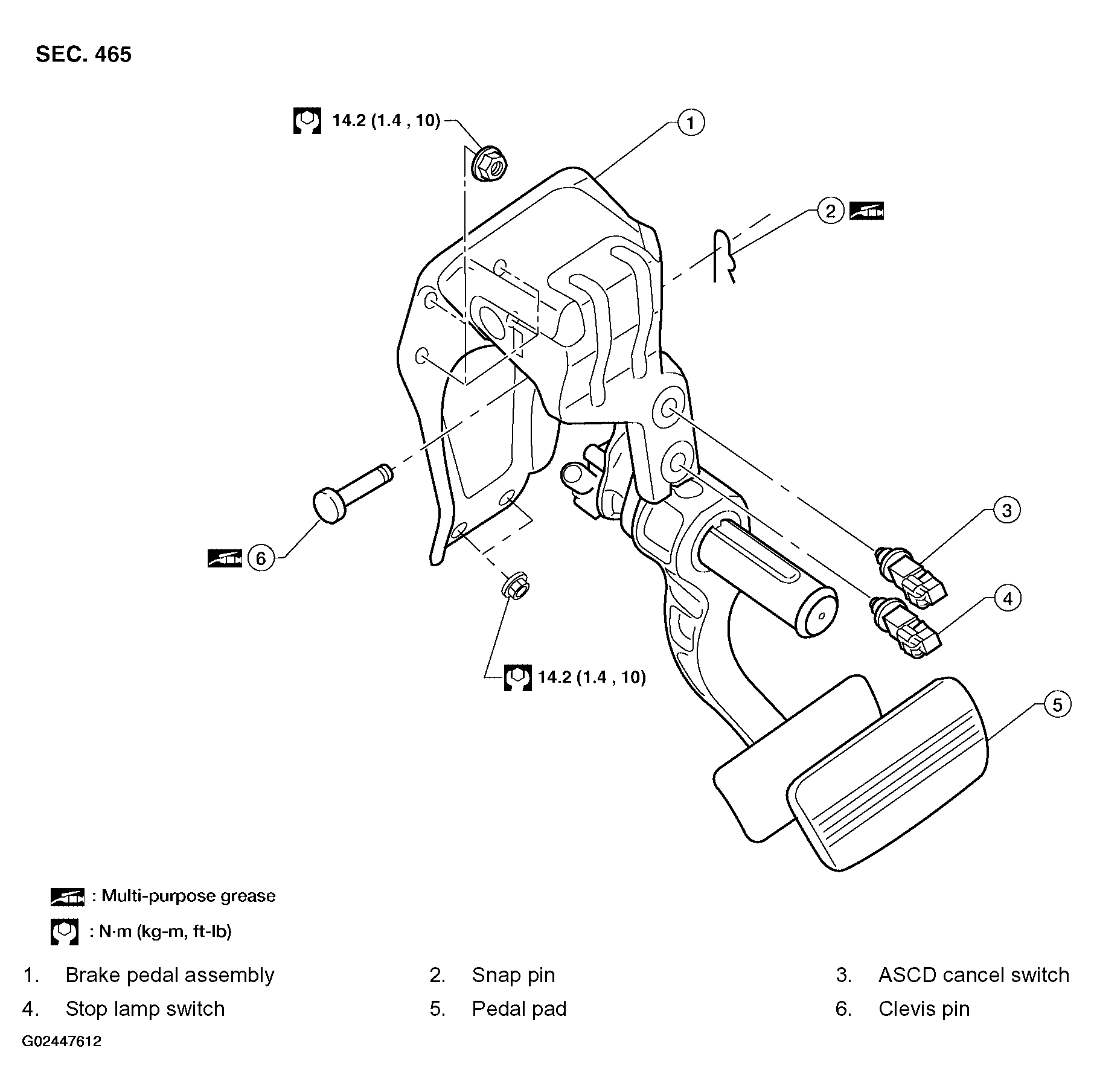

Fig 2: Removing Adjustable Pedal - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Do not damage the brake tube.

CAUTION:

Before removal and installation the accelerator and brake pedals (adjustable type only) must be in the forward most position (closest to the floor). This is to align the base position of the accelerator and brake pedals (adjustable type only).
Do not disassemble the brake pedal adjusting mechanism (adjustable type only).
Avoid damage from dropping the brake pedal assembly during handling.
Keep the brake pedal assembly away from water.
