Revolution Sensor Replacement

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect electrical connector.
Remove revolution sensor from A/T.

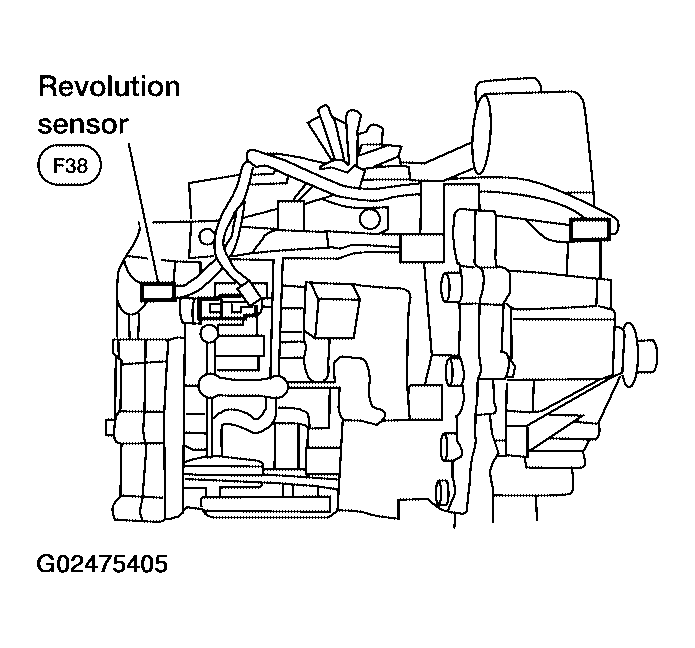

Fig 1: Removing Revolution Sensor From A/T
Courtesy of NISSAN MOTOR CO., U.S.A.
Installation is in the reverse order of removal.
CAUTION:
- Do not reuse O-ring.
- Apply petroleum jelly to O-ring.
- Be careful not to mis-connect because shape of connectors are same as turbine revolution sensor (power train revolution sensor).
NOTE: To prevent mis-connect, revolution sensor harness connector is color taped for identification.
