Conditions for Lock-Up Operation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

When vehicle is driven in 3rd or 4th gear positions, vehicle speed and throttle opening are detected. If the detected values fall within the lock-up zone memorized in the TCM, lock-up is performed.

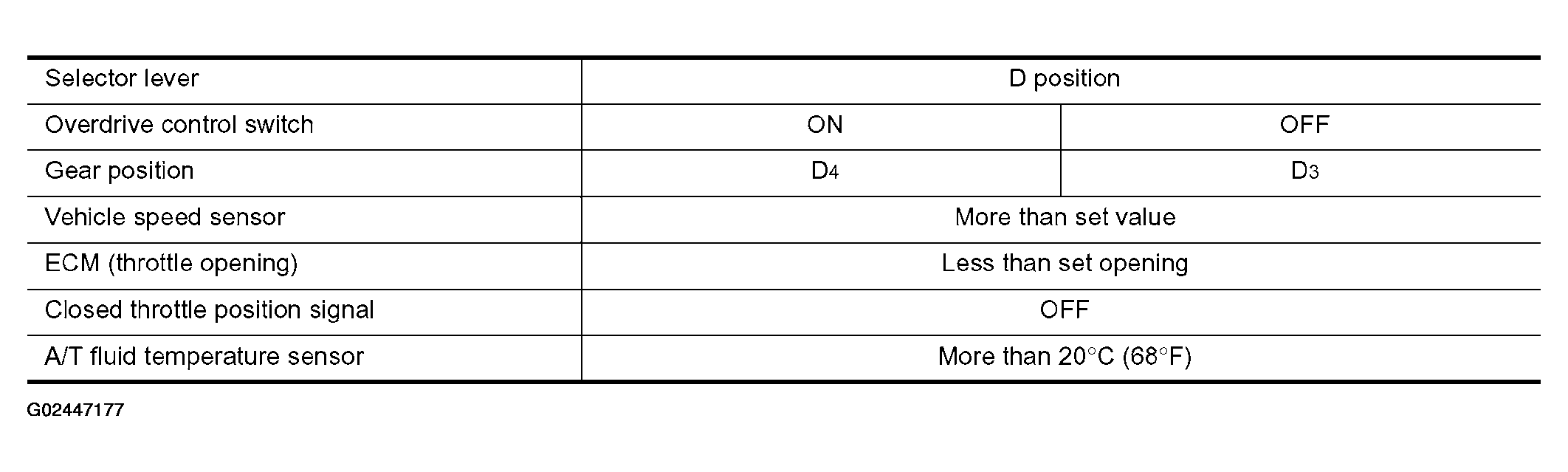

Fig 1: Conditions For Lock-Up Operation Chart
G02447177Courtesy of NISSAN MOTOR CO., U.S.A.
