Control Valve Assembly: Assembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install upper, inter and lower body.

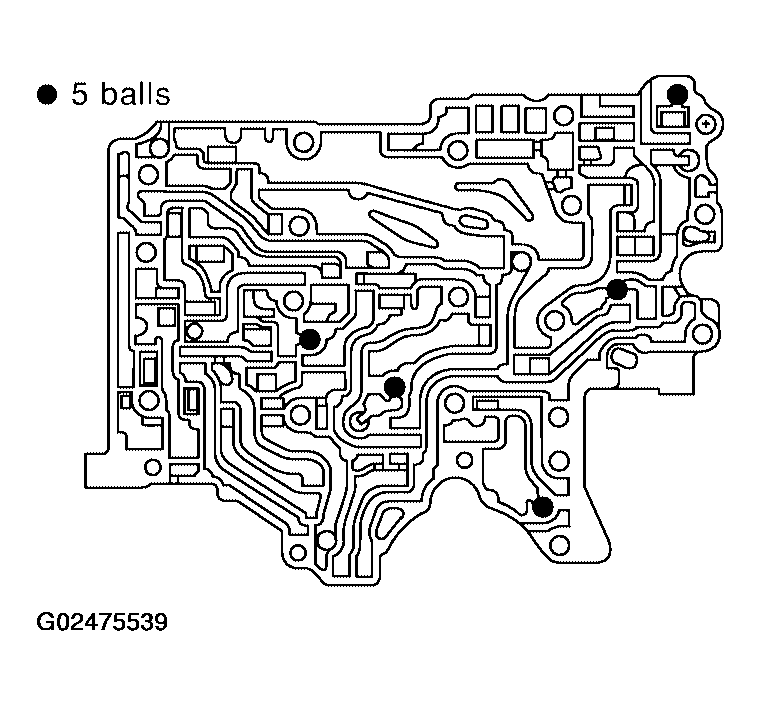

1. Place oil circuit of upper body face up. Install steel balls in their proper positions.

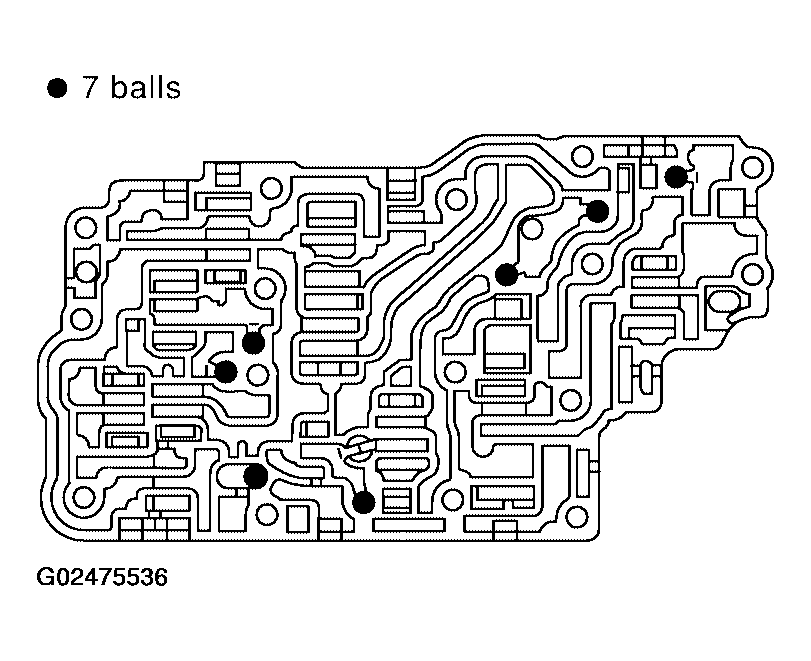

  Fig 1: Installing Steel Balls In Proper Positions
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install reamer bolts f from bottom of upper body. Using reamer bolts as guides, install separating plate as a set.
  CAUTION: Do not reuse separating plate.

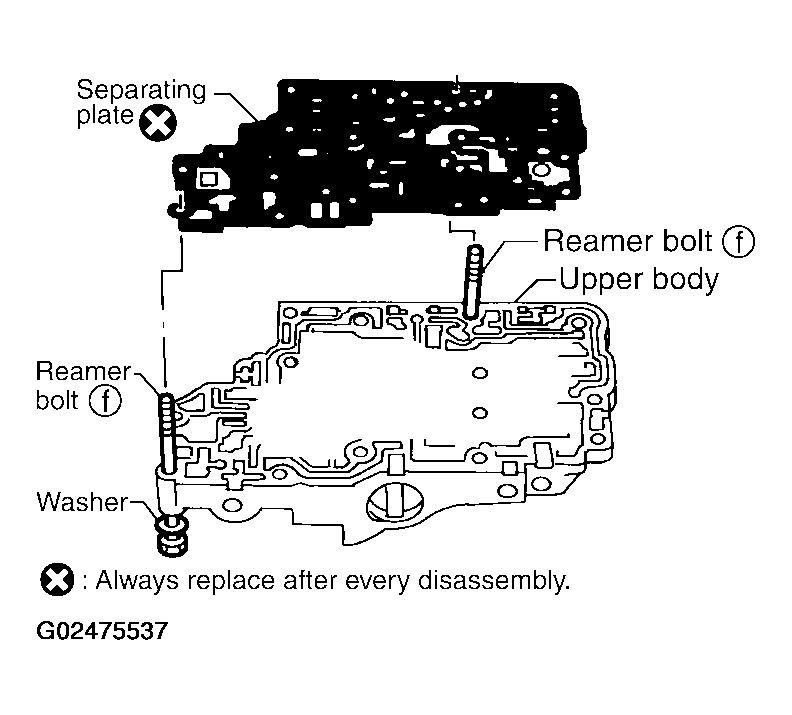

  Fig 2: Installing Separating Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install pilot filter.

  Fig 3: Installing Pilot Filter
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Place lower body as shown in figure (side of inter body face up). Install steel balls in their proper positions.

  Fig 4: Placing Lower Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Install inter body on upper body using reamer bolts f as guides.
  CAUTION: Be careful not to dislocate or drop steel balls.

  Fig 5: Installing Inter Body On Upper Body Using Reamer Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
6. Install check balls and oil cooler relief valve springs in their proper positions in lower body.

  Fig 6: Installing Check Balls & Oil Cooler Relief Valve Springs In Lower Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
7. Install bolts e from bottom of lower body. Using bolts e as guides, install separating plate as a set.
  CAUTION: Do not reuse separating plate.
8. Temporarily install support plates on lower body.

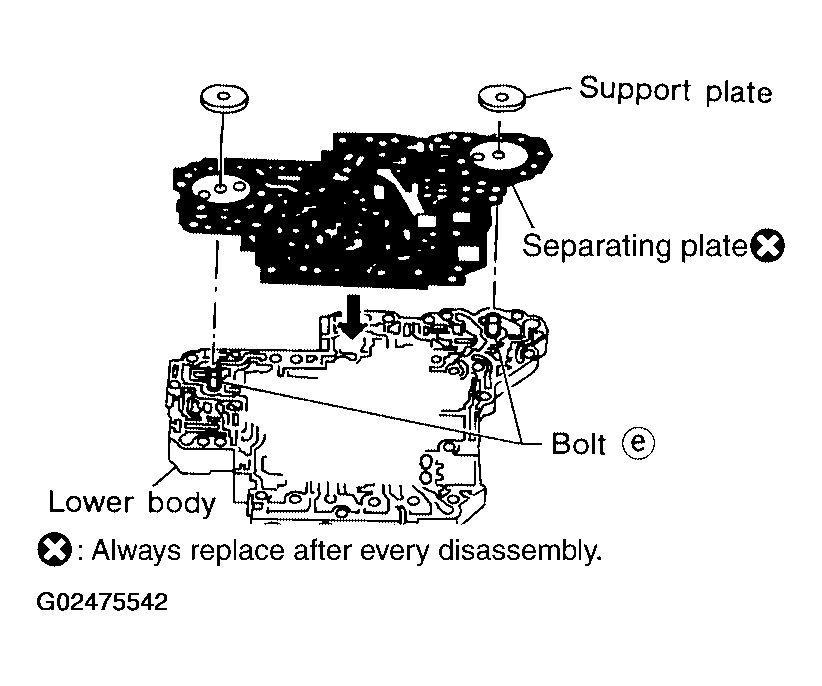

  Fig 7: Installing Support Plates On Lower Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
9. Install lower body on inter body using reamer bolts f as guides and tighten reamer bolts f slightly.

  Fig 8: Installing Lower Body On Inter Body Using Reamer Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-rings to solenoid valves and terminal body.
CAUTION:
- Do not reuse O-rings.
- Apply ATF to O-rings.

  Fig 9: Installing O-Rings To Solenoid Valves & Terminal Body
  Courtesy of NISSAN MOTOR CO., U.S.A.

Install and tighten bolts.

Bolt length, number and location:

Torque Specifications

Bolt symbol	a	b	c	d	e	f	g
Bolt length "l " mm (in)	13.5 (0.531)	58.0 (2.283)	40.0 (1.575)	66.0 (2.598)	33.0 (1.299)	78.0 (3.071)	18.0 (0.709)
Number of bolts	6	3	6	11	2	2	1

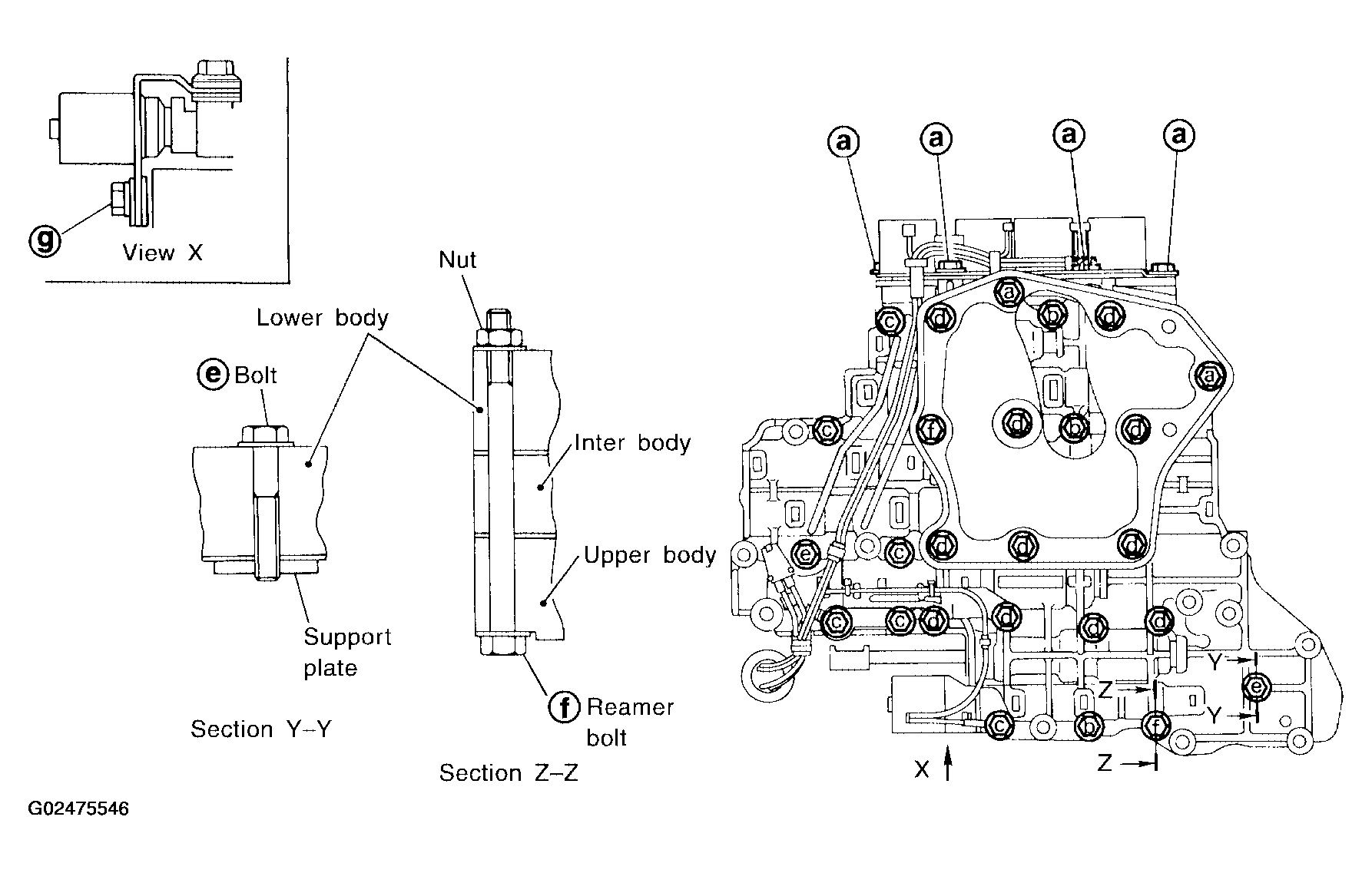

Fig 10: Identifying Bolt Tightening Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

Install and tighten bolts b to specified torque.
- Specified torque
- : Refer to " COMPONENTS ".

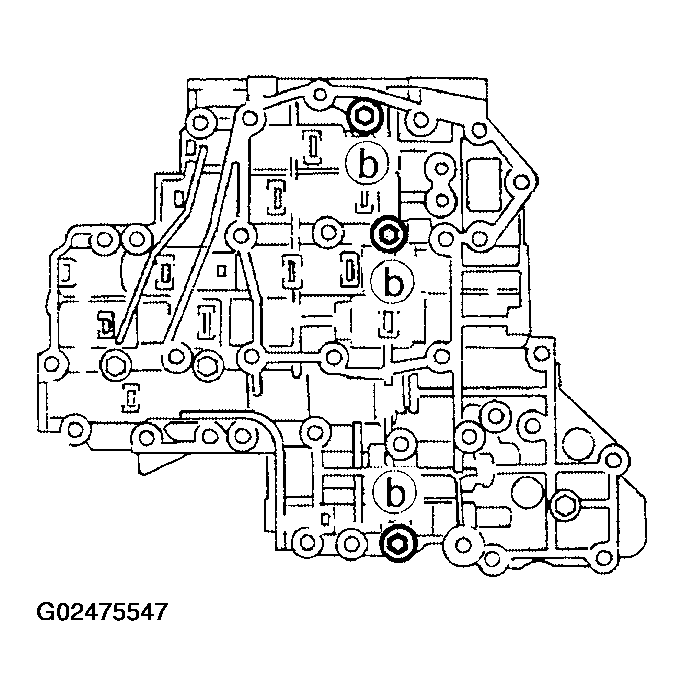

Fig 11: Tightening Bolts In Sequence To Specified Torque
Courtesy of NISSAN MOTOR CO., U.S.A.
Install solenoid valve assembly and line pressure solenoid valve to lower body.

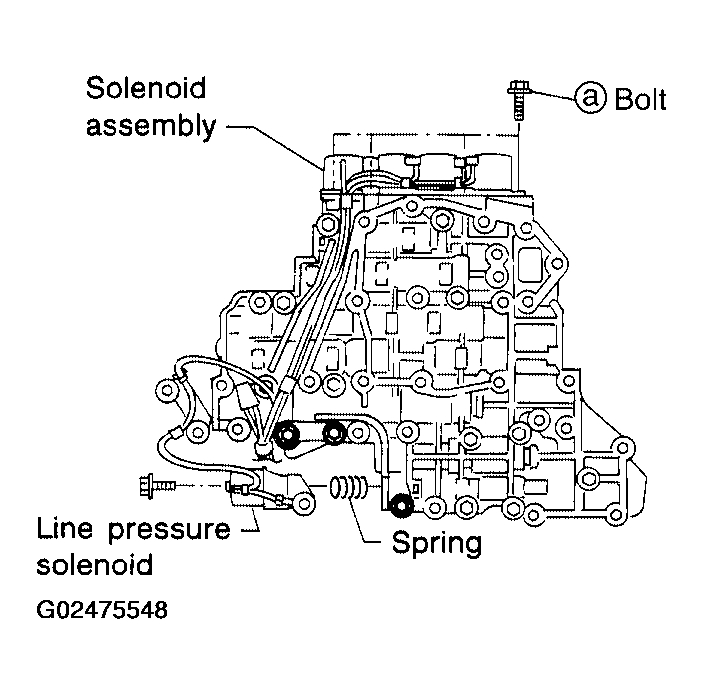

Fig 12: Installing Solenoid Valve Assembly & Line Pressure Solenoid Valve To Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Set oil strainer, then tighten bolts a , d , f and nuts to specified torque.
- Specified torque
- : Refer to " COMPONENTS ".

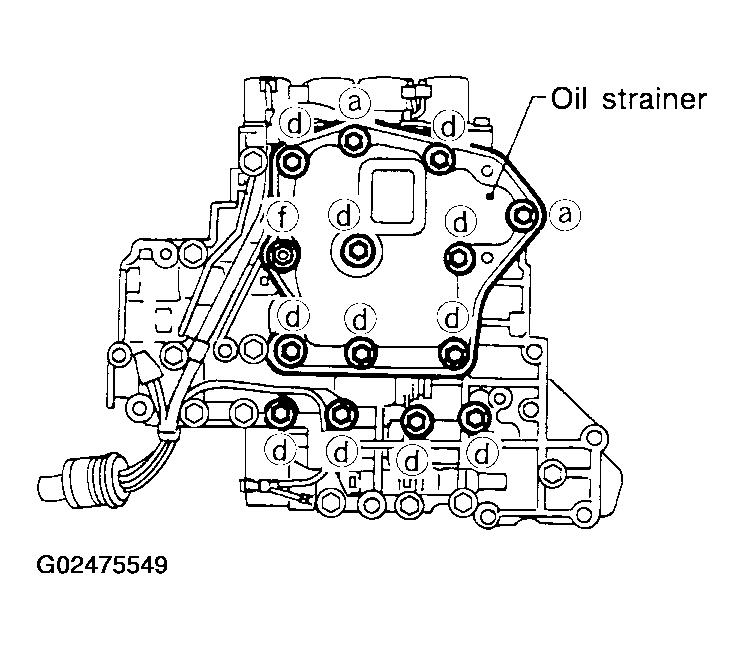

Fig 13: Identifying Oil Strainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten bolts e to specified torque.
- Specified torque
- : Refer to " COMPONENTS ".

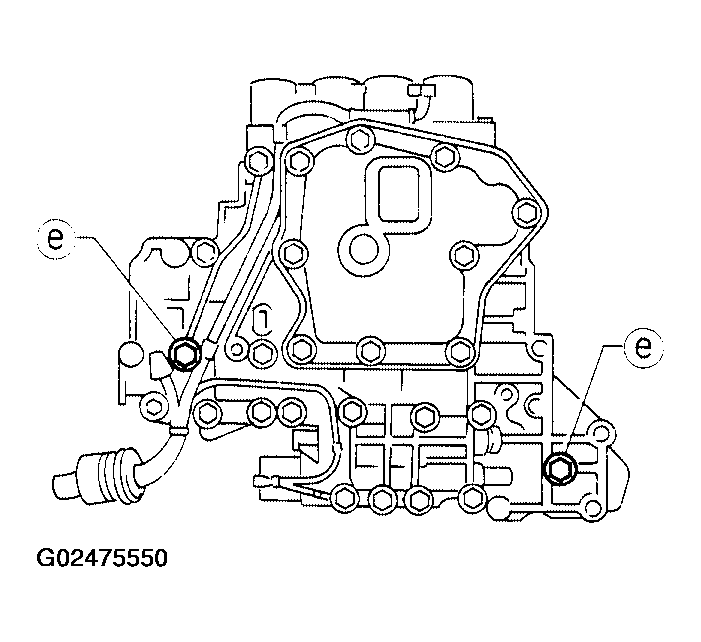

Fig 14: Tightening Bolts To Specified Torque
Courtesy of NISSAN MOTOR CO., U.S.A.
