Removal and Installation of GPS Antenna

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination meter cover. Refer to "COMBINATION METER ".
  2. Remove screws.
  3. Remove center console lower cover. Refer to "INSTRUMENT PANEL ASSEMBLY ".
    Fig 1: Removing Center Console Lower Cover Screws
    G02477480Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Disconnect GPS antenna connector and remove GPS antenna and feeder assembly out the top.
  5. Installation is in the reverse order of removal.

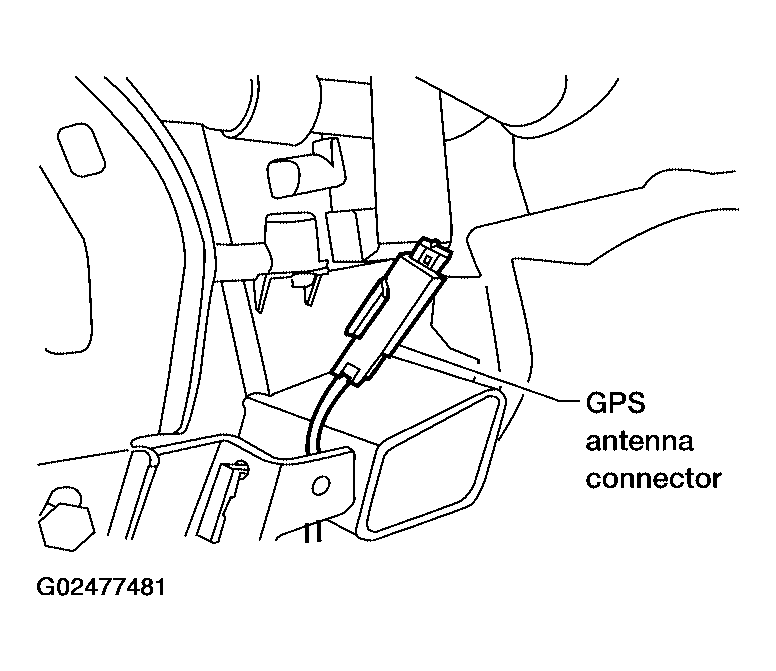

    Fig 2: Removing GPS Antenna & Feeder Assembly
    G02477481Courtesy of NISSAN MOTOR CO., U.S.A.
