Mirror Motor LH Circuit Check

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR LH MECHANISM
Check the following items.

Operation malfunction caused by a foreign object caught in door mirror face edge.

OK or NG
- OK : GO TO 2.
- NG : Repair the malfunctioning parts, and check the symptom again.

CHECK FUNCTION

With CONSULT-II

Check the operation with "MIRROR MOTOR LH" in the ACTIVE TEST.

ACTIVE TEST ITEM - MIRROR MOTOR LH

Test item	Description
MIRROR MOTOR LH	The mirror motor LH moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive signal.

Fig 1: CONSULT-II Display - ACTIVE TEST

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

GO TO 3.

OK or NG

OK : Mirror motor LH circuit is OK.
NG : GO TO 3.

CHECK MIRROR MOTOR LH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror LH.
3. Check continuity between automatic drive positioner control unit connector M41 terminals 16, 31, 32 and door mirror LH connector D13 terminals 9, 10, 11.
  16 (O) - 11 (O) : Continuity should exist.

  31 (R/Y) - 10 (R/Y) : Continuity should exist.

  32 (BR) - 9 (BR) : Continuity should exist.

  Fig 2: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M41 Terminals 16, 31, 32 & Door Mirror LH Connector D13 Terminals 9, 10, 11
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between automatic drive positioner control unit connector M41 terminals 16, 31, 32 and ground.
  16 (O) - Ground : Continuity should not exist.

  31 (R/Y) - Ground : Continuity should not exist.

  32 (BR) - Ground : Continuity should not exist.
OK or NG
- OK : GO TO 4.
- NG : Repair or replace harness.
CHECK MIRROR MOTOR SIGNAL
1. Turn ignition switch to ACC.
2. Check voltage between door mirror LH connector and ground.

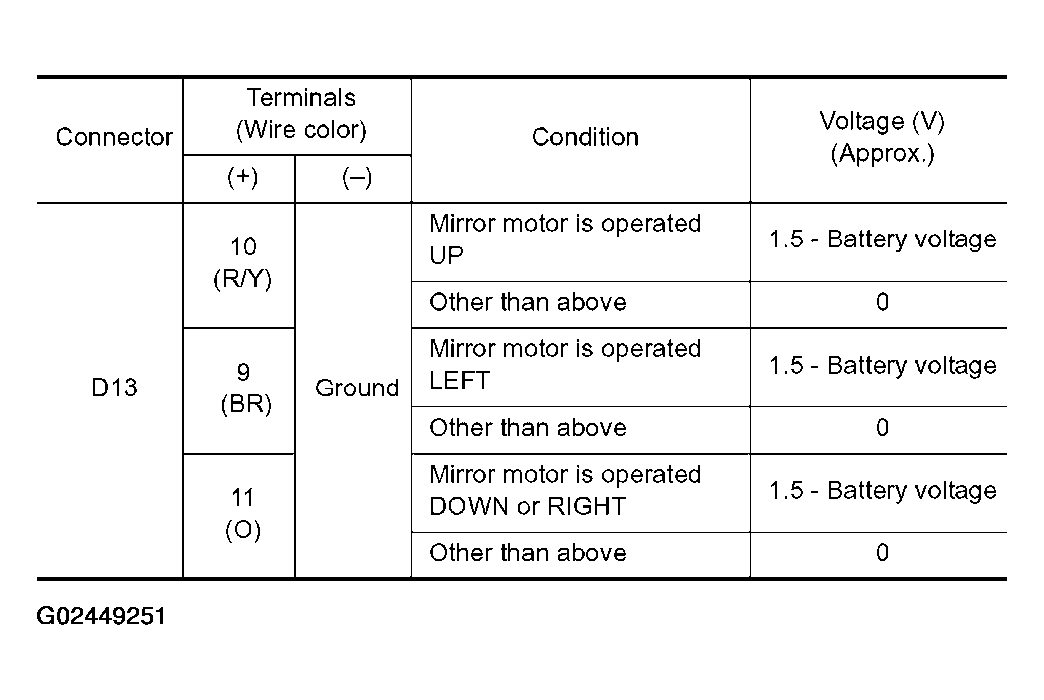

  Fig 3: Door Mirror LH Connector Terminal Voltage Reference Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 4: Checking Voltage Between Door Mirror LH Connector Terminals 9, 10, 11 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : Replace door mirror LH. Refer to DOOR MIRROR ASSEMBLY .
- NG : Repair or replace harness.
