Mirror Motor RH Circuit Check

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR MIRROR RH MECHANISM

    Check the following items.

    Operation malfunction caused by a foreign object caught in door mirror face edge.

    OK or NG

    • OK : GO TO 2.
    • NG : Repair the malfunctioning parts, and check the symptom again.
  2. CHECK FUNCTION

    With CONSULT-II

    Check the operation with "MIRROR MOTOR RH" in the ACTIVE TEST.

    ACTIVE TEST ITEM - MIRROR MOTOR RH

    Test item Description
    MIRROR MOTOR RH The mirror motor RH moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive signal.
    Fig 1: CONSULT-II Display - ACTIVE TEST
    G02449253Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 3.

    OK or NG

    • OK : Mirror motor RH circuit is OK.
    • NG : GO TO 3.
  3. CHECK DOOR MIRROR RH CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror RH connector.
    3. Check continuity between automatic drive positioner control unit connector M41 terminals 14, 15, 30 and door mirror RH connector D113 terminals 9, 10, 11.

      14 (GR/R) - 10 (GR/R) : Continuity should exist.

      15 (V/W) - 9 (V/W) : Continuity should exist.

      30 (SB) - 11 (SB) : Continuity should exist.

      Fig 2: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M41 Terminals 14, 15, 30 & Door Mirror RH Connector D113 Terminals 9, 10, 11
      G02449254Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check continuity between automatic drive positioner control unit connector M41 terminals 14, 15, 30 and ground.

      14 (GR/R) - Ground : Continuity should not exist.

      15 (V/W) - Ground : Continuity should not exist.

      30 (SB) - Ground : Continuity should not exist.

    OK or NG

    • OK : GO TO 4.
    • NG : Repair or replace harness.
  4. CHECK MIRROR MOTOR SIGNAL
    1. Turn ignition switch to ACC.
    2. Check voltage between door mirror RH connector and ground.

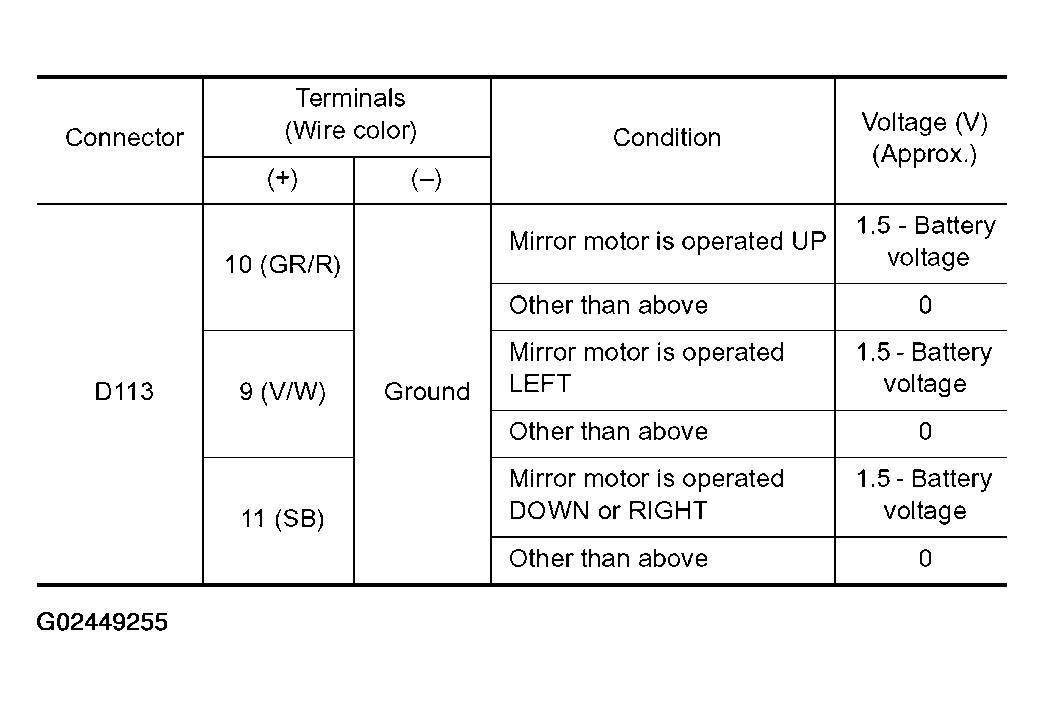

      Fig 3: Door Mirror RH Connector Terminal Voltage Reference Chart
      G02449255Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 4: Checking Voltage Between Door Mirror RH Connector Terminals 9, 10, 11 & Ground
      G02449256Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : Replace door mirror motor RH. Refer to DOOR MIRROR ASSEMBLY .
    • NG : Repair or replace harness.
