Clutch And Band Chart

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

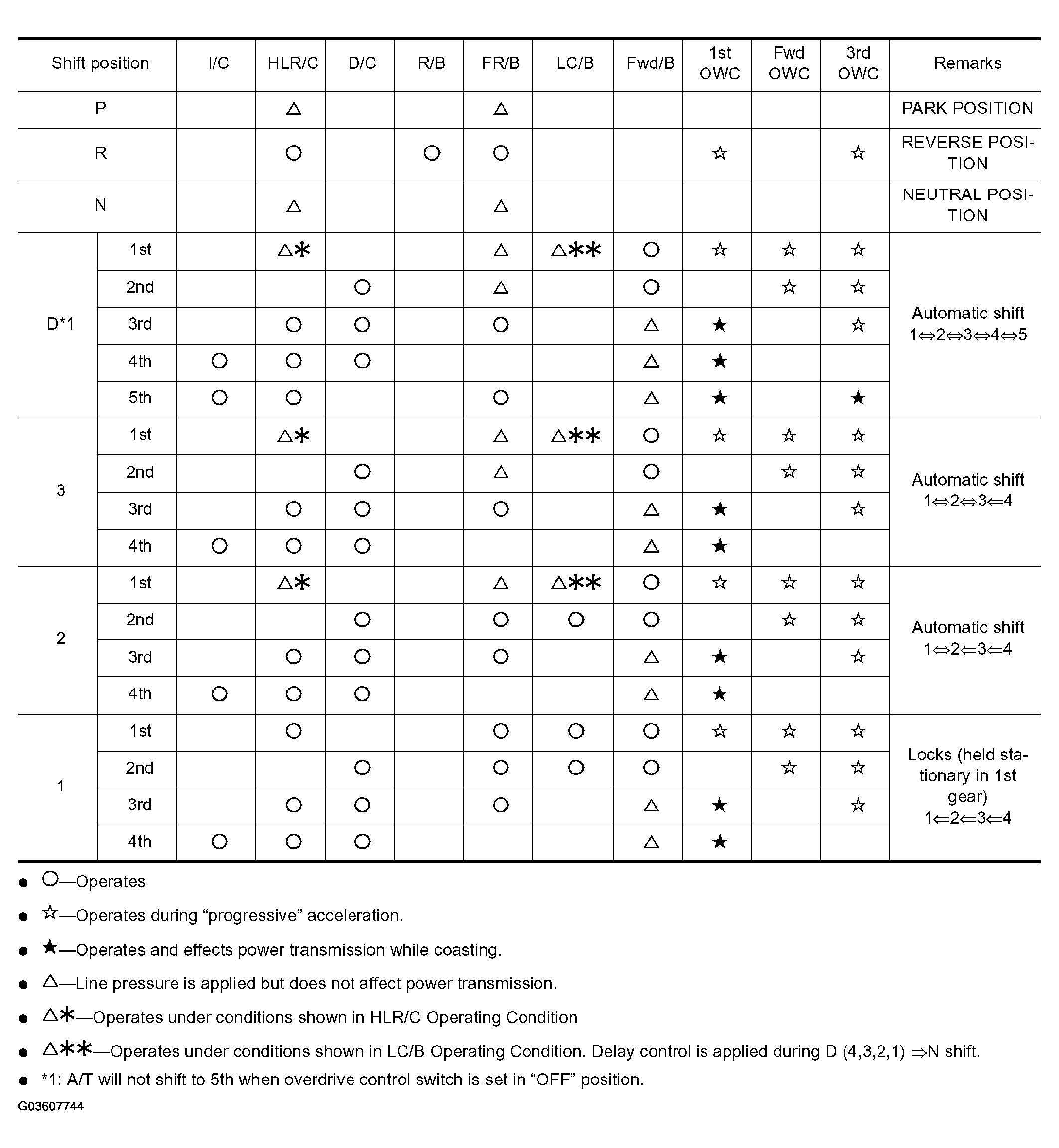

Fig 1: Clutch And Band Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

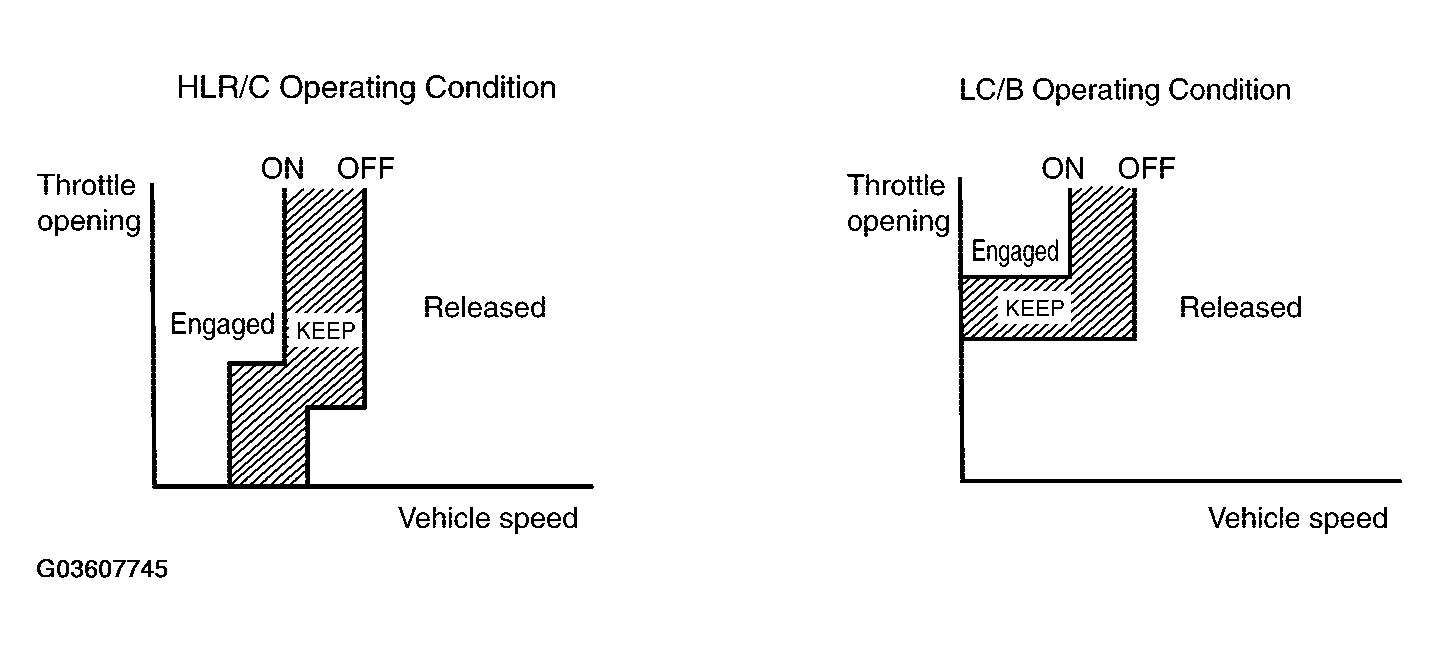

Fig 2: Throttle Opening Angle/Vehicle Speed Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
