Direct Clutch: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove snap ring from direct clutch drum using suitable tool.
  2. Remove drive plates, driven plates and retaining plate from direct clutch drum.

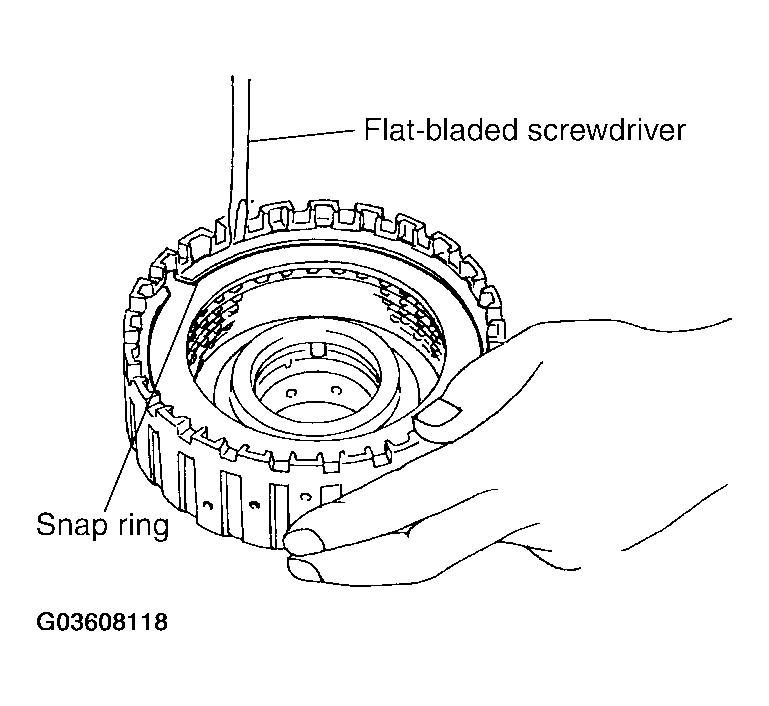

    Fig 1: Removing Snap Ring From Direct Clutch Drum
    G03608118Courtesy of NISSAN MOTOR CO., U.S.A.
