Front Air Control: Removal

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid C. Refer to "CLUSTER LID C ".
Remove the four screws securing the front air control to cluster lid C.
Remove the front air control.

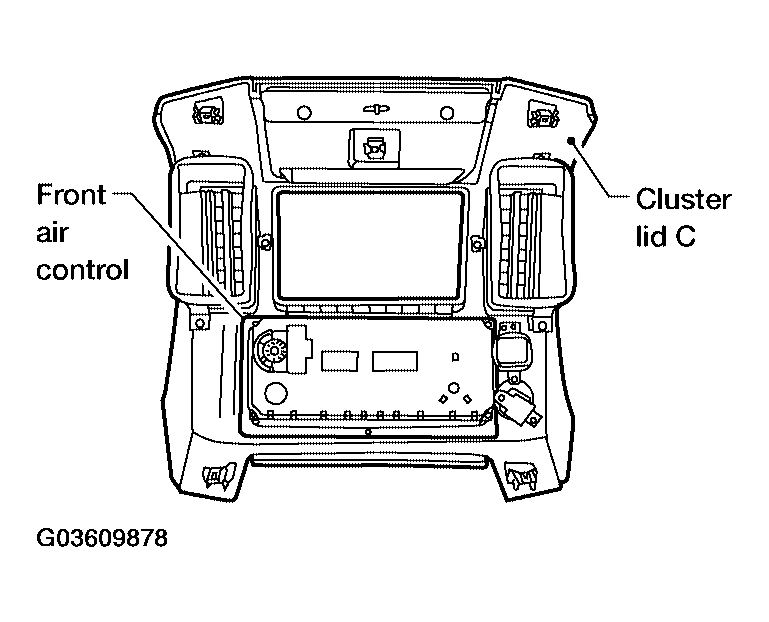

Fig 1: Removing Front Air Control
Courtesy of NISSAN MOTOR CO., U.S.A.
