Triple-Cone Synchronizer

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

The 2nd gear is equipped with a triple-cone synchronizer to reduce the operating force of the shift lever.

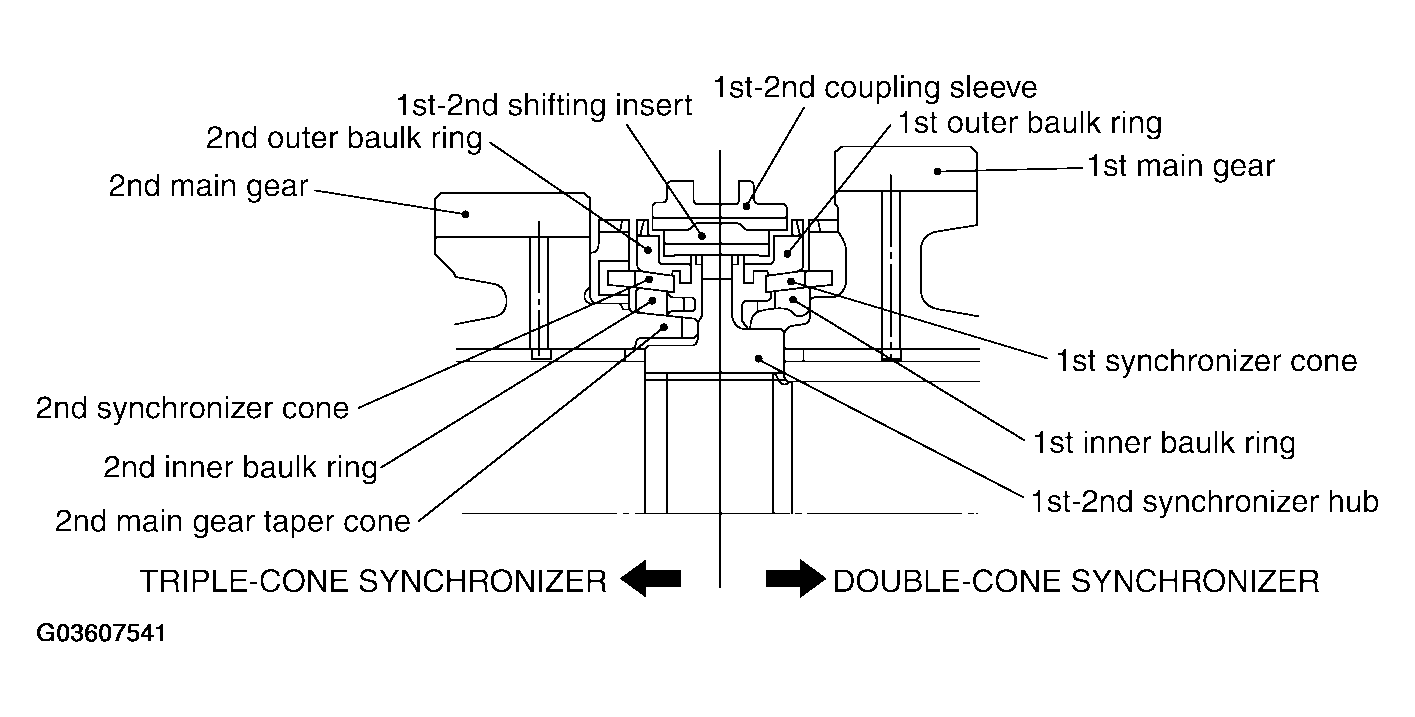

Fig 1: Identifying Triple-Cone Synchronizer Components
G03607541Courtesy of NISSAN MOTOR CO., U.S.A.
