Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inner sockets.
  2. Install the large-diameter side of the boots to the gear housing assembly.
  3. Install the small-diameter side of the boots to the groove of the inner sockets.

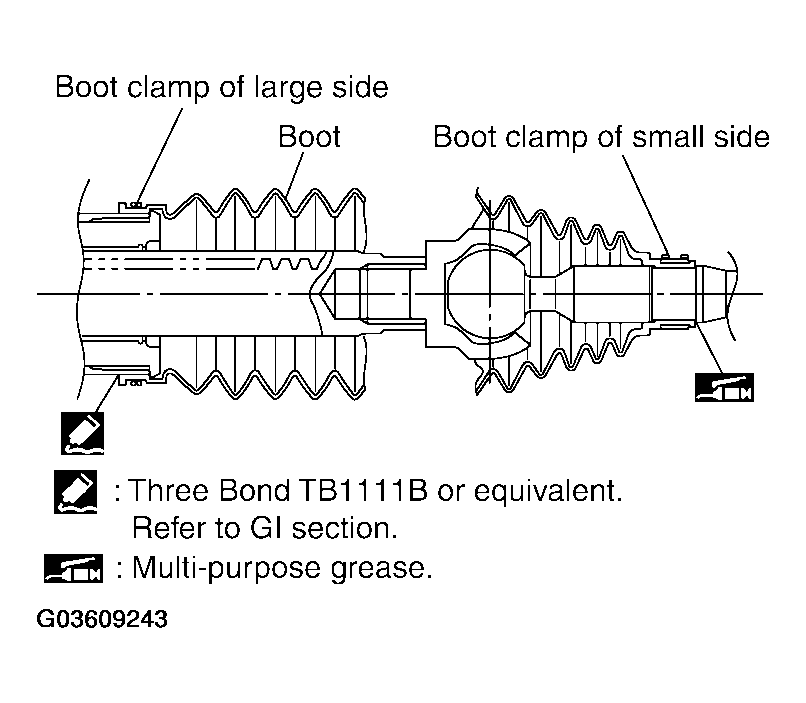

    Fig 1: Installing Small-Diameter Side Of Boots To Groove Of Inner Sockets
    G03609243Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install the boot clamps to the boots, as shown.
    CAUTION: Do not reuse the large-diameter boot clamps.

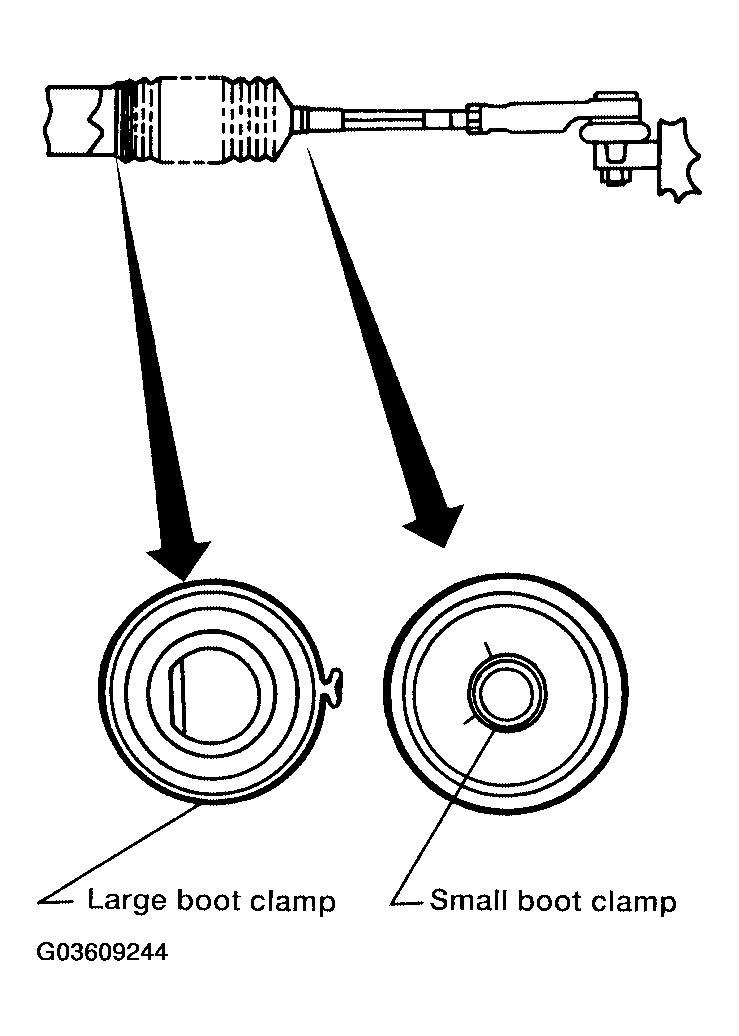

    Fig 2: Installing Boot Clamps To Boots
    G03609244Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Crimp the large-diameter boot clamps, using Tool.

    Tool number : KV40107300 (-)

  6. Install the cylinder tubes to the gear housing assembly.
  7. Install the lock nuts and outer sockets to the inner sockets.
    Fig 3: Installing Lock Nuts And Outer Sockets To Inner Sockets
    G03609245Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Thread the outer sockets onto the inner sockets to the specified length "L", then tighten the lock nuts to the specified torque. Refer to "DISASSEMBLY AND ASSEMBLY ". Reconfirm that the tie-rod length "L" is within specification.

    Maximum inner socket length "L" : 84.0 mm (3.31 in)

    Fig 4: Locating Lock Nut
    G03609246Courtesy of NISSAN MOTOR CO., U.S.A.
