Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

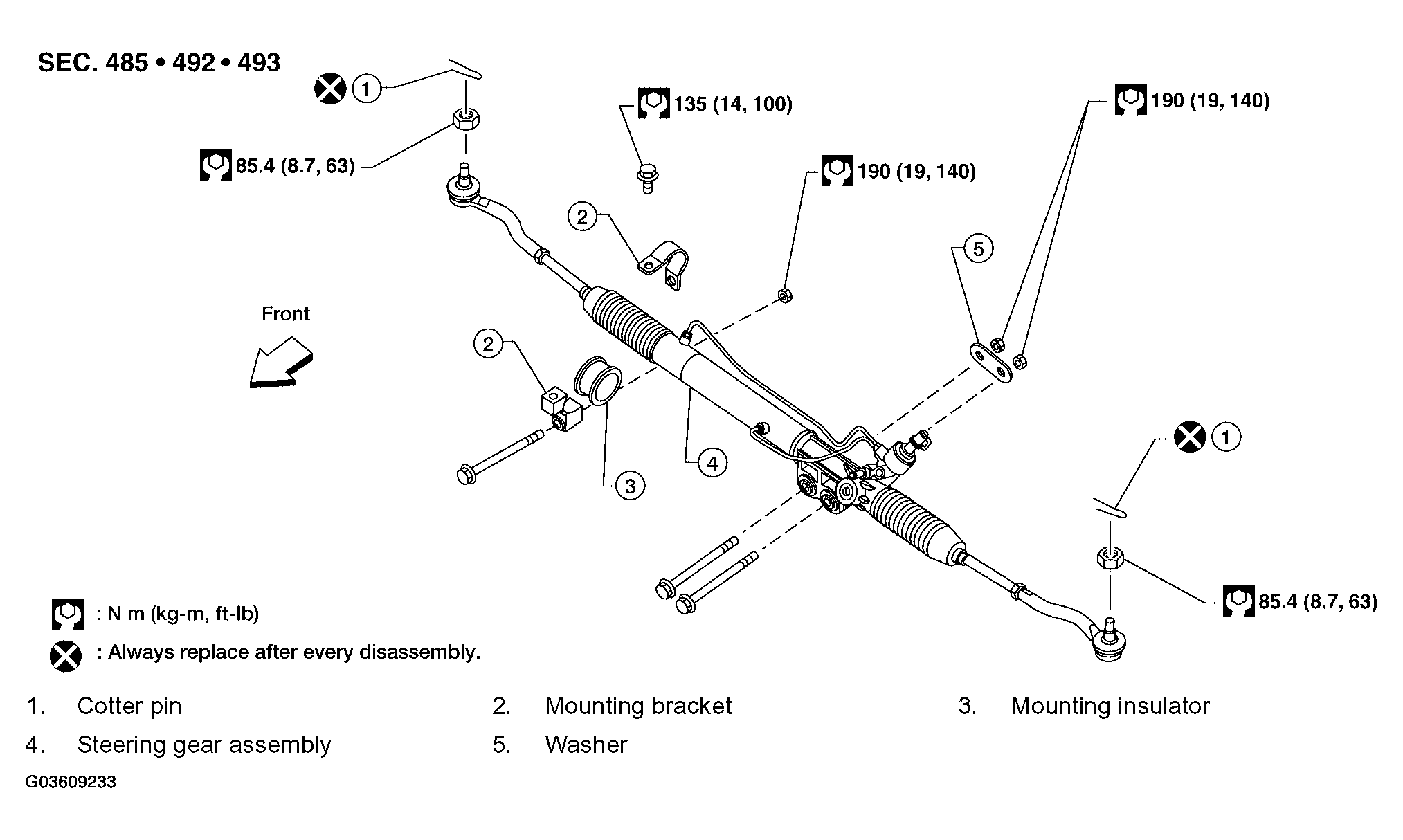

Fig 1: Exploded View Of Power Steering Gear And Linkage With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Spiral cable may snap due to steering operation if the steering column is separated from the steering gear assembly. Therefore secure the steering wheel to avoid turning.
