Schematic EIS0067H

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

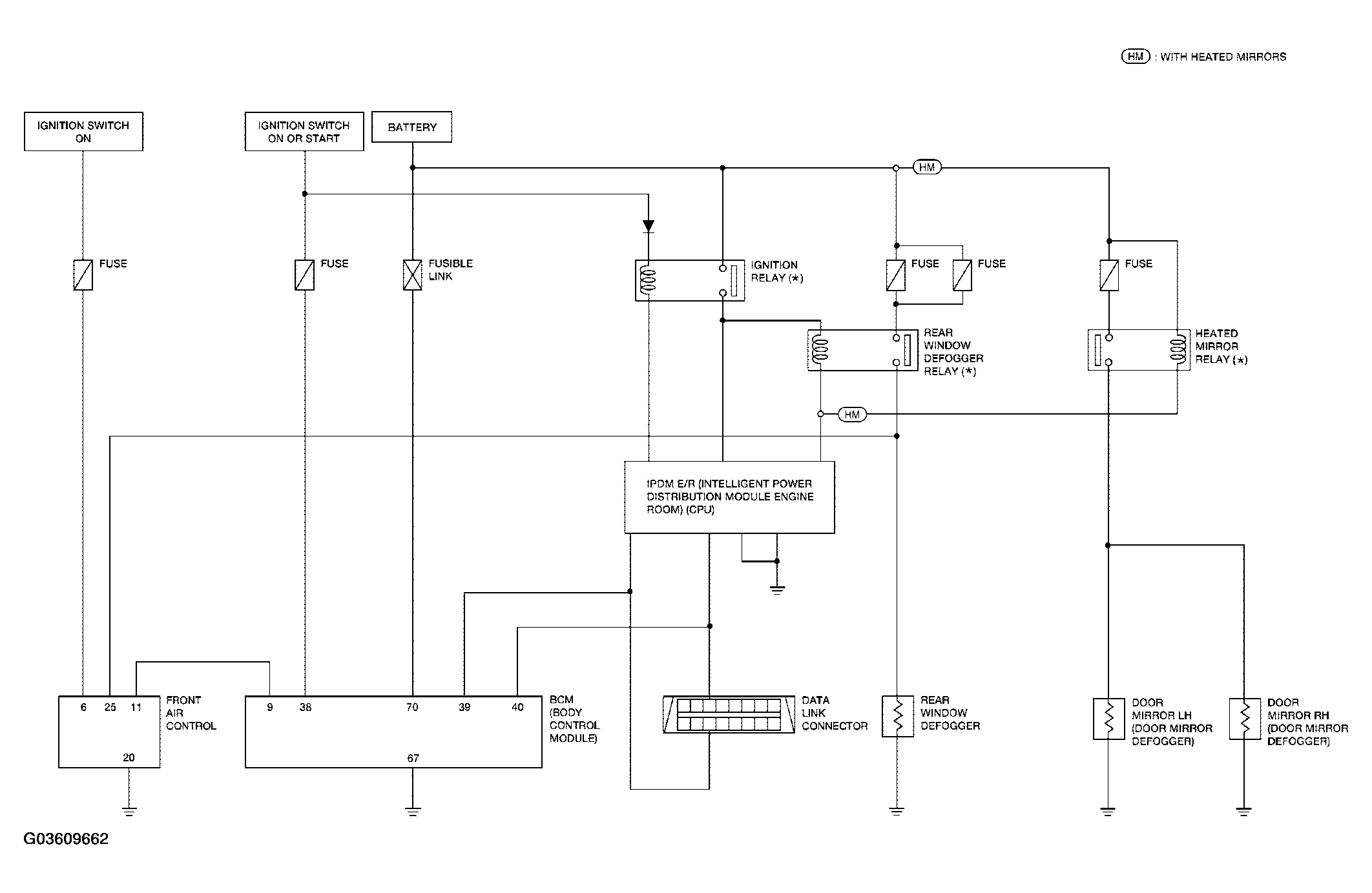

Fig 1: Rear Window Defogger - Schematic Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
