Intake Sensor
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

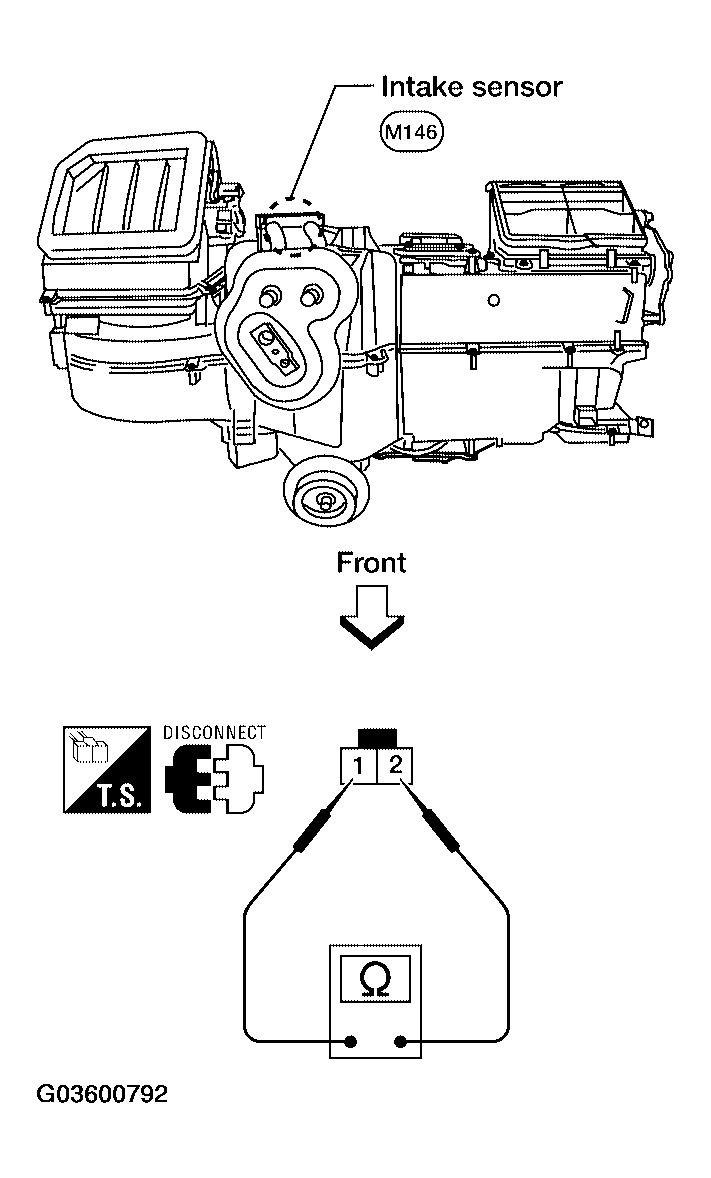

After disconnecting intake sensor connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table below.
INTAKE SENSOR TEMPERATURE & RESISTANCE SPECIFICATIONS
| Temperature °C (°F) | Resistance kΩ |
|---|---|
| -15 (5) | 209.0 |
| -10 (14) | 160.0 |
| -5 (23) | 123.0 |
| 0 (32) | 95.8 |
| 5 (41) | 74.9 |
| 10 (50) | 58.9 |
| 15 (59) | 46.7 |
| 20 (68) | 37.3 |
| 25 (77) | 30.0 |
| 30 (86) | 24.2 |
| 35 (95) | 19.7 |
| 40 (104) | 16.1 |
| 45 (113) | 13.2 |
If NG, replace intake sensor. Refer to "INTAKE SENSOR ".
