Wheel Alignment (Unladen )
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

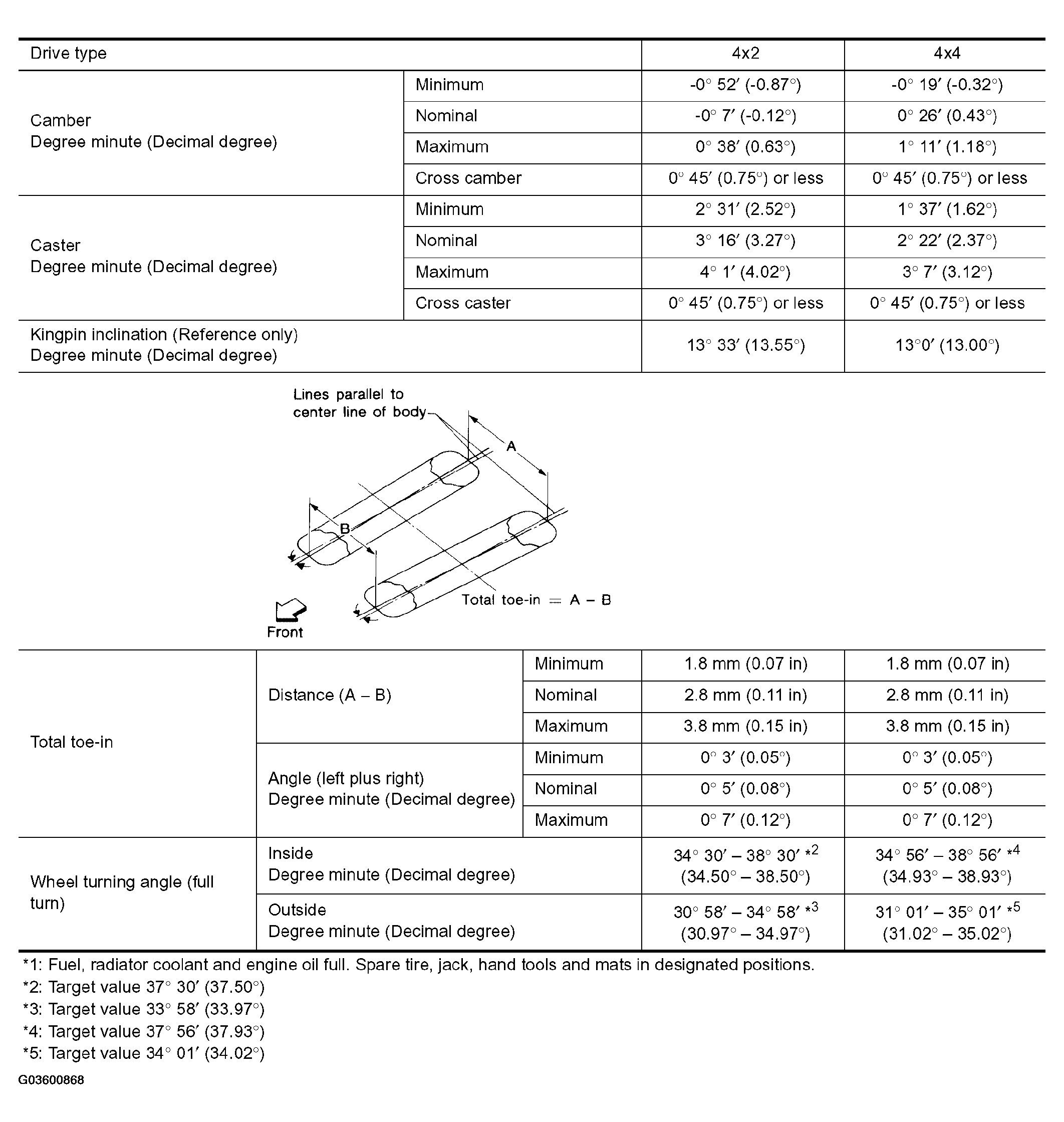

Courtesy of NISSAN MOTOR CO., U.S.A. WHEEL ALIGNMENT - SERVICE DATA AND SPECIFICATIONS
| Drive type |
4x2 |
4x4 |
| Camber Degree minute (Decimal degree) |
Minimum |
-0° 52' (-0.87°) |
-0° 19' (-0.32°) |
| Nominal |
-0° 7' (-0.12°) |
0° 26' (0.43°) |
| Maximum |
0° 38' (0.63°) |
1° 11' (1.18°) |
| Cross camber |
0° 45' (0.75°) or less |
0° 45' (0.75°) or less |
| Caster Degree minute (Decimal degree) |
Minimum |
2° 31' (2.52°) |
1° 37' (1.62°) |
| Nominal |
3° 16' (3.27°) |
2° 22' (2.37°) |
| Maximum |
4° 1' (4.02°) |
3° 7' (3.12°) |
| Cross caster |
0° 45' (0.75°) or less |
0° 45' (0.75°) or less |
| Kingpin inclination (Reference only) Degree minute (Decimal degree) |
13° 33' (13.55°) |
13°0' (13.00°) |
|
|
| Total toe-in |
Distance (A - B) |
Minimum |
1.8 mm (0.07 in) |
1.8 mm (0.07 in) |
| Nominal |
2.8 mm (0.11 in) |
2.8 mm (0.11 in) |
| Maximum |
3.8 mm (0.15 in) |
3.8 mm (0.15 in) |
| Angle (left plus right) Degree minute (Decimal degree) |
Minimum |
0° 3' (0.05°) |
0° 3' (0.05°) |
| Nominal |
0° 5' (0.08°) |
0° 5' (0.08°) |
| Maximum |
0° 7' (0.12°) |
0° 7' (0.12°) |
| Wheel turning angle (full turn) |
Inside Degree minute (Decimal degree) |
34° 30' - 38° 30' (34.50° - 38.50°) |
34° 56' - 38° 56' (34.93° - 38.93°) |
| Outside Degree minute (Decimal degree) |
30° 58' - 34° 58' (30.97° - 34.97°) |
31° 01' - 35° 01' (31.02° - 35.02°) |
