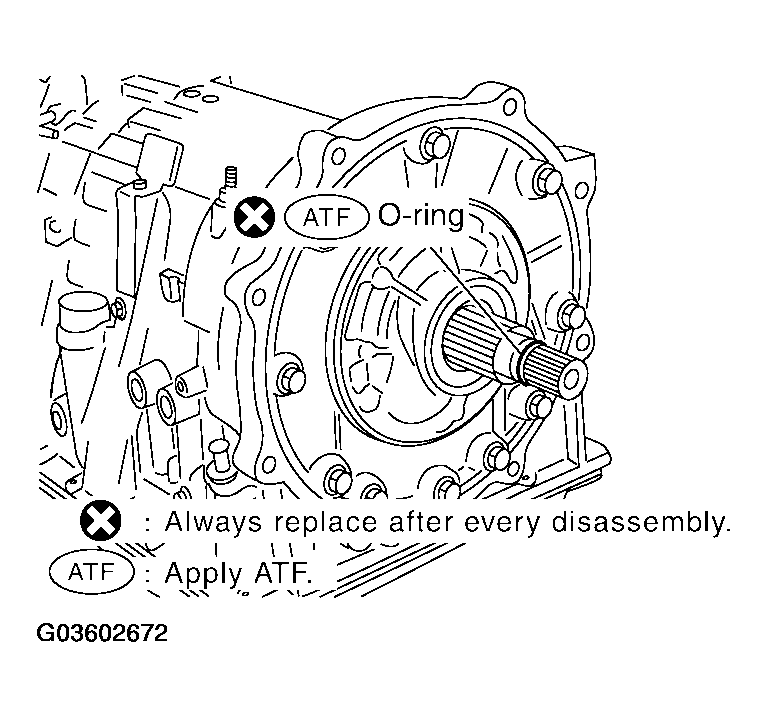

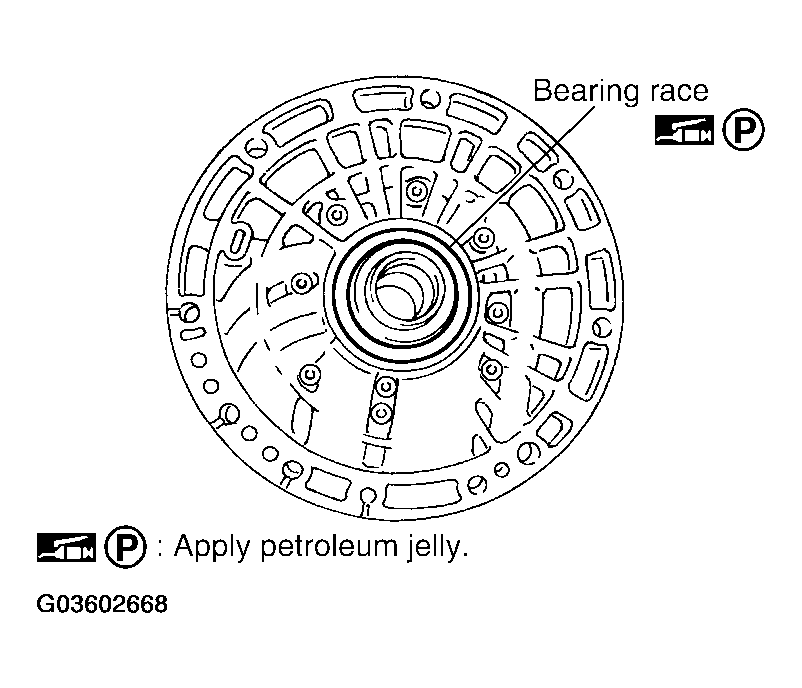

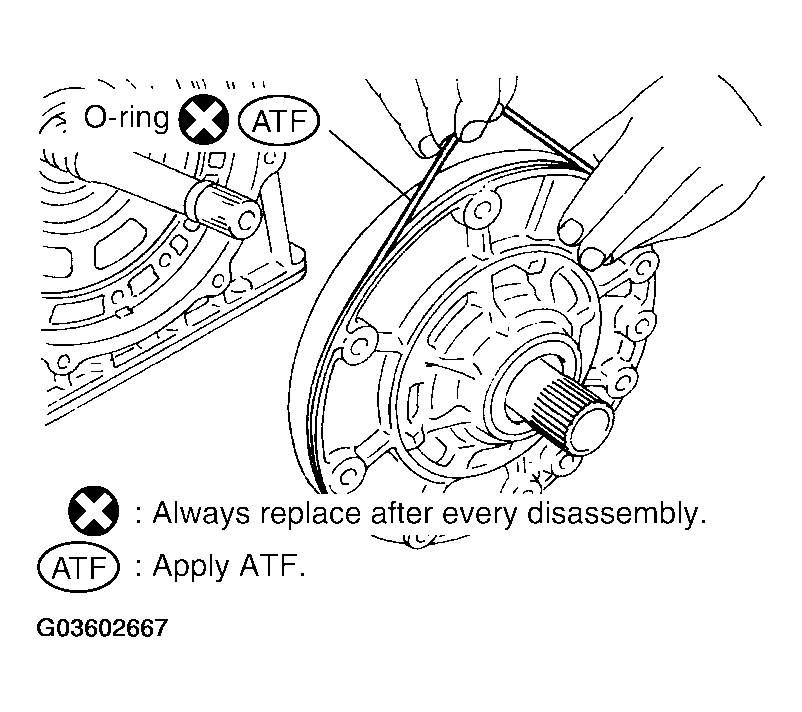

Assembly (2)

: 52 N.m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt:

: 61 N.m (6.2 kg-m, 45 ft-lb)

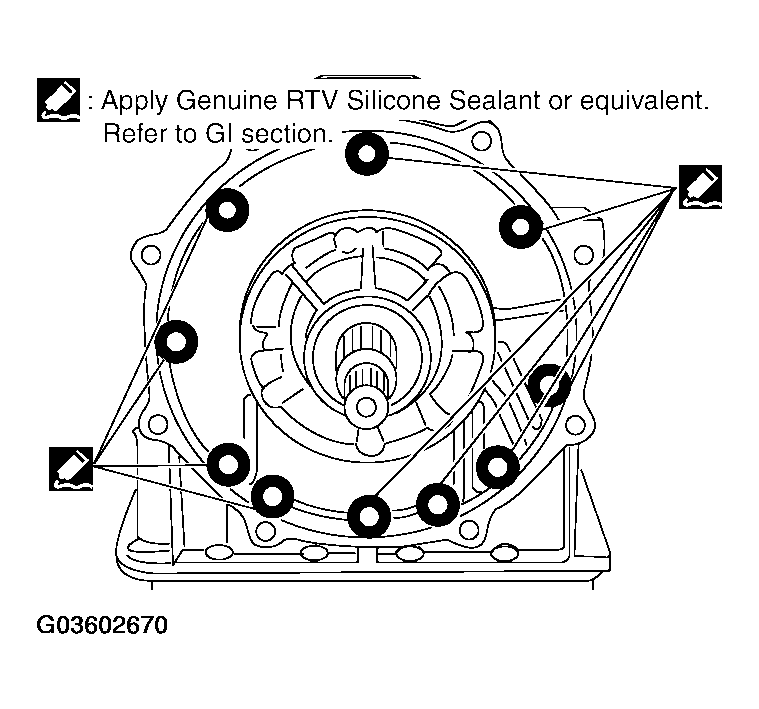

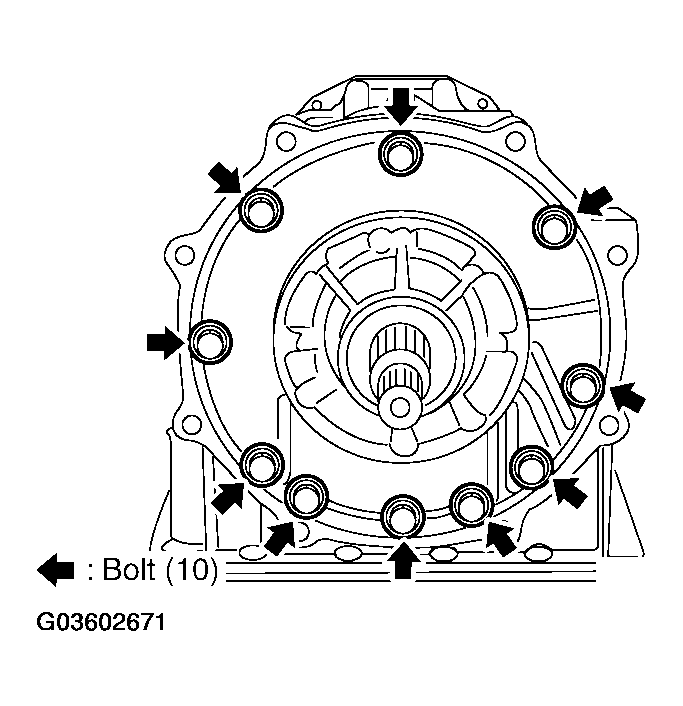

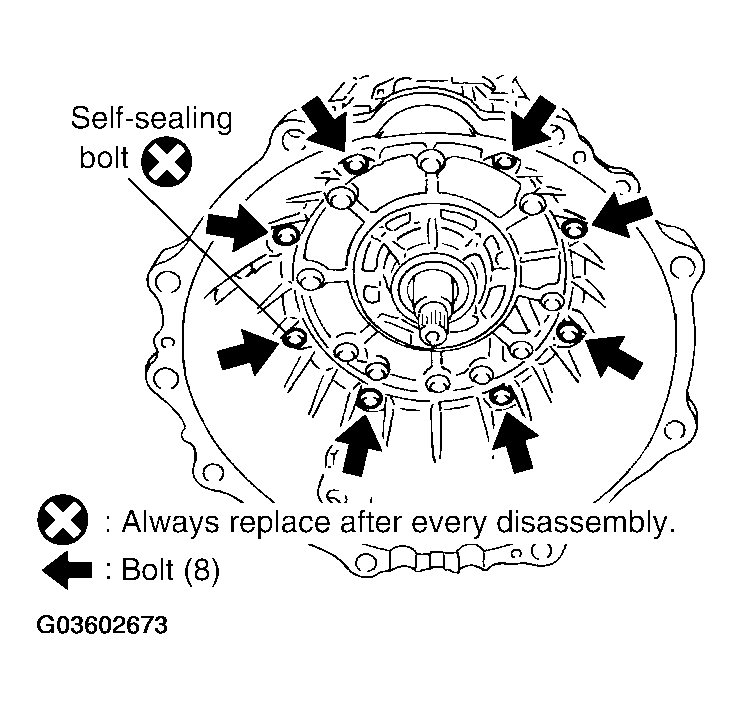

Fig 7: Installing Converter Housing To Transmission Case

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Install A/T fluid temperature sensor 2 to bracket.

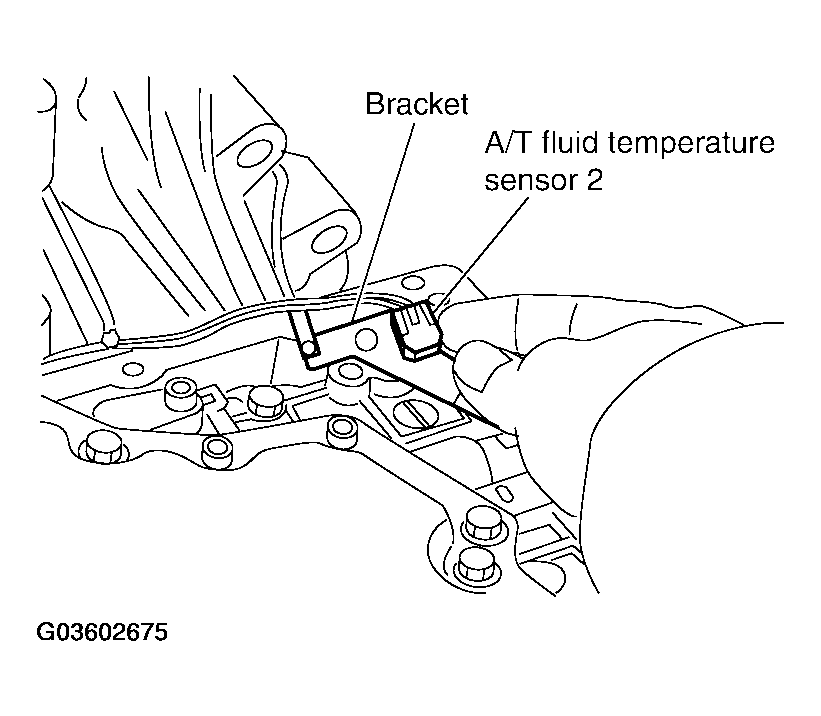

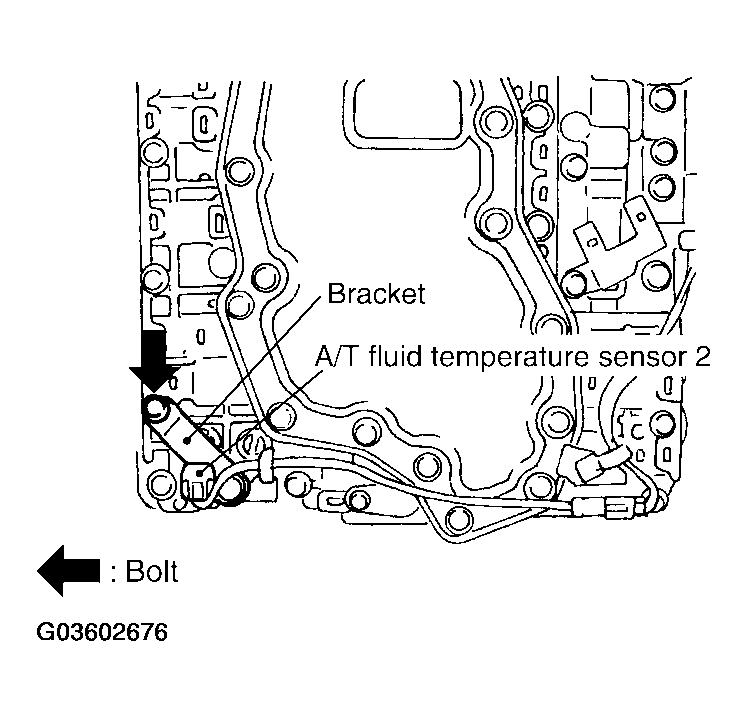

   Fig 9: Installing A/T Fluid Temperature Sensor 2 To Bracket

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM. Tighten A/T fluid temperature sensor 2 mounting bolt to the specified torque. Refer to "COMPONENTS ".
   CAUTION: Adjust bolt hole of bracket to bolt hole of control valve with TCM.

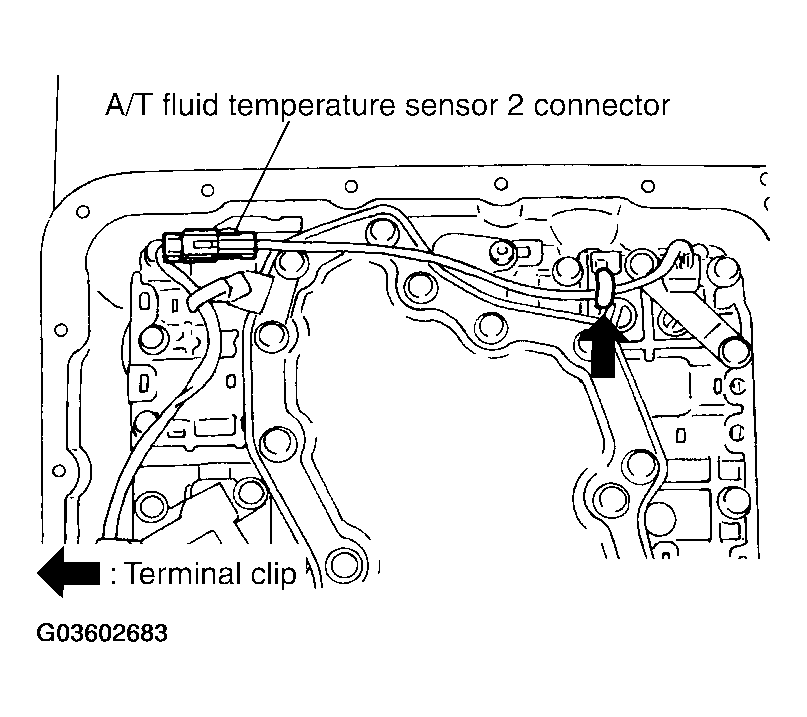

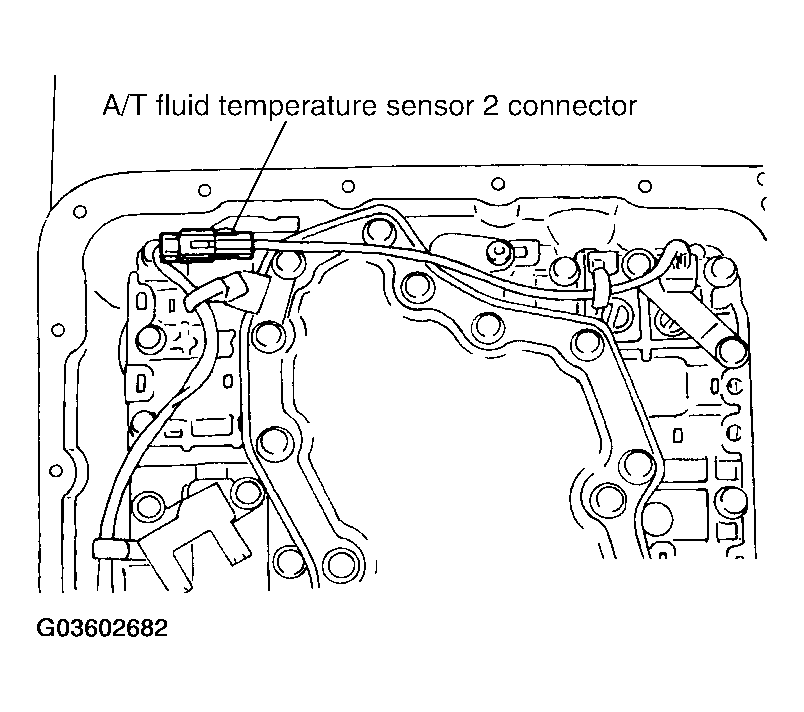

   Fig 10: Installing A/T Fluid Temperature Sensor 2 (With Bracket) In Control Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install O-ring to A/T assembly harness connector.
   CAUTION:

   • Do not reuse O-ring.
   • Apply ATF to O-ring.
   Fig 11: Installing O-Ring To A/T Assembly Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install control valve with TCM in transmission case.
   CAUTION:

   • Make sure that turbine revolution sensor securely installs turbine revolution sensor hole.

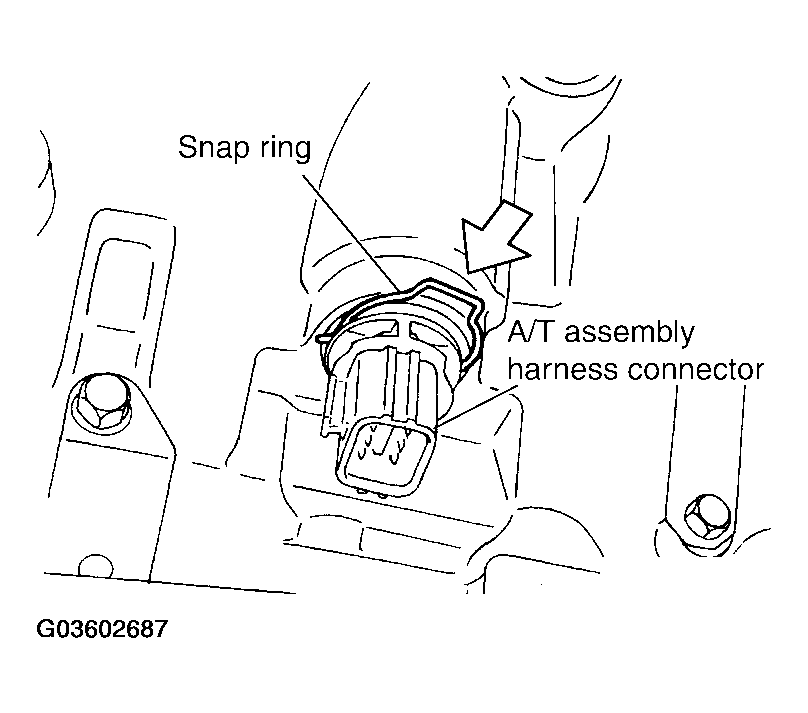

   • Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.

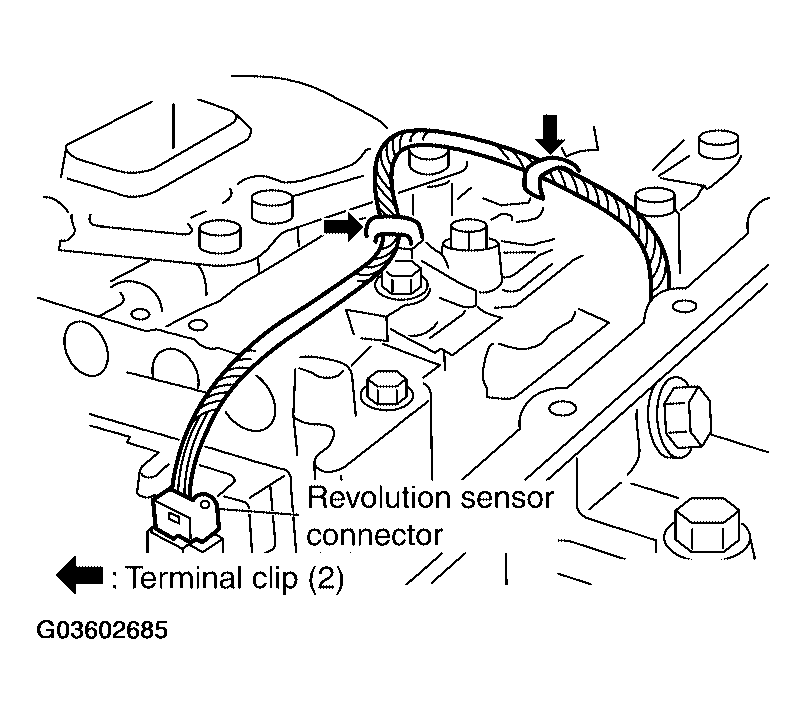

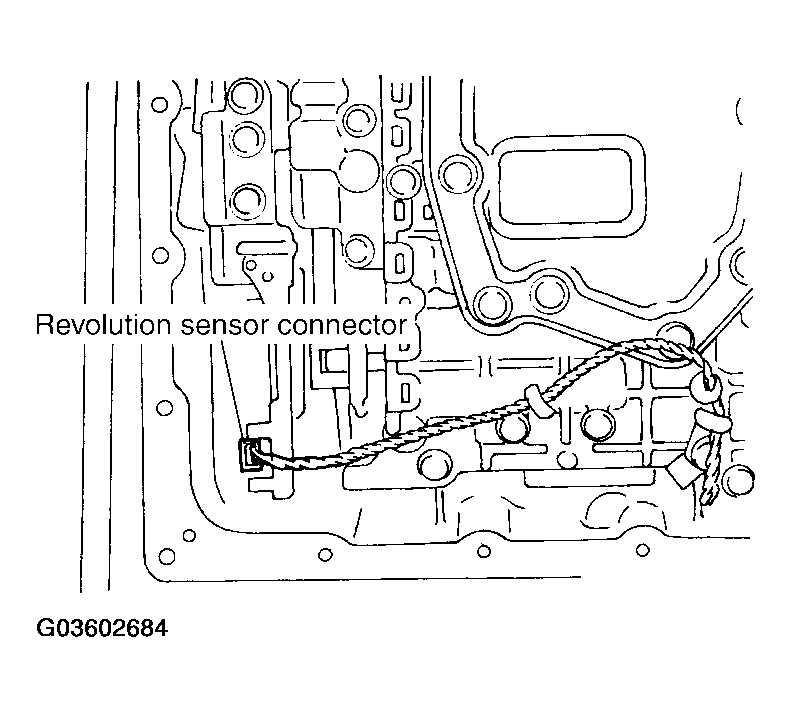

   • Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.

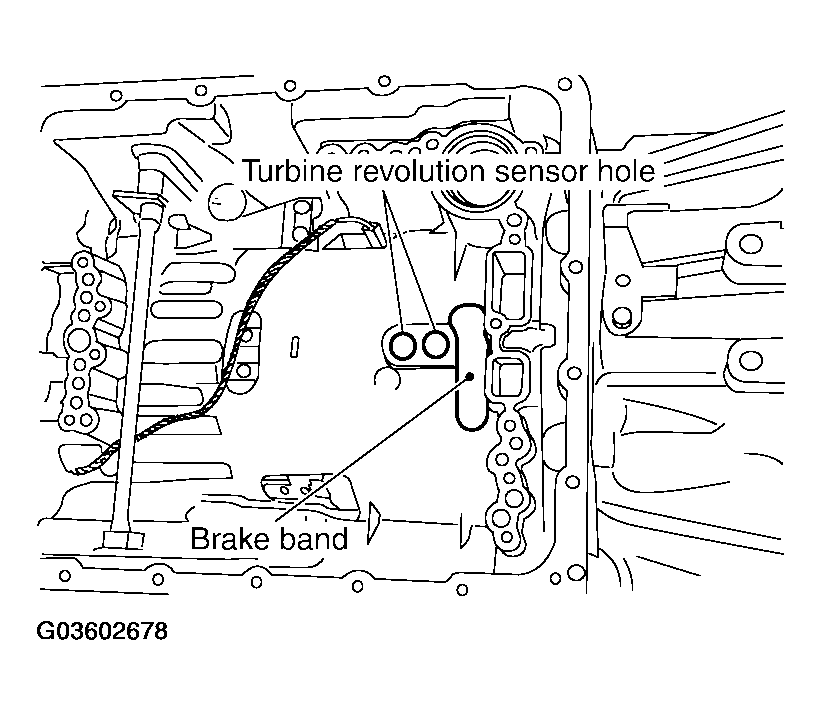

     Fig 12: Identifying Turbine Revolution Sensor Hole

     Courtesy of NISSAN MOTOR CO., U.S.A.
   • Assemble it so that manual valve cutout is engaged with manual plate projection.

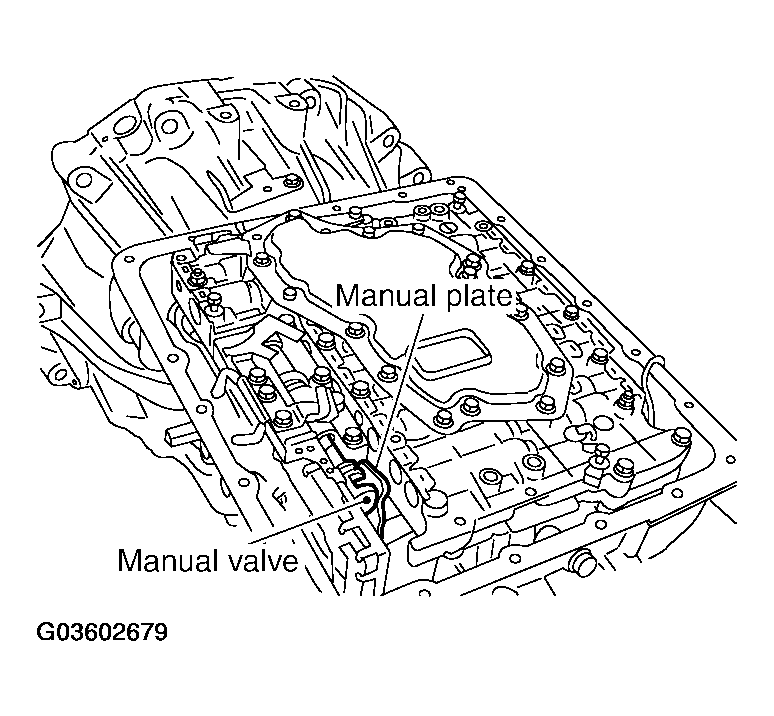

     Fig 13: Engaging Manual Valve Cutout With Manual Plate Projection

     Courtesy of NISSAN MOTOR CO., U.S.A.
5. Install bolts A, B and C to control valve with TCM.
   CONTROL VALVE BOLTS SPECIFICATIONS



   Bolt symbol	Length: mm (in)	Number of bolts
   A	42 (1.65)	5
   B	55 (2.17)	6
   C	40 (1.57)	1

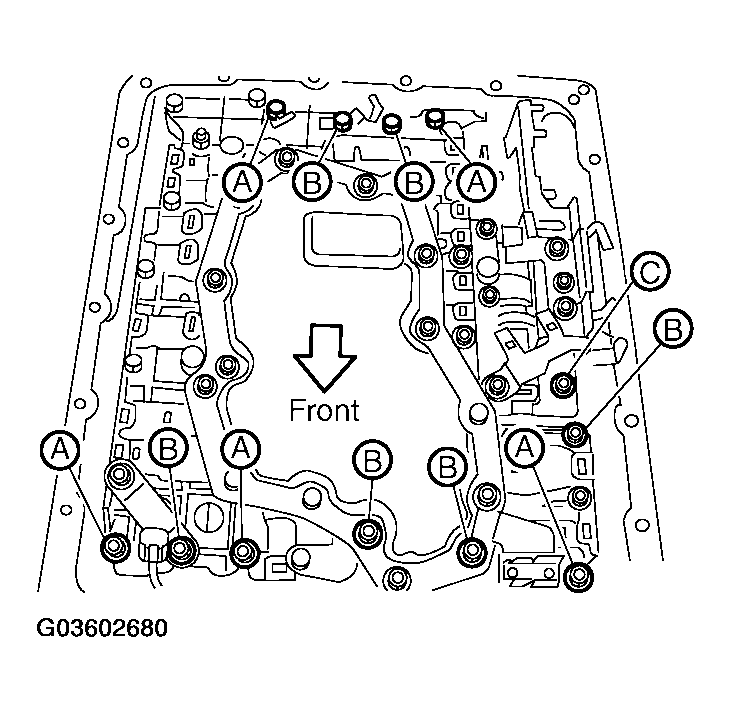

   Fig 14: Installing Bolts A, B And C To Control Valve With TCM

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts.
7. Tighten control valve with TCM bolts to the specified torque. Refer to "COMPONENTS ".

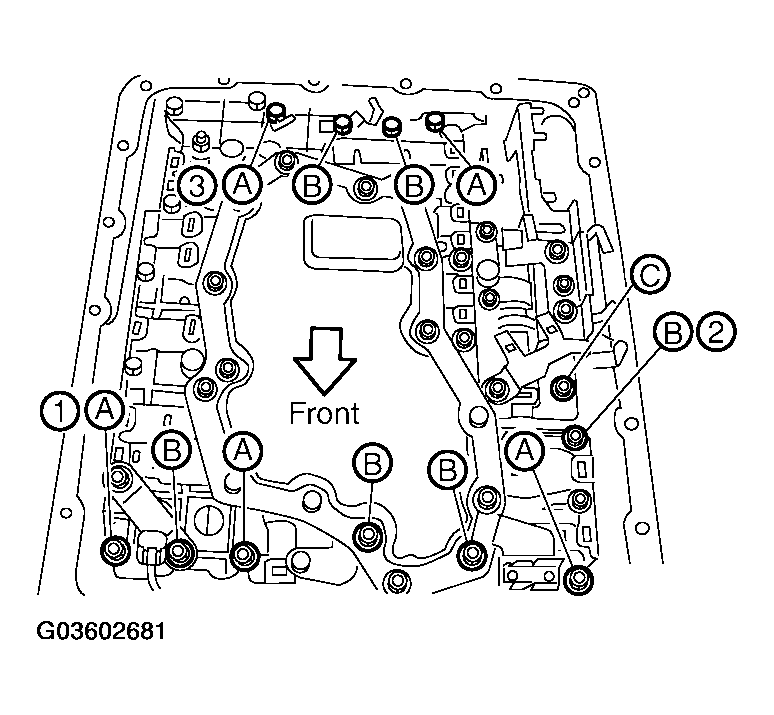

   Fig 15: Identifying Tightening Sequence Of Control Valve Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Install oil pan gasket to oil pan.
   CAUTION:

   • Do not reuse oil pan gasket.
   • Install it in the direction to align hole positions.
   • Complete remove all moisture, oil and old gasket, etc. From the oil pan gasket mounting surfaces.
2. Install oil pan (with oil pan gasket) to transmission case.
   CAUTION:

   • Install it so that drain plug comes to the position as shown in the figure.
   • Be careful not to pinch harnesses.
   • Complete remove all moisture, oil and old gasket, etc. From the oil pan mounting surfaces.
   Fig 23: Installing Oil Pan

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Tighten oil pan bolts to the specified torque in numerical order shown after temporarily tightening them. Refer to "COMPONENTS ".
   CAUTION: Do not reuse oil pan bolts.

1. Pour ATF into torque converter.
   • Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of fluid is required for a new torque converter.
   • When reusing old torque converter, add the same amount of fluid as was drained.
     Fig 25: Pouring ATF Into Torque Converter

     Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install torque converter while aligning notches of torque converter with notches of oil pump.
   CAUTION: Install torque converter while rotating it.

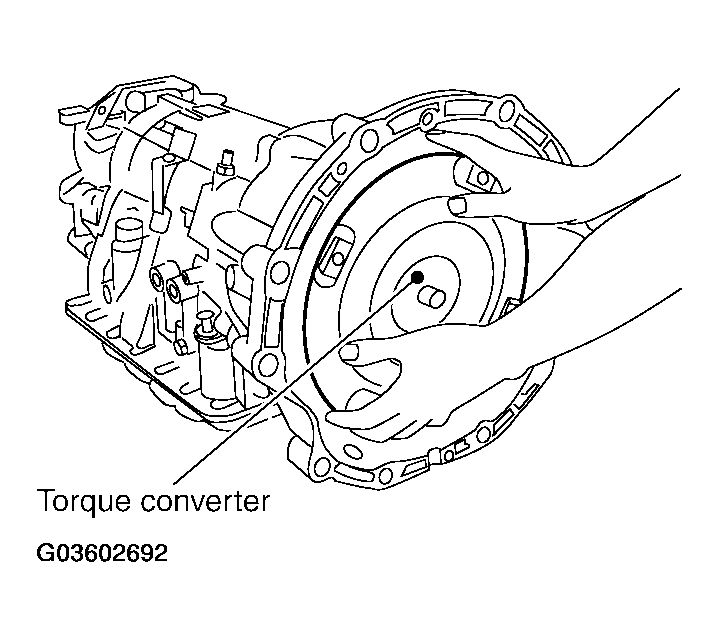

Fig 26: Installing Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.
3. Measure distance "A" to check that torque converter is in proper position.

   Distance "A":

   : 24.0 mm (0.94 in) or more

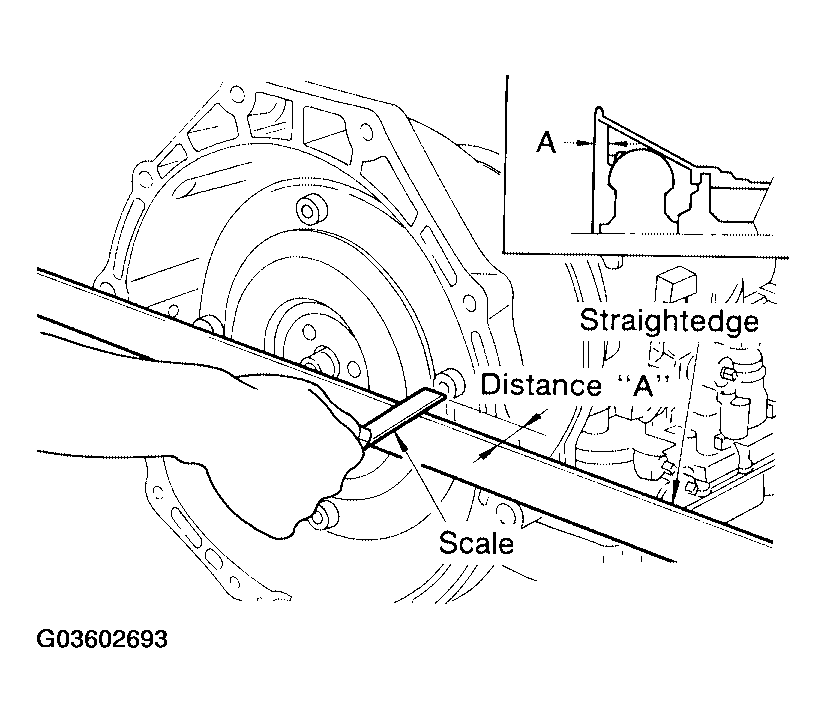

   Fig 27: Checking Torque Converter Dimensions

   Courtesy of NISSAN MOTOR CO., U.S.A.
