Direct Clutch: Disassembly
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

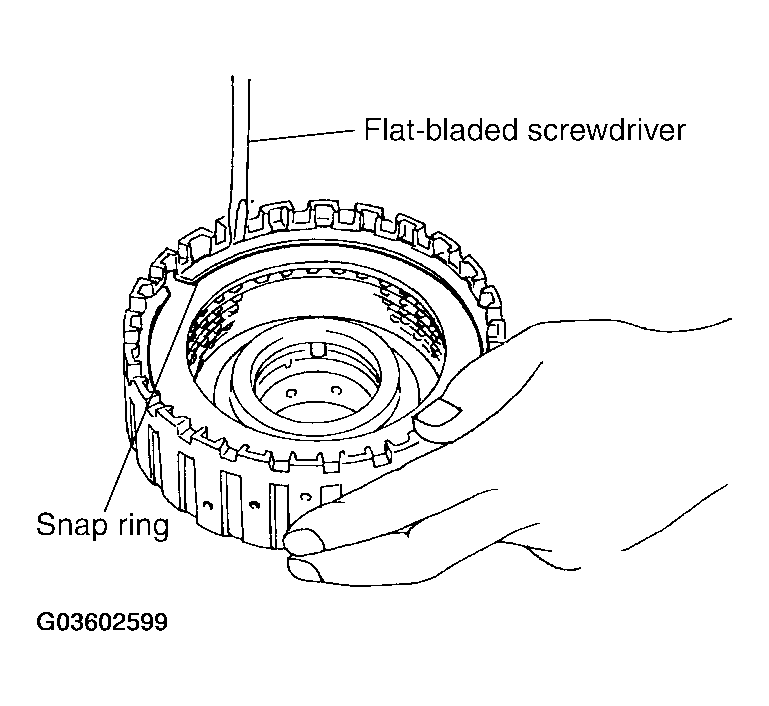

- Using a flat-bladed screwdriver, remove snap rings from direct clutch drum.
- Remove drive plates, driven plates and retaining plate from direct clutch drum.
Courtesy of NISSAN MOTOR CO., U.S.A.
