Removal and Installation of Display Unit
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

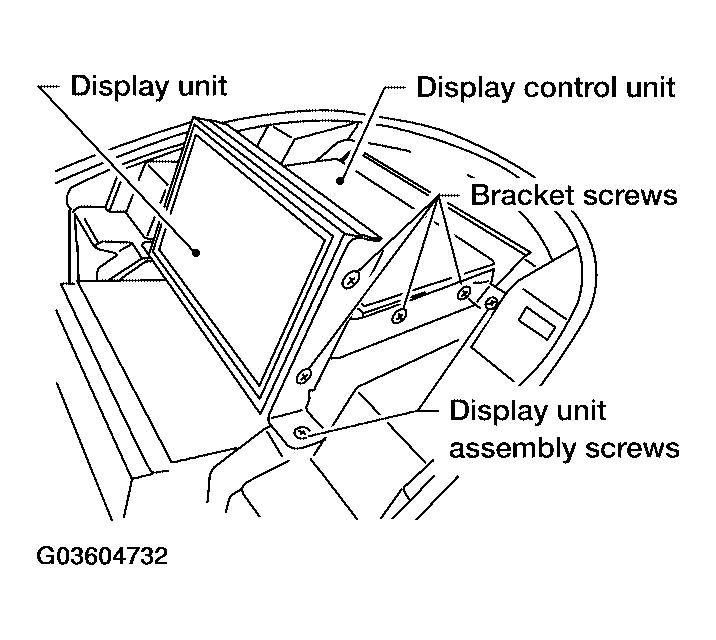

- Remove cluster lid D. Refer to "CLUSTER LID D ".
- Remove the four display unit assembly screws.
- Disconnect connectors and remove display unit assembly.
- Remove screws and remove display unit from brackets.
- Installation is in reverse order of removal.
