Non-Adjustable Pedals

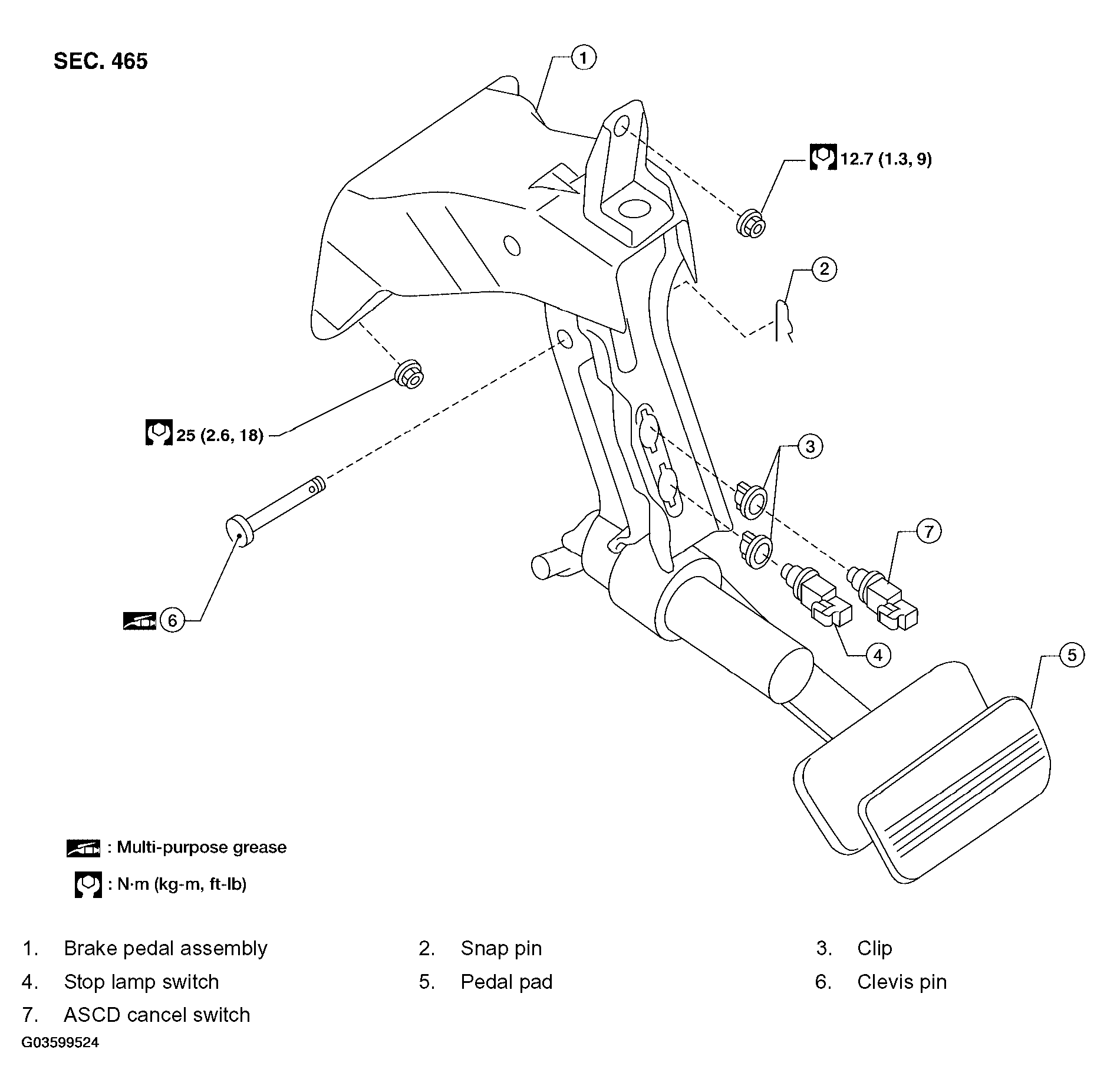

Fig 1: Non-Adjustable Pedals Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Adjustable Pedals

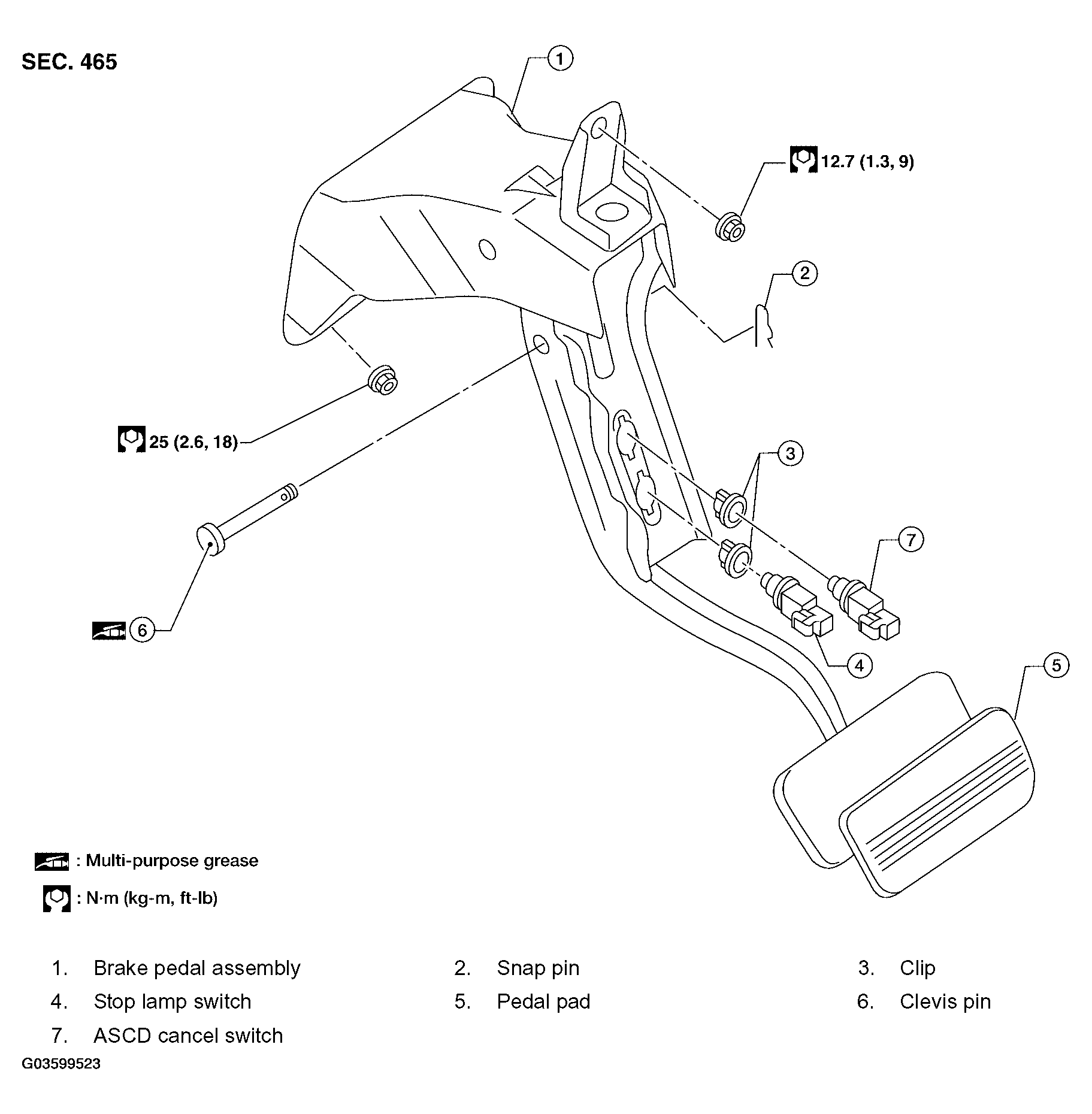

Fig 2: Adjustable Pedals Replacement Components With Torque Specifications
