Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

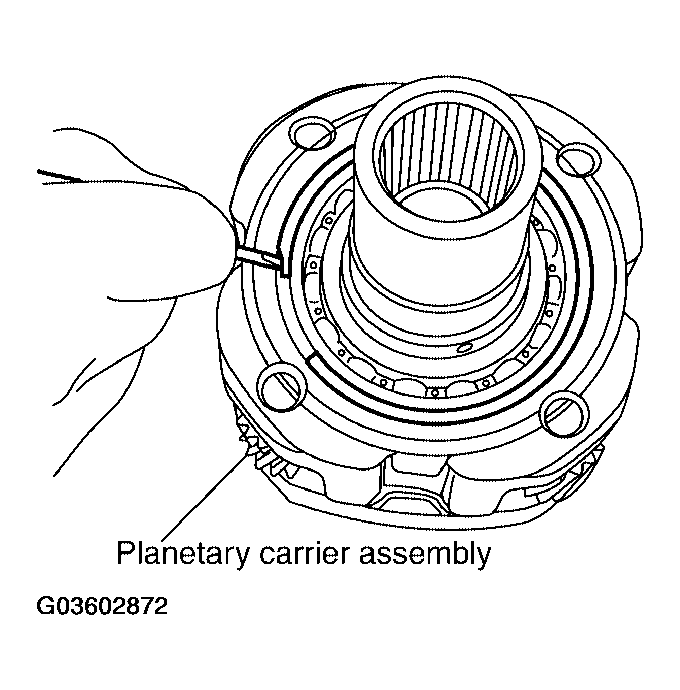

Remove snap ring.
Remove sun gear assembly from planetary carrier assembly, using suitable tool.

Fig 1: Removing Sun Gear Assembly From Planetary Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring from sun gear assembly, using suitable tool.

Fig 2: Removing Snap Ring From Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the carrier bearing from sun gear, using Tools.
Tool number A: ST35300000 (-)

B: ST30021000 (J-22912-01)

Fig 3: Removing Carrier Bearing From Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the needle bearing from sun gear, using Tool.
Tool number: ST33710000 (-)

Fig 4: Removing Needle Bearing From Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the metal bushing from sun gear, using Tools.
Tool number A: ST33710000 (-)

B: ST35325000 (-)

C: ST33290001 (J-34286)

Fig 5: Removing Metal Bushing From Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
