Center Console

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

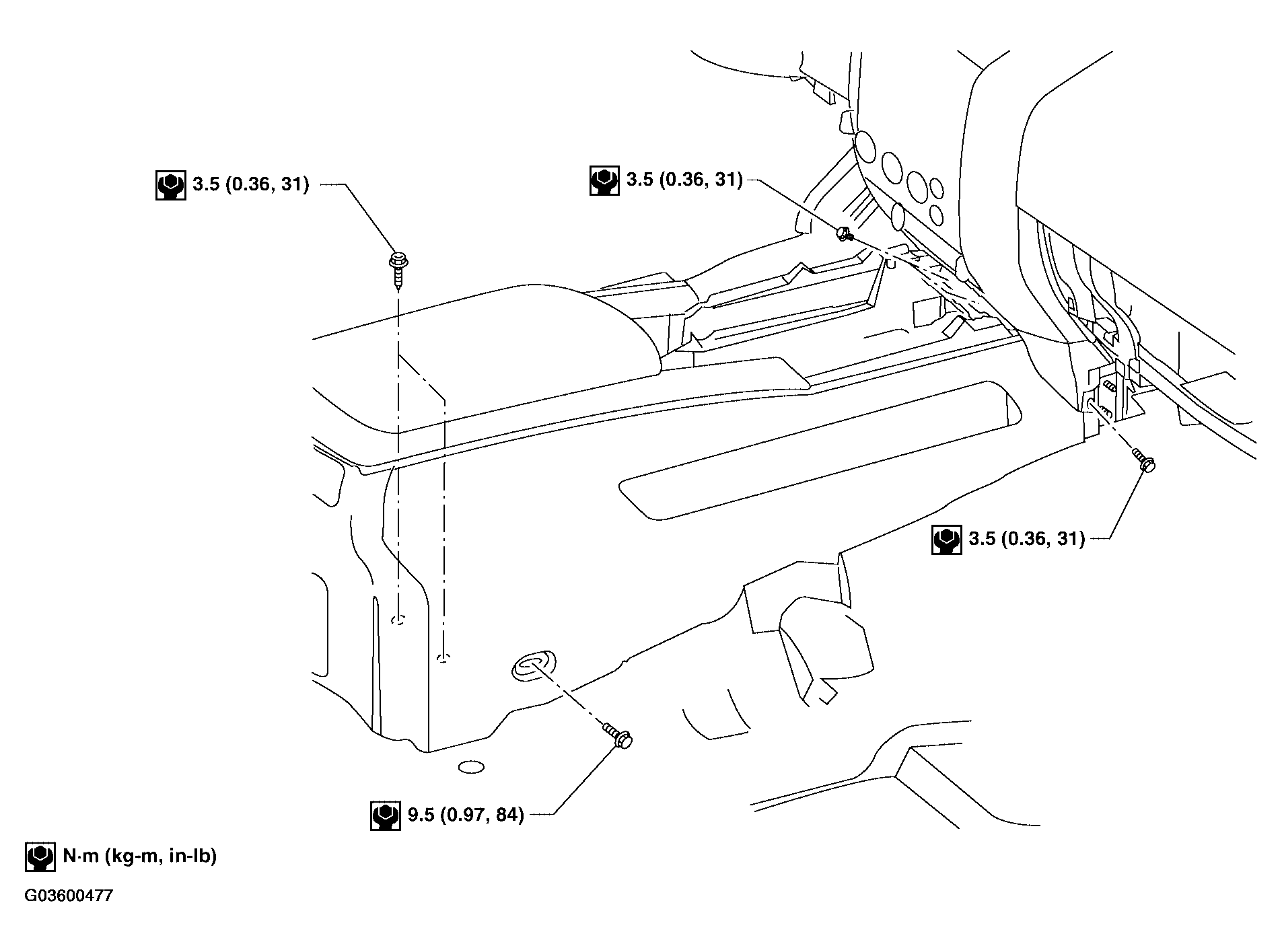

Fig 1: Removing & Installing Center Console With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove the lower instrument panel RH. Refer to LOWER INSTRUMENT PANEL RH AND GLOVE BOX .
Remove the A/T shifter. Refer to CONTROL DEVICE REMOVAL AND INSTALLATION .
Remove screws from center console.
- Disconnect electrical harnesses.
Move front seats forward and remove the center console assembly.

Installation is in the reverse order of removal.
