Door Mirror Remote Control Switch (Changeover Switch) Circuit Check

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    Check the operation on "MIR CHNG SW-R" or "MIR CHNG SW-L" in the DATA MONITOR.

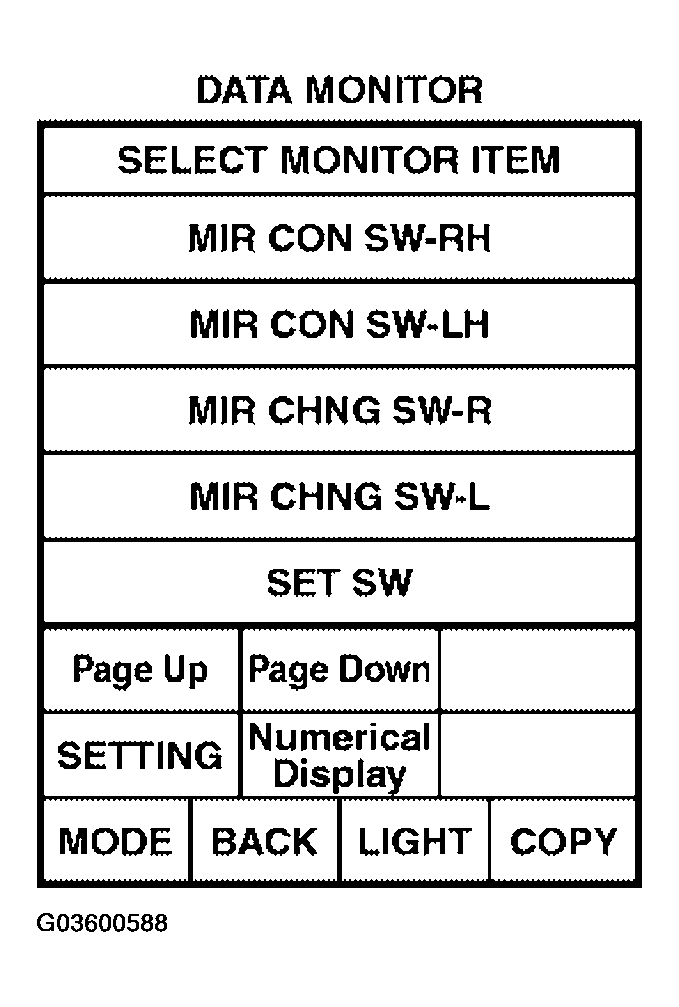

    Fig 1: Identifying Display - Data Monitor
    G03600588Courtesy of NISSAN MOTOR CO., U.S.A.
    MIR CHNG S W-R & MIR CHNG S W-L DATA MONITOR

    Monitor item [OPERATION or UNIT] Contents
    MIR CHNG S W-R "ON/OFF" ON/OFF status judged from the changeover switch (switching to RIGHT) signal is displayed.
    MIR CHNG S W-L "ON/OFF" ON/OFF status judged from the changeover switch (switching to LEFT) signal is displayed.

    Without CONSULT-II

    1. Turn ignition switch to ACC.
    2. Check voltage between automatic drive positioner control unit connector and ground.
    Fig 2: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground
    G03600589Courtesy of NISSAN MOTOR CO., U.S.A.
    VOLTAGE BETWEEN AUTOMATIC DRIVE POSITIONER CONTROL UNIT CONNECTOR AND GROUND REFERENCE

    Connector Terminals (Wire color) Condition Voltage (V) (Approx.)
    (+) (-)
    M33 2 (LG) Ground Changeover switch RIGHT position 0
    Other than above 5
    18 (BR/W) Changeover switch LEFT position 0
    Other than above 5

    OK or NG

    • OK : Door mirror remote control switch (changeover switch) is OK.
    • NG : GO TO 2.
  2. CHECK DOOR MIRROR REMOTE CONTROL SWITCH CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror remote control switch.
    3. Check continuity between automatic drive positioner control unit connector M33 terminals 2, 18 and door mirror remote control switch connector D10 terminals 2, 3.

      2 (LG) - 3 (LG) : Continuity should exist  .

      18 (BR/W) - 2 (BR/W) : Continuity should exist  .

    4. Check continuity between automatic drive positioner control unit connector M33 terminals 2, 18 and ground.

      2 (LG) - Ground : Continuity should not exist  .

      18 (BR/W) - Ground : Continuity should not exist  .

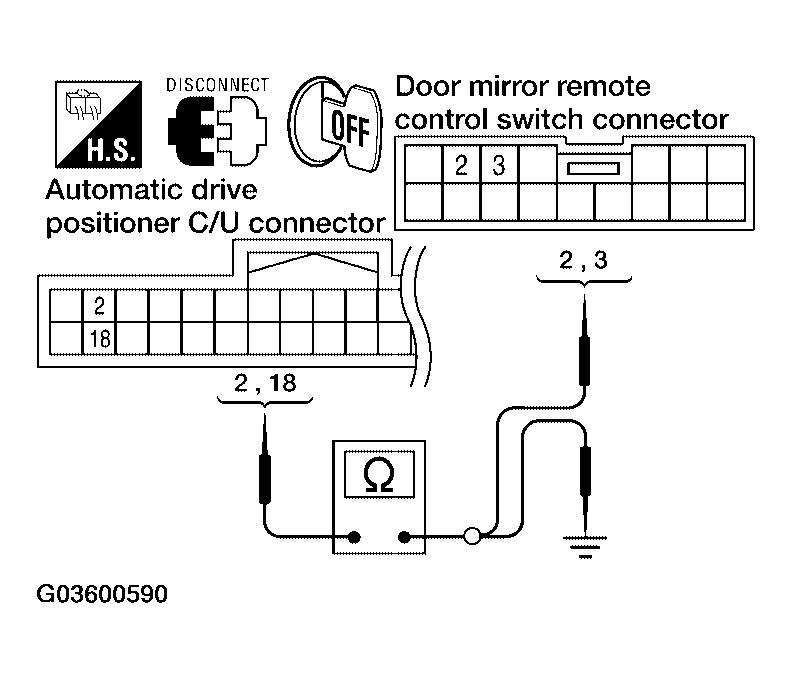

    Fig 3: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M33 Terminals 2, 18 And Door Mirror Remote Control Switch Connector D10 Terminals 2, 3 And Ground
    G03600590Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : GO TO 3.
    • NG : Repair or replace harness.
  3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)

    Check continuity between door mirror remote control switch as follows.

    Fig 4: Checking Continuity Between Door Mirror Remote Control Switch
    G03600591Courtesy of NISSAN MOTOR CO., U.S.A.
    CONTINUITY BETWEEN DOOR MIRROR REMOTE CONTROL SWITCH REFERENCE

    Connector Terminals Condition Continuity
    (+) (-)
    D10 3 13 Changeover switch RIGHT position Yes
    Other than above No
    2 Changeover switch LEFT position Yes
    Other than above No

    OK or NG

    • OK : Check the condition of the harness and the connector.
    • NG : Replace door mirror remote control switch.
