Door Mirror Remote Control Switch (Mirror Switch) Circuit Check

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH) SIGNAL

With CONSULT-II

Check the operation on "MIR CON SW-UP/DN" and "MIR CON SW-RH/LH" in the DATA MONITOR.

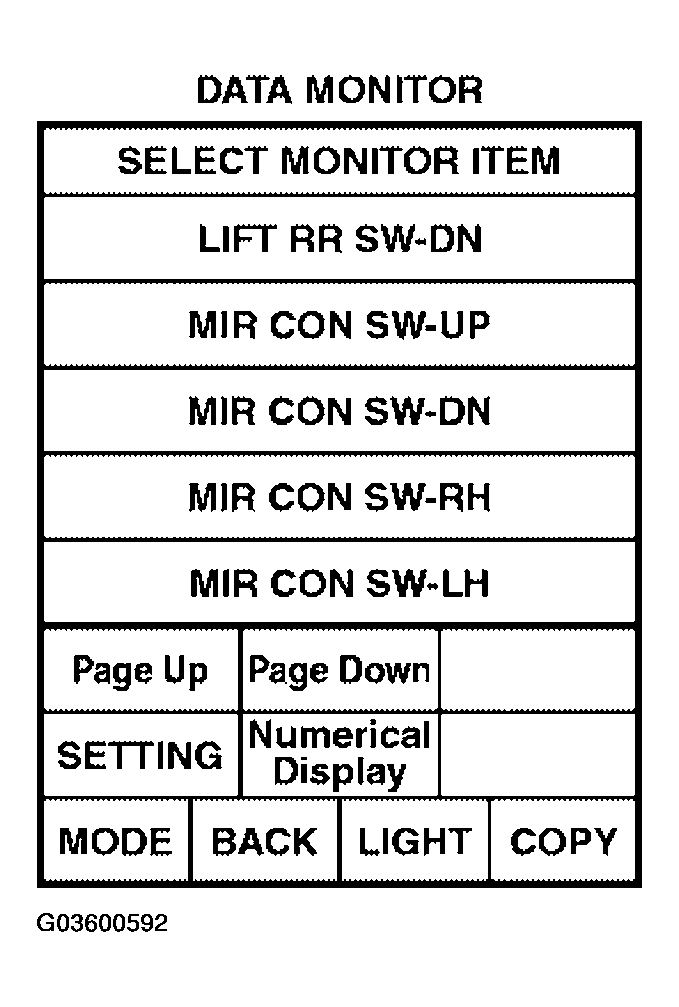

Fig 1: Identifying Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

MIR CON SW DATA MONITOR

Monitor item [OPERATION or UNIT]		Contents
MIR CON SW - UP	"ON/OFF"	ON/OFF status judged from the mirror switch (UP) signal is displayed.
MIR CON SW - DN	"ON/OFF"	ON/OFF status judged from the mirror switch (DOWN) signal is displayed.
MIR CON SW - RH	"ON/OFF"	ON/OFF status judged from the mirror switch (RIGHT) signal is displayed.
MIR CON SW - LH	"ON/OFF"	ON/OFF status judged from the mirror switch (LEFT) signal is displayed.

Without CONSULT-II

Turn ignition switch to ACC.

Check voltage between automatic drive positioner control unit connector and ground.

Fig 2: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

VOLTAGE BETWEEN AUTOMATIC DRIVE POSITIONER CONTROL UNIT CONNECTOR AND GROUND REFERENCE

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
M33	3 (Y/B)	Ground	Mirror switch UP operation	0
	3 (Y/B)		Other than above	5
	4 (V/W)		Mirror switch LEFT operation	0
	4 (V/W)		Other than above	5
	19 (SB)		Mirror switch DOWN operation	0
	19 (SB)		Other than above	5
	20 (GR)		Mirror switch RIGHT operation	0
	20 (GR)		Other than above	5

OK or NG

OK : Door mirror remote control switch (mirror switch) circuit is OK.
NG : GO TO 2.

CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror remote control switch.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 3, 4, 19, 20 and door mirror remote control switch connector D10 terminals 4, 5, 6, 14.
  3 (Y/B) - 6 (Y/B) : Continuity should exist .

  4 (V/W) - 5 (V/W) : Continuity should exist .

  19 (SB) - 14 (SB) : Continuity should exist .

  20 (GR) - 4 (GR) : Continuity should exist .
4. Check continuity between automatic drive positioner control unit connector M33 terminals 3, 4, 19, 20 and ground.
  3 (Y/B) - Ground : Continuity should not exist .

  4 (V/W) - Ground : Continuity should not exist .

  19 (SB) - Ground : Continuity should not exist .

  20 (GR) - Ground : Continuity should not exist .

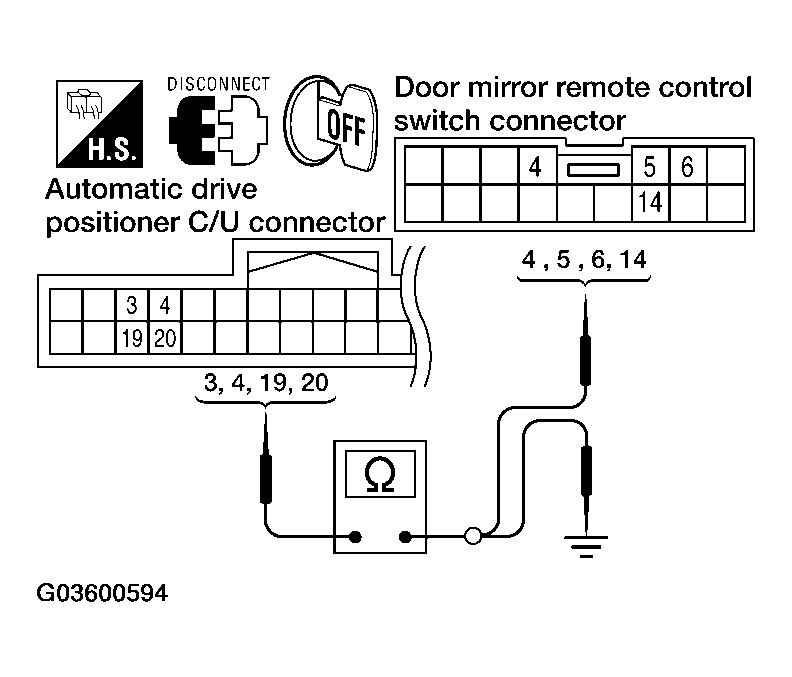

Fig 3: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M33 Terminals 3, 4, 19, 20 And Door Mirror Remote Control Switch Connector D10 Terminals 4, 5, 6, 14 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : GO TO 3.
- NG : Repair or replace harness.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH)

Check continuity between door mirror remote control switch as follows.

Fig 4: Checking Continuity Between Door Mirror Remote Control Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

CONTINUITY BETWEEN DOOR MIRROR REMOTE CONTROL SWITCH REFERENCE

Connector	Terminals		Switch condition	Continuity
D10	4	13	Mirror switch RIGHT operation	Yes
	4		Other than above	No
	5		Mirror switch LEFT operation	Yes
	5		Other than above	No
	6		Mirror switch UP operation	Yes
	6		Other than above	No
	14		Mirror switch DOWN operation	Yes
	14		Other than above	No

OK or NG

OK : Check the condition of the harness and connector.
NG : Replace door mirror remote control switch.
