Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.

Remove front grille. Refer to "REMOVAL AND INSTALLATION ".
Disconnect the crash zone sensor harness connector.
Remove crash zone sensor nuts.

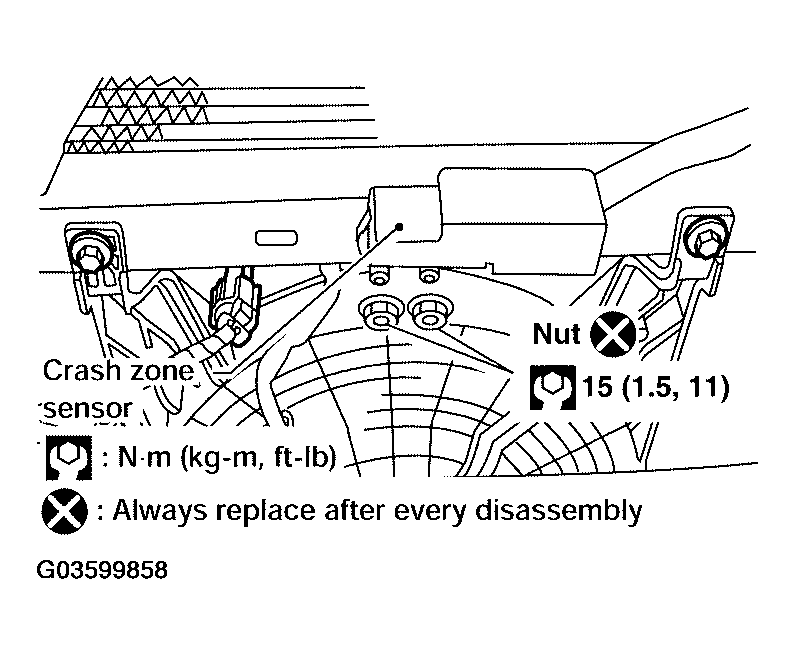

Fig 1: Removing Crash Zone Sensor Nuts With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Replace crash zone sensor if it has been dropped or sustained an impact.
Do not disassemble crash zone sensor.
