Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

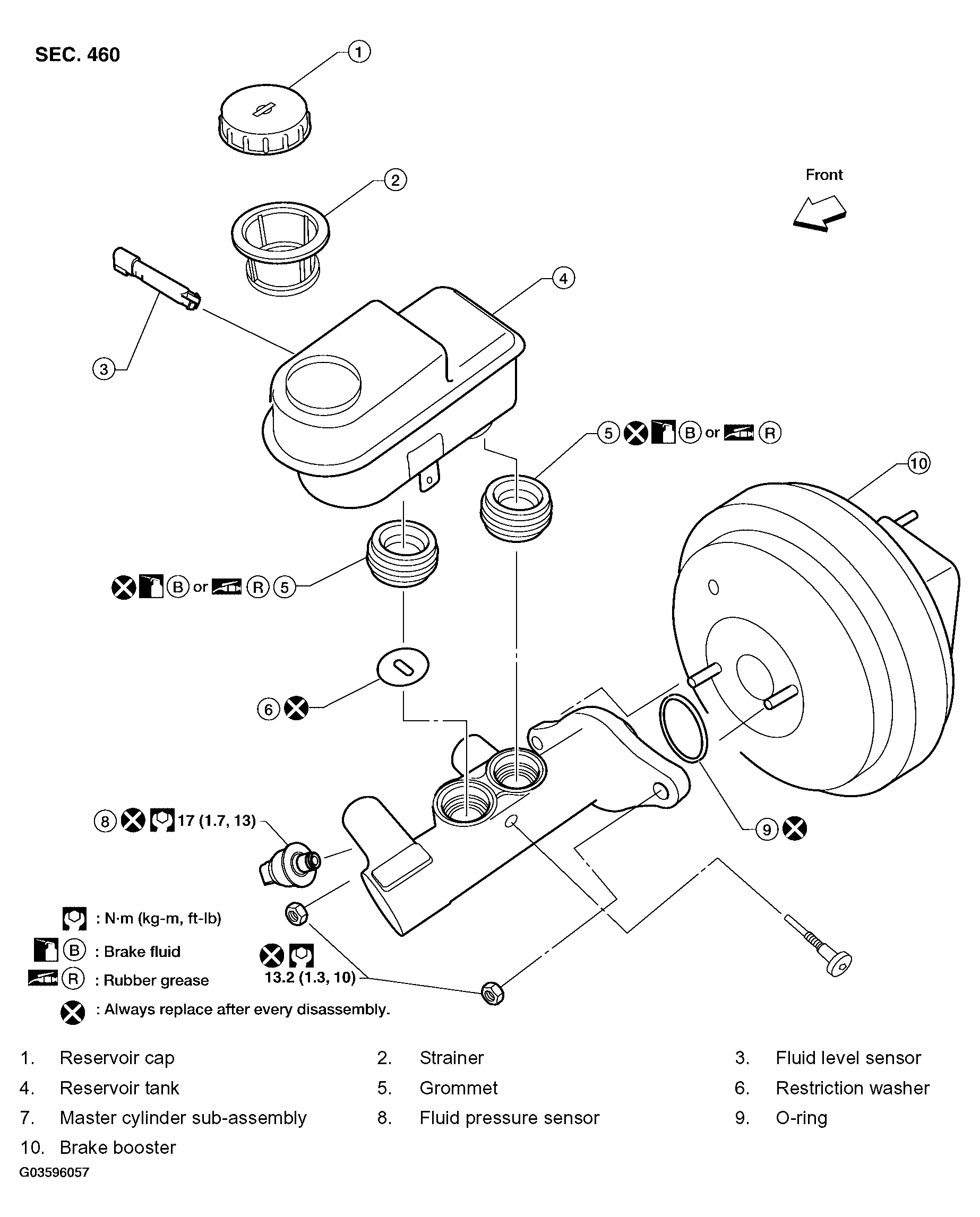

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications
G03596057Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Be careful not to splash brake fluid on painted areas; it way cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
